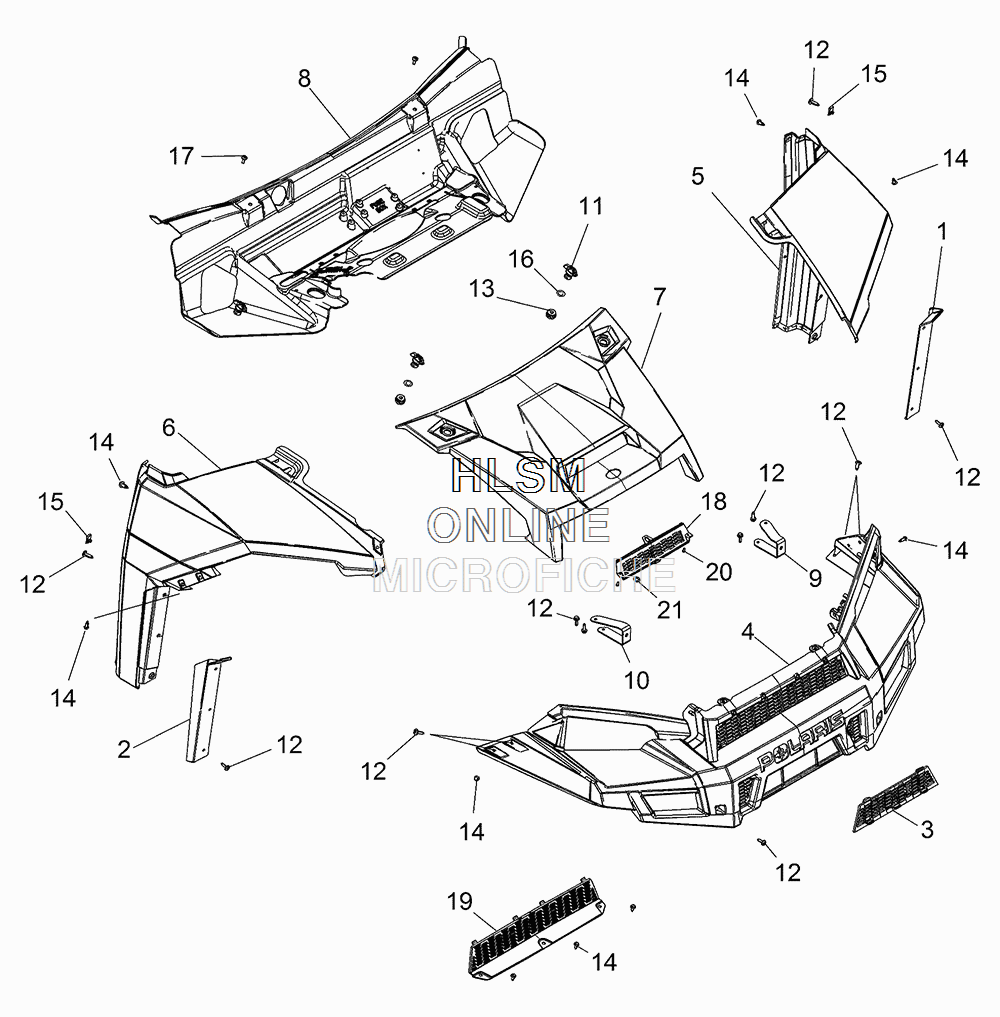

HOOD AND FRONT FASCIA для Polaris RANGER XP 900 (SOLAR RED) [R16RTA87A4] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    5439011-070 FENDER, FLARE, FRONT, LH, BLACK
    FENDER, FLARE, FRONT, LH, BLACK
  • 2
    5439012-070 FENDER, FLARE, FRONT, RH, BLACK
    FENDER, FLARE, FRONT, RH, BLACK
  • 3
    5439016-070 SCREEN BUMPER, UPPER, BLACK
    SCREEN BUMPER, UPPER, BLACK
  • 4
    5439018-070 FASCIA, FRONT, BLACK
    FASCIA, FRONT, BLACK
  • 5
    5439009-342 FENDER, FRONT, LH, SOLAR RED ((A87A4) (E87A4))
    FENDER, FRONT, LH, SOLAR RED ((A87A4) (E87A4))
  • 6
    5439010-342 FENDER, FRONT, RH, SOLAR RED ((A87A4) (E87A4))
    FENDER, FRONT, RH, SOLAR RED ((A87A4) (E87A4))
  • 7
    5452379-342 HOOD, CENTER ACCESS, SOLAR RED ((A87A4) (E87A4))
    HOOD, CENTER ACCESS, SOLAR RED ((A87A4) (E87A4))
  • 8
    5439025-070 LINER, HOOD, BLACK
    LINER, HOOD, BLACK
  • 9
    5258206 BRACKET, BUMPER, FRONT, UPPER, LH
    BRACKET, BUMPER, FRONT, UPPER, LH
  • 10
    5258207 BRACKET, BUMPER, FRONT, UPPER, RH
    BRACKET, BUMPER, FRONT, UPPER, RH
  • 11
    7081730 LATCH, 1/4 TURN
    LATCH, 1/4 TURN
  • 12
    7519650 SCREW
    SCREW
  • 13
    5413428 GROMMET, LATCH
    GROMMET, LATCH
  • 14
    7661855 RIVET
    RIVET
  • 15
    7081305 CLIP, U SPEED NUT
    CLIP, U SPEED NUT
  • 16
    7555919 WASHER
    WASHER
  • 17
    7518529 SCREW
    SCREW
  • 18
    5452380 COVER-HOOD GRILLE
    COVER-HOOD GRILLE
  • 20
    7519091 SCREW
    SCREW
  • 21
    7710702 RETAINER-BOLT,PUSHNUT,M10
    RETAINER-BOLT,PUSHNUT,M10
