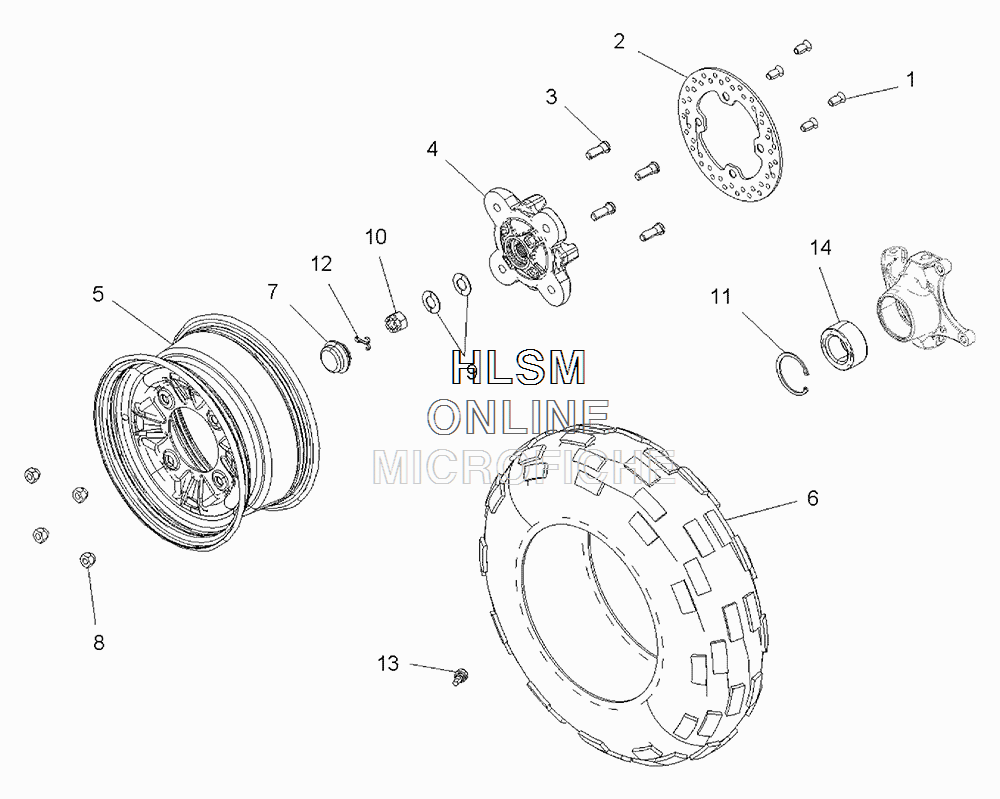

WHEELS - FRONT для Polaris RANGER XP 900 (SAGE GREEN) [R16RTA87A1] - 2016 года выпуска
-
№АртикулНазвание
-
17518978 SCREWSCREW
-
25254999 DISC, BRAKE, FRONTDISC, BRAKE, FRONT
-
37519753 STUD, WHEELSTUD, WHEEL
-
45137387-067 HUB, WHEEL, FRONT, BLACKHUB, WHEEL, FRONT, BLACK
-
51521606-067 RIM, FRONT, BLACK (A87A1) (A87A4) (A87A9) (E87A1) (E87A4)RIM, FRONT, BLACK (A87A1) (A87A4) (A87A9) (E87A1) (E87A4)
-
65413961 TIRE, 25X10-12 (A87A1) (A87A4) (A87A9) (E87A1) (E87A4)TIRE, 25X10-12 (A87A1) (A87A4) (A87A9) (E87A1) (E87A4)
-
75413215 CAP, HUB, DUSTCAP, HUB, DUST
-
87547660 NUT, LUGNUT, LUG
-
97555796 WASHER, CONEWASHER, CONE
-
107547337 NUT, CASTLENUT, CASTLE
-
117710440 RING, RETAINING, INTERNALRING, RETAINING, INTERNAL
-
127661404 PIN, COTTERPIN, COTTER
-
131525017 VALVE, RIMVALVE, RIM
-
143514699 BEARING, BALL, SEALEDBEARING, BALL, SEALED
