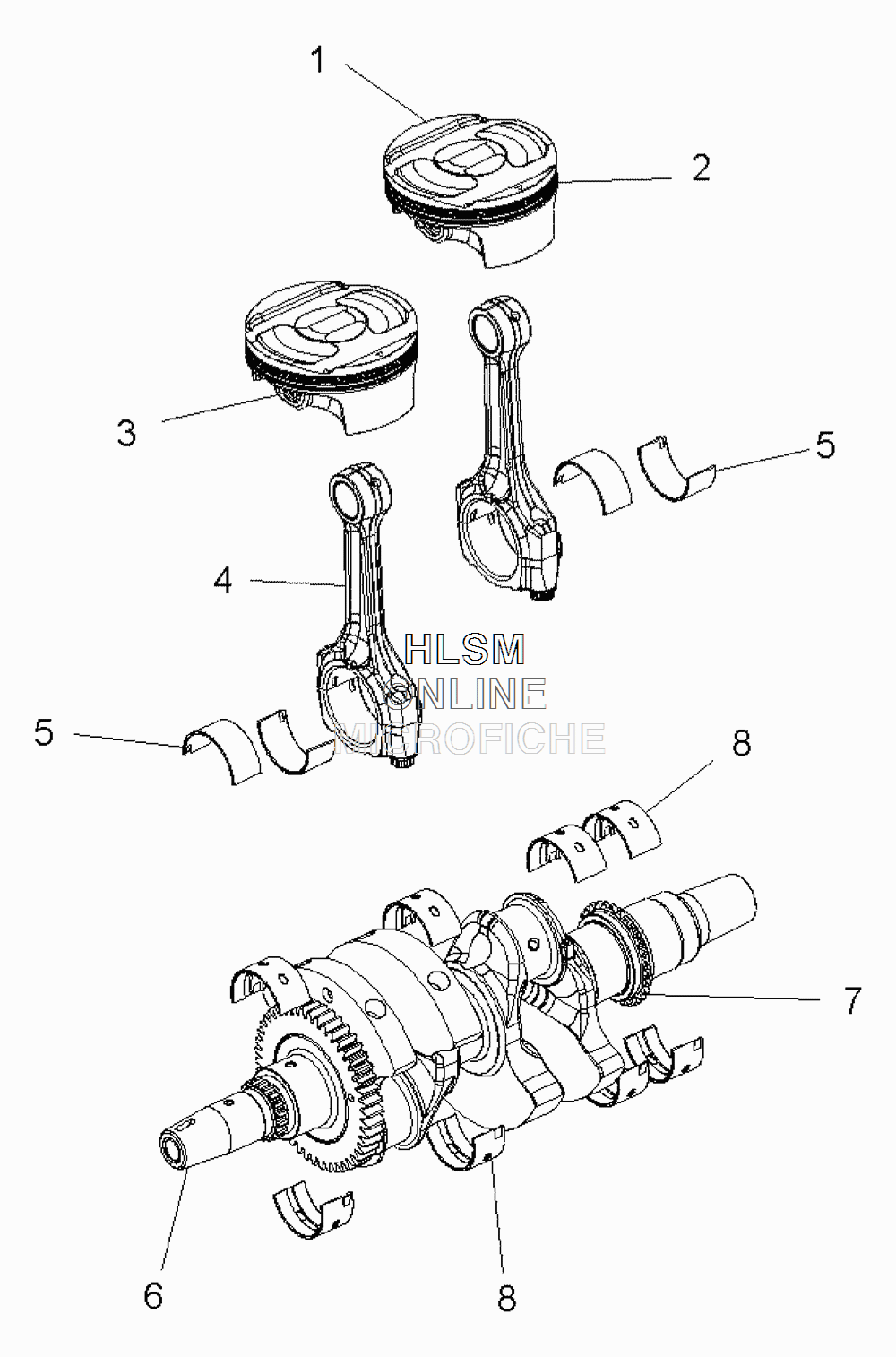

CRANKSHAFT AND PISTON для Polaris RANGER XP 900 (BLUE FIRE (TRAIL EDITION) [R16RTU87AB] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    2205244 KIT, PISTON (INCL. 1 PISTON, 1 PIN, 1 RING SET, 2 CLIPS)
    KIT, PISTON (INCL. 1 PISTON, 1 PIN, 1 RING SET, 2 CLIPS)
  • 2
    2205245 KIT, PISTON RINGS (INCL. 1 TOP, 1 MIDDLE AND 1 BOTTOM RING)
    KIT, PISTON RINGS (INCL. 1 TOP, 1 MIDDLE AND 1 BOTTOM RING)
  • 3
    3022358 PIN, PISTON
    PIN, PISTON
  • 3
    3022413 RING, RETAINING
    RING, RETAINING
  • 4
    1204473 ASM., CONNECTING ROD, FORGED (INCL. ROD, CAP, 2 BOLTS)
    ASM., CONNECTING ROD, FORGED (INCL. ROD, CAP, 2 BOLTS)
  • 4
    7519310 SCREW, CONNECTING ROD
    SCREW, CONNECTING ROD
  • 5
    3514663-001 BEARING, CONNECTING ROD, WHITE
    BEARING, CONNECTING ROD, WHITE
  • 5
    3514663-002 BEARING, CONNECTING ROD, BLUE
    BEARING, CONNECTING ROD, BLUE
  • 5
    3514663-003 BEARING, CONNECTING ROD, GREEN
    BEARING, CONNECTING ROD, GREEN
  • 5
    3514663-004 BEARING, CONNECTING ROD, YELLOW
    BEARING, CONNECTING ROD, YELLOW
  • 6
    3022793 ASM., CRANKSHAFT (INCL. CRANK, 7)
    ASM., CRANKSHAFT (INCL. CRANK, 7)
  • 8
    3514662-001 BEARING, MAIN, WHITE
    BEARING, MAIN, WHITE
  • 8
    3514662-002 BEARING, MAIN, BLUE
    BEARING, MAIN, BLUE
  • 8
    3514662-003 BEARING, MAIN, GREEN
    BEARING, MAIN, GREEN
  • 8
    3514662-004 BEARING, MAIN, YELLOW
    BEARING, MAIN, YELLOW
  • 8
    3514662-005 BEARING, MAIN, RED
    BEARING, MAIN, RED
