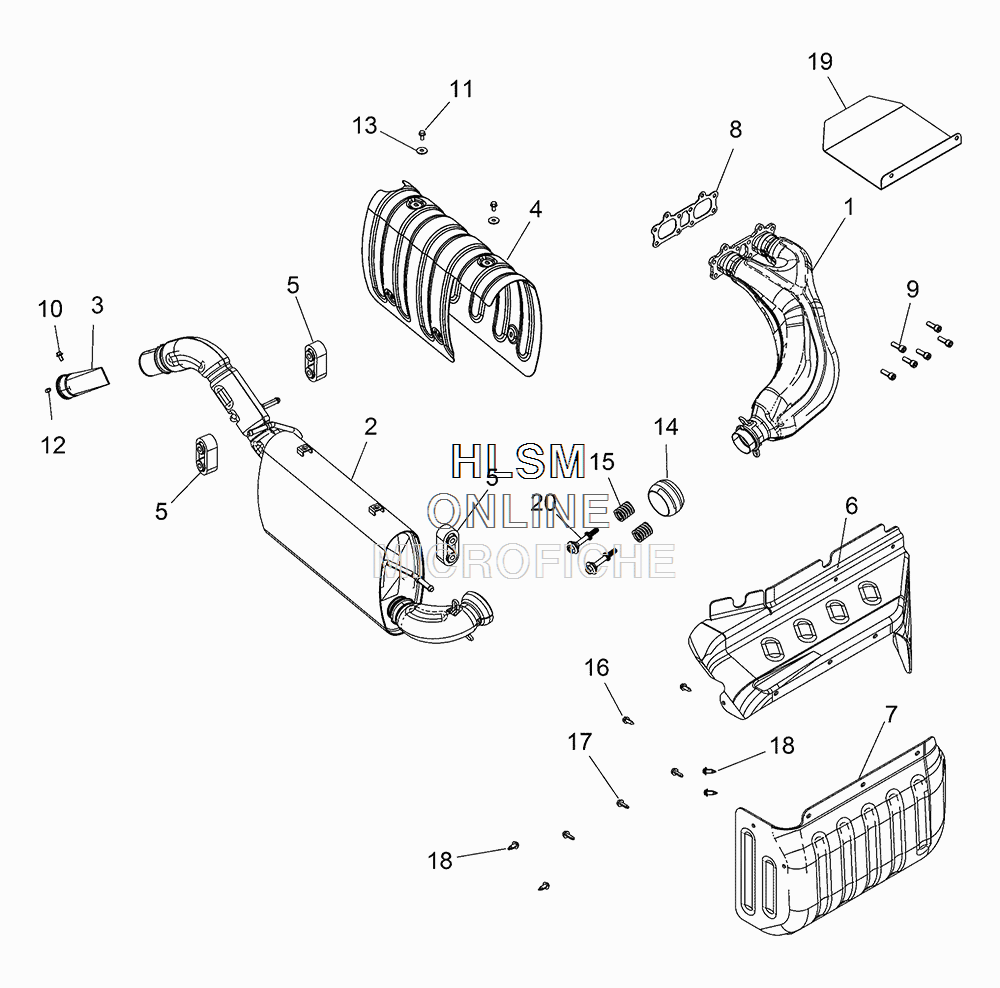

EXHAUST для Polaris RANGER CREW 900-6 EPS (VELOCITY BLUE) [R16RVE87AV] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    1262350 SHIELD, TOP, HEADPIPE
    SHIELD, TOP, HEADPIPE
  • 1
    1262351 SHIELD, BOTTOM, HEADPIPE
    SHIELD, BOTTOM, HEADPIPE
  • 1
    1262693 ASM., HEADPIPE (INCL. HEADPIPE AND ALL SHIELDS AND CLAMPS)
    ASM., HEADPIPE (INCL. HEADPIPE AND ALL SHIELDS AND CLAMPS)
  • 1
    7081156 CLAMP
    CLAMP
  • 2
    1262694 ASM., SILENCER (INCL. 3-5, 10-13, ALL SHIELDS AND CLAMPS)
    ASM., SILENCER (INCL. 3-5, 10-13, ALL SHIELDS AND CLAMPS)
  • 3
    1262123 ARRESTOR, SPARK
    ARRESTOR, SPARK
  • 4
    5257719 SHIELD, SILENCER
    SHIELD, SILENCER
  • 5
    5438965 MOUNT, ISOLATOR
    MOUNT, ISOLATOR
  • 6
    5813762 SHIELD, HEAT, FOIL, TOP
    SHIELD, HEAT, FOIL, TOP
  • 7
    5813763 SHIELD, HEAT, FOIL, BOTTOM
    SHIELD, HEAT, FOIL, BOTTOM
  • 8
    3610184 GASKET, EXHAUST SEAL
    GASKET, EXHAUST SEAL
  • 9
    7518984 SCREW
    SCREW
  • 10
    7517257 SCREW
    SCREW
  • 11
    7518490 SCREW
    SCREW
  • 12
    7547120 NUT
    NUT
  • 13
    7555935 WASHER
    WASHER
  • 14
    3610248 GASKET, DOUBLE SPHERICAL, 2 IN.
    GASKET, DOUBLE SPHERICAL, 2 IN.
  • 15
    7044274 SPRING-SPHERICAL,EXHAUST
    SPRING-SPHERICAL,EXHAUST
  • 16
    7520079 STUD-SPHERICAL,EXHAUST
    STUD-SPHERICAL,EXHAUST
  • 17
    7518529 SCREW
    SCREW
  • 18
    7661855 RIVET
    RIVET
  • 19
    5261192 BRACKET, BOX CLOSE OFF
    BRACKET, BOX CLOSE OFF
  • 20
    4013979 SENSOR-OXYGEN
    SENSOR-OXYGEN
