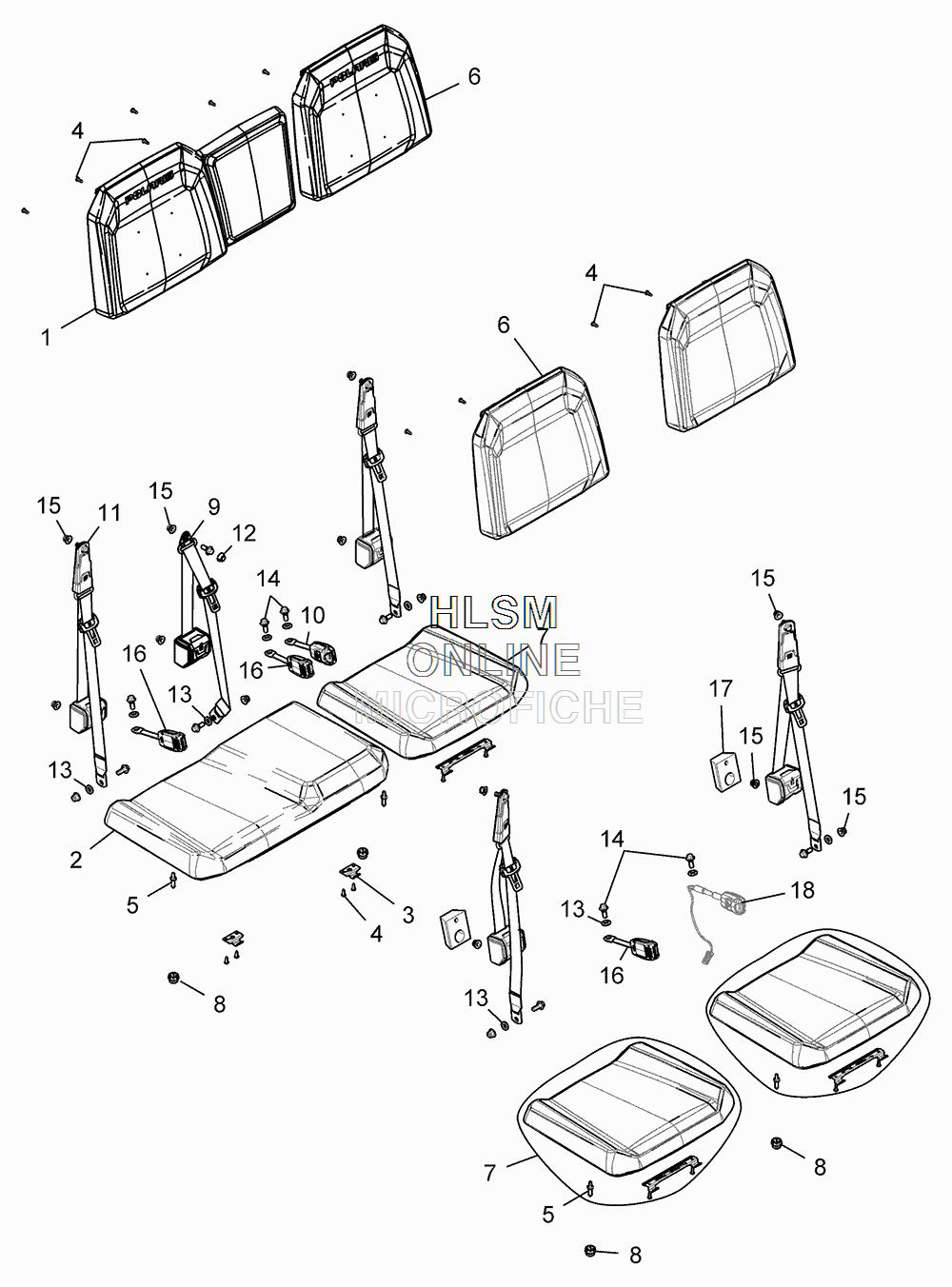

SEAT- REAR для Polaris RANGER CREW 900-6 EPS (SUNSET RED) [R16RVE87AS] - 2016 года выпуска

№

Артикул

Название
1

2685140 ASM., SEAT, BACK, 60 - (BLACK/SUNSET RED) - (E87AS)

ASM., SEAT, BACK, 60 - (BLACK/SUNSET RED) - (E87AS)
1

2685345 COVERING-BACK 60 - (BLACK/SUNSET RED) - (E87AS)

COVERING-BACK 60 - (BLACK/SUNSET RED) - (E87AS)
2

2685141 ASM., SEAT, BOTTOM, 60 - (BLACK/SUNSET RED) - (E87AS) (INCL. 3, QTY 4 OF 4,5)

ASM., SEAT, BOTTOM, 60 - (BLACK/SUNSET RED) - (E87AS) (INCL. 3, QTY 4 OF 4,5)
2

2685350 COVERING-BTM 60 - (BLACK/SUNSET RED) - (E87AS)

COVERING-BTM 60 - (BLACK/SUNSET RED) - (E87AS)
3

5256836 BRACKET, SEAT HINGE

BRACKET, SEAT HINGE
4

7519045 SCREW

SCREW
5

5910404 PIN, SEAT LATCH

PIN, SEAT LATCH
6

2685142 ASM., SEAT, BACK, 40 - (BLACK/SUNSET RED) - (E87AS)

ASM., SEAT, BACK, 40 - (BLACK/SUNSET RED) - (E87AS)
6

2685355 COVERING-BACK 40 - (BLACK/SUNSET RED) - (E87AS)

COVERING-BACK 40 - (BLACK/SUNSET RED) - (E87AS)
7

2685143 ASM., SEAT, BOTTOM, 40 - (BLACK/SUNSET RED) - (E87AS)

ASM., SEAT, BOTTOM, 40 - (BLACK/SUNSET RED) - (E87AS)
7

2685360 COVERING-BTM 40 - (BLACK/SUNSET RED) - (E87AS)

COVERING-BTM 40 - (BLACK/SUNSET RED) - (E87AS)
8

5439179 GROMMET

GROMMET
9

2635052 ASM., SEAT BELT, 3PT, CENTER

ASM., SEAT BELT, 3PT, CENTER
10

2635223 BUCKLE, SEATBELT, ROD

BUCKLE, SEATBELT, ROD
11

2635118 ASM., SEAT BELT, 3PT

ASM., SEAT BELT, 3PT
12

5450708 CAP, BOLT HEAD

CAP, BOLT HEAD
13

5813829 WASHER, SEATBELT, RUBBER

WASHER, SEATBELT, RUBBER
14

7519770 SCREW

SCREW
15

7547441 NUT

NUT
16

2635235 BUCKLE, SEATBELT, PASSENGER

BUCKLE, SEATBELT, PASSENGER
17

5814036 PAD, REAR, SEAT BASE

PAD, REAR, SEAT BASE
18

2635609 BUCKLE, SEATBELT, 90, SWITCH

BUCKLE, SEATBELT, 90, SWITCH
18

5256837 BRKT-SEAT HINGE,DOUBLE

BRKT-SEAT HINGE,DOUBLE
18

7081246 CLAMP-WIRE/TUBE .25 DIA

CLAMP-WIRE/TUBE .25 DIA
