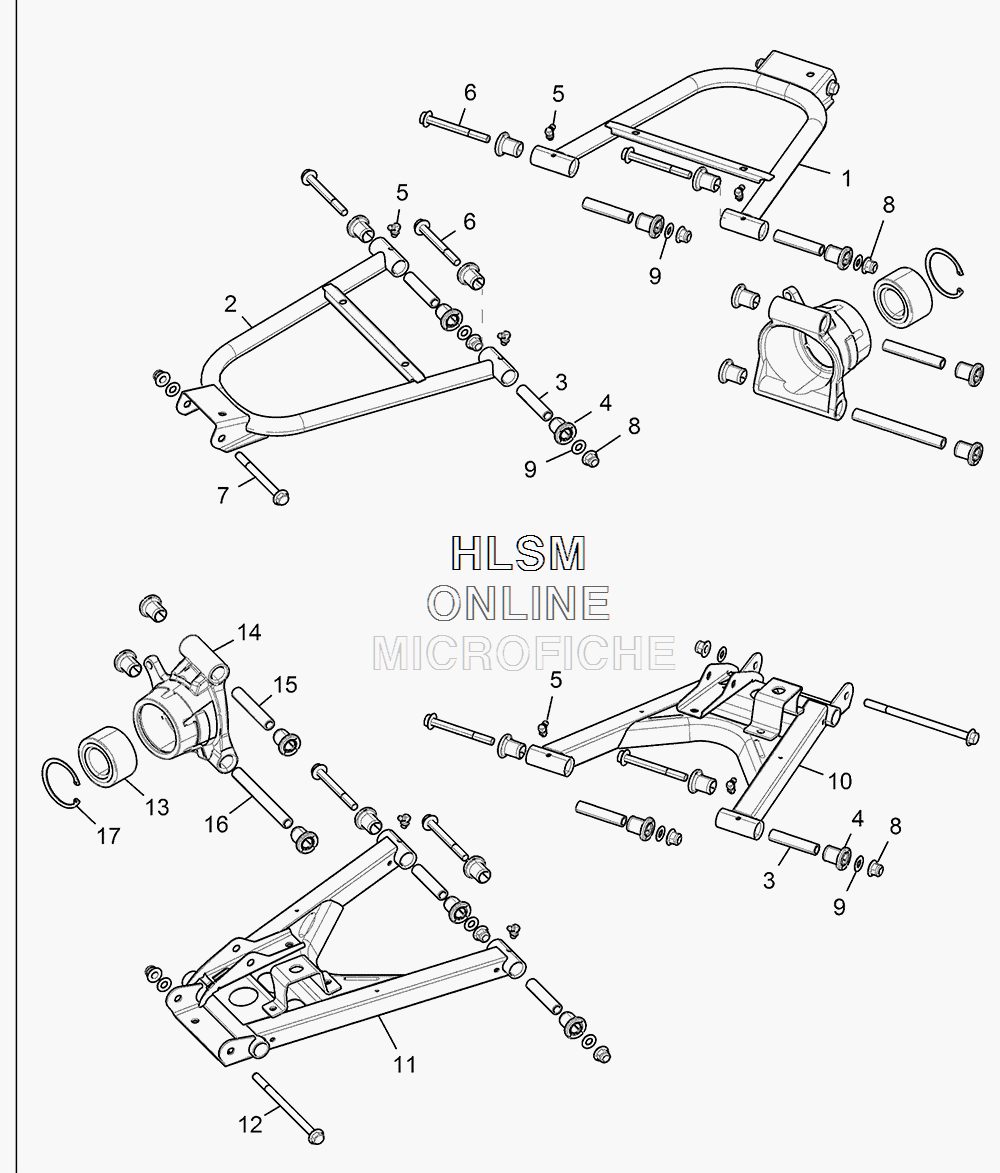

REAR SUSPENSION для Polaris RANGER CREW 900-5 EPS (TITANIUM MATTE METALLIC) [R16RUE87AM] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    1018465-133 ARM, CONTROL, RR, UPPER (LEFT HAND) (WHITE) - (E87AM)
    ARM, CONTROL, RR, UPPER (LEFT HAND) (WHITE) - (E87AM)
  • 2
    1018466-133 ARM, CONTROL, RR, UPPER (RIGHT HAND) (WHITE) - (E87AM)
    ARM, CONTROL, RR, UPPER (RIGHT HAND) (WHITE) - (E87AM)
  • 3
    5138797 SHAFT, PIVOT,70.99MM,15.88OD
    SHAFT, PIVOT,70.99MM,15.88OD
  • 4
    5439874 BUSHING, STANDARD
    BUSHING, STANDARD
  • 5
    7080510 FITTING, ZERK,90 DEG
    FITTING, ZERK,90 DEG
  • 6
    7519043 SCREW
    SCREW
  • 7
    7519365 SCREW
    SCREW
  • 8
    7547333 NUT, FLANGE NYLOK
    NUT, FLANGE NYLOK
  • 9
    7556153 WASHER
    WASHER
  • 10
    1018460-133 ARM, CONTROL, RR, LOWER (LEFT HAND) (WHITE) - (E87AM)
    ARM, CONTROL, RR, LOWER (LEFT HAND) (WHITE) - (E87AM)
  • 11
    1018461-133 ARM, CONTROL, RR, LOWER (RIGHT HAND) (WHITE) - (E87AM)
    ARM, CONTROL, RR, LOWER (RIGHT HAND) (WHITE) - (E87AM)
  • 12
    7519042 SCREW
    SCREW
  • 13
    3514635 BEARING, WHEEL,40X74X40MM
    BEARING, WHEEL,40X74X40MM
  • 14
    5138052 CARRIER, BEARING, WHEEL (LEFT HAND)
    CARRIER, BEARING, WHEEL (LEFT HAND)
  • 14
    5138053 CARRIER, BEARING, WHEEL (RIGHT HAND)
    CARRIER, BEARING, WHEEL (RIGHT HAND)
  • 15
    5138794 SHAFT, PIVOT,89.71MM,15.88OD
    SHAFT, PIVOT,89.71MM,15.88OD
  • 16
    5138796 SHAFT, PIVOT,139.1MM,15.88OD
    SHAFT, PIVOT,139.1MM,15.88OD
  • 17
    7710440 RING, RETAINING, INTERNAL
    RING, RETAINING, INTERNAL
