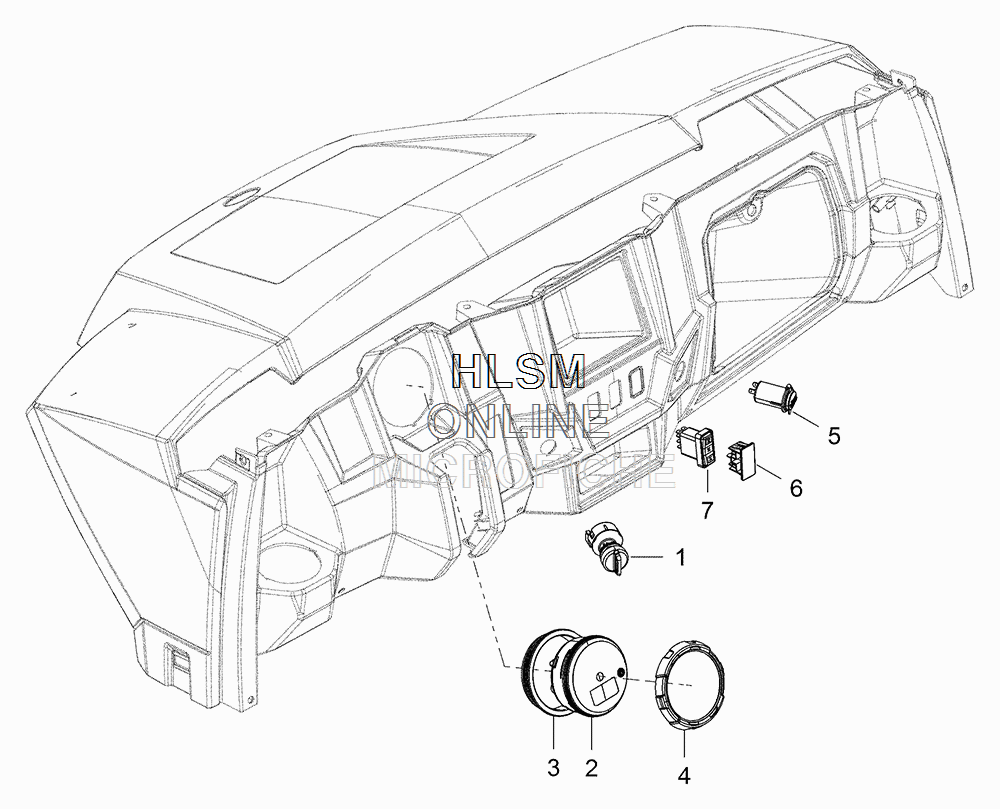

DASH INSTRUMENTS AND CONTROLS для Polaris RANGER CREW 570-4 (POLARIS PURSUIT CAMO) [R16RNA57A9] - 2016 года выпуска
-
№АртикулНазвание
-
14012166 SWITCH, KEY, 4 POSITIONSWITCH, KEY, 4 POSITION
-
23280632 ASM., CLUSTER (INCL 3)ASM., CLUSTER (INCL 3)
-
35412138 MOUNT, RUBBERMOUNT, RUBBER
-
45438945 BEZEL, INSTRUMENT CLUSTERBEZEL, INSTRUMENT CLUSTER
-
54015439 RECEPTACLE, POD MOUNT, 12VRECEPTACLE, POD MOUNT, 12V
-
65434192 PLUGPLUG
-
74012747 SWITCH, AWDSWITCH, AWD
