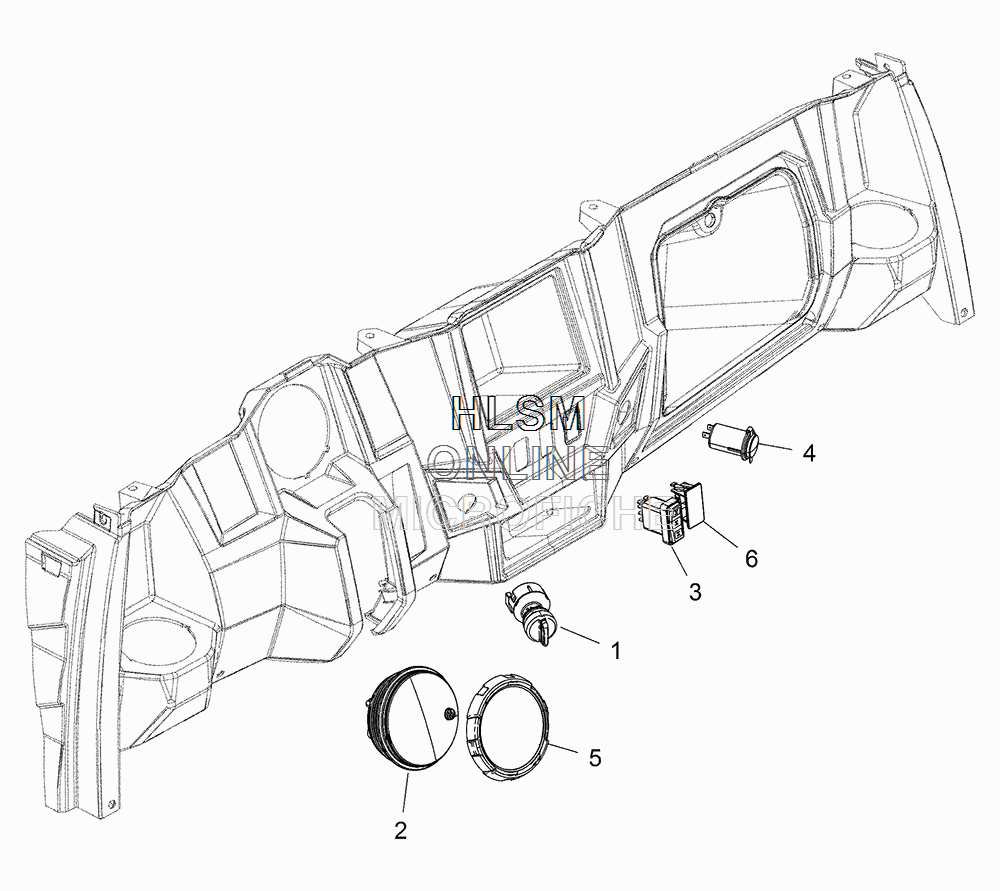

DASH INSTRUMENTS AND CONTROLS для Polaris RANGER 570 (SOLAR RED) [RMA57A4] - 2016 года выпуска
‹-+›
-
№АртикулНазвание
-
14012166 SWITCH, KEY, 4 POSITIONSWITCH, KEY, 4 POSITION
-
23280632 ASM., CLUSTER (INCL RUBBER MOUNT)ASM., CLUSTER (INCL RUBBER MOUNT)
-
25412138 MOUNT, RUBBER, INSTRUMENT CLUSTERMOUNT, RUBBER, INSTRUMENT CLUSTER
-
44015439 RECEPTACLE, POD MOUNT, 12VRECEPTACLE, POD MOUNT, 12V
-
55438945 BEZEL, INSTRUMENT CLUSTERBEZEL, INSTRUMENT CLUSTER
-
65434192 PLUG-HOLE,CARLING ROCKER SWTCHPLUG-HOLE,CARLING ROCKER SWTCH
