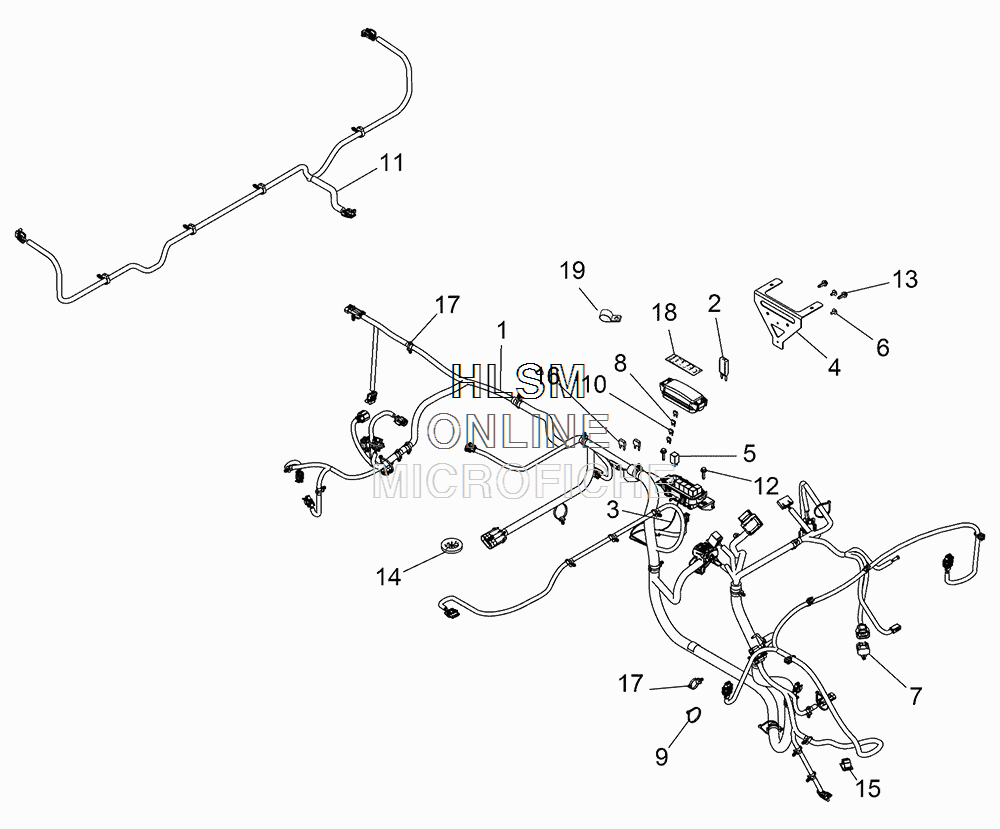

WIRE HARNESSES для Polaris RANGER 570 (SAGE GREEN) [RMA57A1] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    2412699 HARNESS, CHASSIS ((INCL. 2,3,5,7,8,10,16-18, ALL KITS) (A1) (A9) (AX))
    HARNESS, CHASSIS ((INCL. 2,3,5,7,8,10,16-18, ALL KITS) (A1) (A9) (AX))
  • 2
    4011372 BREAKER, CIRCUIT, 20 AMP
    BREAKER, CIRCUIT, 20 AMP
  • 3
    2202670 KIT, FUSIBLE LINK, 1MM
    KIT, FUSIBLE LINK, 1MM
  • 4
    5256408-329 BRACKET, MOUNT, FUSE BLOCK, BLACK
    BRACKET, MOUNT, FUSE BLOCK, BLACK
  • 5
    4011283 RELAY, SEALED
    RELAY, SEALED
  • 6
    7512084 SCREW
    SCREW
  • 7
    4012170 COVER, DIAGNOSTIC W/CLIP
    COVER, DIAGNOSTIC W/CLIP
  • 8
    2434016 FUSE, 10 AMP, IGNITION
    FUSE, 10 AMP, IGNITION
  • 9
    7080761 CABLE TIE
    CABLE TIE
  • 10
    2434017 FUSE, 20 AMP, PARK
    FUSE, 20 AMP, PARK
  • 11
    2412702 HARNESS, CARGO BOX
    HARNESS, CARGO BOX
  • 12
    7518535 SCREW
    SCREW
  • 13
    7518529 SCREW
    SCREW
  • 14
    5414440 GROMMET, ELECTRICAL, CAB
    GROMMET, ELECTRICAL, CAB
  • 15
    7670134 CLIP, WIRE
    CLIP, WIRE
  • 16
    4011652 FUSE, 5A, MINI BLADE
    FUSE, 5A, MINI BLADE
  • 17
    7081496 CLIP, ROUTING
    CLIP, ROUTING
  • 18
    7180388 LABEL, FUSE BOX
    LABEL, FUSE BOX
  • 19
    7081116 CLAMP, RUBBER COATED, .75'' ID
    CLAMP, RUBBER COATED, .75'' ID
