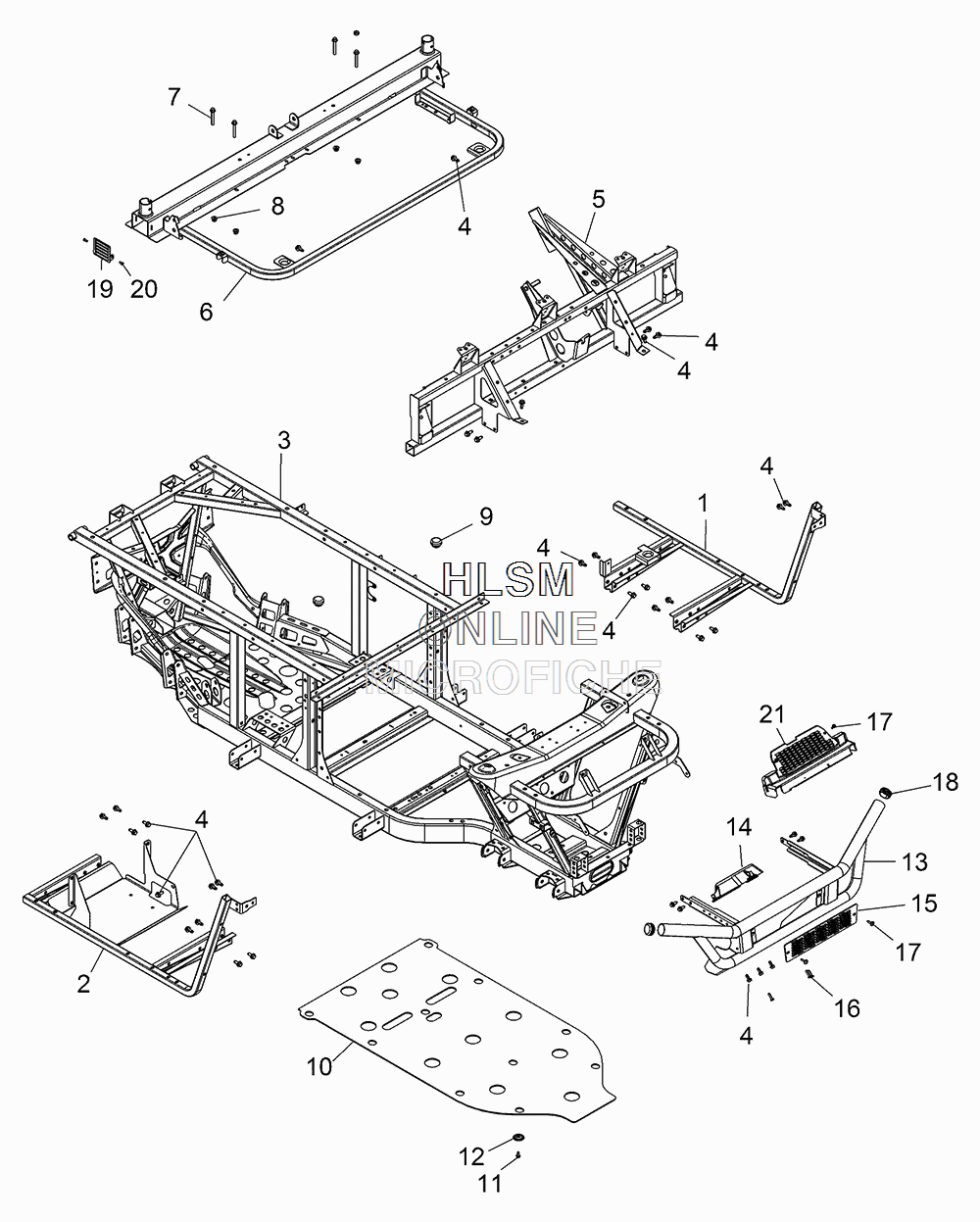

FRAME AND FRONT BUMPER для Polaris RANGER 570 FULL-SIZE (SOLAR RED) [RCA57A4] - 2016 года выпуска`
-
№АртикулНазвание
-
11016254-329 WELD-FLOOR SUPPORT,LH, BLACKWELD-FLOOR SUPPORT,LH, BLACK
-
21016255-329 WELD-FLOOR SUPPORT,RH, BLACKWELD-FLOOR SUPPORT,RH, BLACK
-
31021651-458 WELD-MAIN FRAME,3P,FS,M BLACKWELD-MAIN FRAME,3P,FS,M BLACK
-
47518555 BOLTBOLT
-
51021653-329 WELD-CAB SUPPORT,3P,FSWELD-CAB SUPPORT,3P,FS
-
61021652-458 WELD-SEAT BASE,3P,FS,M BLACKWELD-SEAT BASE,3P,FS,M BLACK
-
77517281 SCREWSCREW
-
87547332 NUTNUT
-
95411435 BUMPER, RUBBERBUMPER, RUBBER
-
105450136 PLATE, SKIDPLATE, SKID
-
117517386 SCREWSCREW
-
127556065 WASHER, SKID PLATEWASHER, SKID PLATE
-
131020136-458 BUMPER, MATTE BLACKBUMPER, MATTE BLACK
-
145438181-070 BRACKET, BUMPER, GUARD, BLACKBRACKET, BUMPER, GUARD, BLACK
-
155438240-070 SCREEN, BUMPER, UPPER, BLACKSCREEN, BUMPER, UPPER, BLACK
-
167518158 SCREWSCREW
-
177519650 SCREWSCREW
-
185434191 CAP-BUMPERCAP-BUMPER
-
195451017 PANEL-INTAKEPANEL-INTAKE
-
207519091 SCR-#10X1/2-HI/LO-PN-T25,TRX-MSCR-#10X1/2-HI/LO-PN-T25,TRX-M
-
215452484-070 SCREEN-FASCIA,UPPER,3P,FS, BLACKSCREEN-FASCIA,UPPER,3P,FS, BLACK
