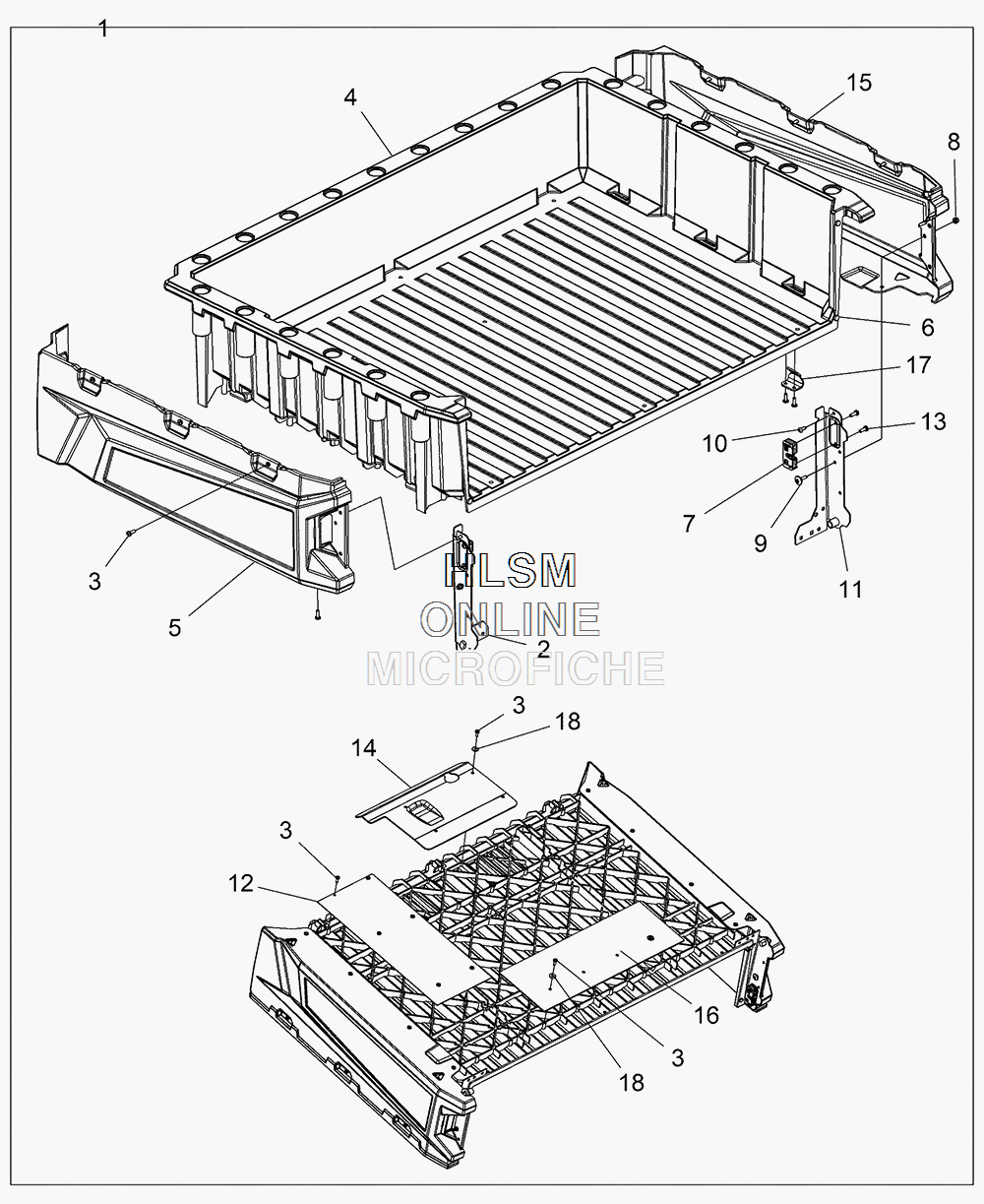

BOX ASM. для Polaris RANGER 570 FULL-SIZE (SAGE GREEN) [RCA57A1] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    2636007-070 ASM., BOX, SHORT, BLACK (INCL. ALL)
    ASM., BOX, SHORT, BLACK (INCL. ALL)
  • 2
    1021456-067 SUPPORT, TAILGATE, LH, BLACK
    SUPPORT, TAILGATE, LH, BLACK
  • 3
    7519731 SCR-TXPH-#14 X .75 HI-LO RIE
    SCR-TXPH-#14 X .75 HI-LO RIE
  • 4
    5439087-070 BOX-SHORT, BLACK
    BOX-SHORT, BLACK
  • 5
    5439111-070 PANEL-BOX,SHORT,LH, BLACK
    PANEL-BOX,SHORT,LH, BLACK
  • 6
    5414486 BUMPER-RUBBER,13.50 DIAX4.3THK
    BUMPER-RUBBER,13.50 DIAX4.3THK
  • 7
    7081568 LATCH, SLAM, TAILGATE
    LATCH, SLAM, TAILGATE
  • 8
    7547274 NUT-M6 FLANGE,NYLOC
    NUT-M6 FLANGE,NYLOC
  • 9
    7519942 SCR-TXTH-M6X1.0X25 RIE,SHDR
    SCR-TXTH-M6X1.0X25 RIE,SHDR
  • 10
    7519045 SCR-TX TRUSS-#14X3/4,HI/LO ZBK
    SCR-TX TRUSS-#14X3/4,HI/LO ZBK
  • 11
    1021458-067 SUPPORT, TAILGATE, RH, BLACK
    SUPPORT, TAILGATE, RH, BLACK
  • 12
    5261664 SHIELD-HEAT,BOX,3P,FS
    SHIELD-HEAT,BOX,3P,FS
  • 13
    7519205 SCR-#14X3/4 HI/LO-PH-PN TRX-M
    SCR-#14X3/4 HI/LO-PH-PN TRX-M
  • 14
    5813867 SHIELD-HEAT,EXHAUST
    SHIELD-HEAT,EXHAUST
  • 15
    5439112-070 PANEL-BOX,SHORT,RH, BLACK
    PANEL-BOX,SHORT,RH, BLACK
  • 16
    5814347 SHIELD-HEAT,MUFFLER,3P,FS
    SHIELD-HEAT,MUFFLER,3P,FS
  • 17
    5255204 BRKT-BOX,TIE DOWN
    BRKT-BOX,TIE DOWN
  • 18
    7555935 WASHER-.28 X .81 X .06, ST-M
    WASHER-.28 X .81 X .06, ST-M
