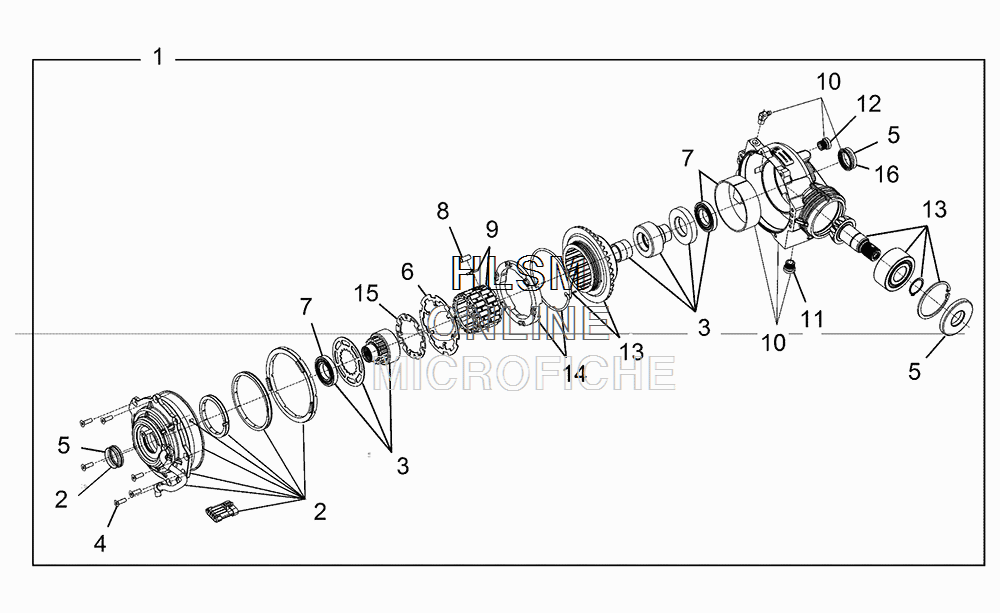

FRONT GEARCASE INTERNALS для Polaris RANGER 570 EPS (POLARIS PURSUIT CAMO (HUNTER EDITION) [RME57A9] - 2016 года выпуска
‹-+›
-
№АртикулНазвание
-
11333491 ASM-GEARCASE,SEAL,FRONT DRIVE (INCL ALL)ASM-GEARCASE,SEAL,FRONT DRIVE (INCL ALL)
-
23235799 ASSY.- COVER OUTPUTASSY.- COVER OUTPUT
-
33235522 KIT, OUTPUT HUB ASSY - MALE AND FEMALEKIT, OUTPUT HUB ASSY - MALE AND FEMALE
-
43235170 KIT, FASTENERKIT, FASTENER
-
53235800 KIT, SEAL REPAIRKIT, SEAL REPAIR
-
63235485 4WD ARMATURE PLATE4WD ARMATURE PLATE
-
73235174 KIT, BEARINGSKIT, BEARINGS
-
83235624 KIT, CLUTCH ROLLSKIT, CLUTCH ROLLS
-
93235625 ASM - ROLL CAGEASM - ROLL CAGE
-
103235801 KIT, GEARCASE ASSY.KIT, GEARCASE ASSY.
-
112203738 DRAIN PLUGDRAIN PLUG
-
122203739 FILL PLUGFILL PLUG
-
133235623 KIT, GEAR HOUSING AND PINION GEAR ASSYKIT, GEAR HOUSING AND PINION GEAR ASSY
-
143235712 TORSION SPRING AND RETAINERTORSION SPRING AND RETAINER
-
153235626 BD ARMATURE PLATEBD ARMATURE PLATE
-
163235829 SEAL, OUTPUTSEAL, OUTPUT
