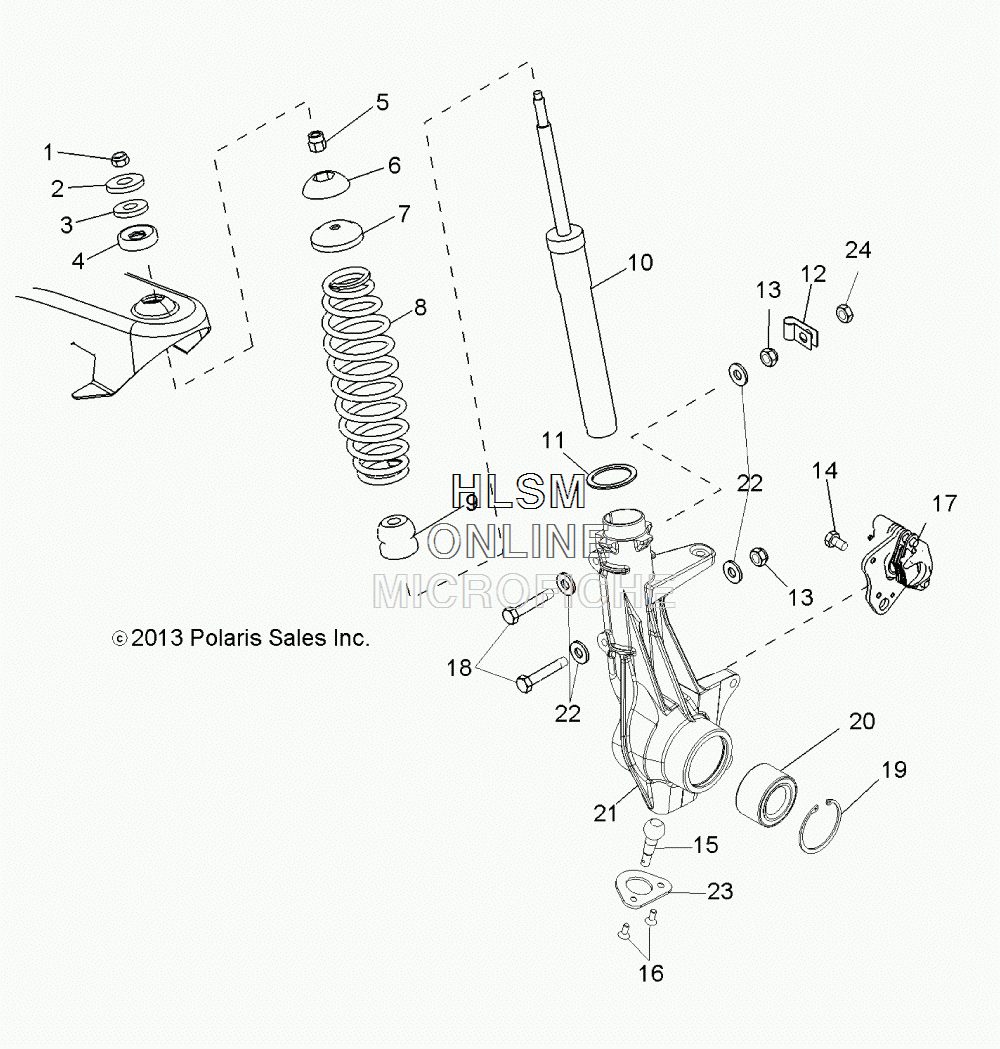

FRONT STRUT для Polaris RANGER ETX SAGE GREEN [R15RMA32AA] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    7547104 NUT
    NUT
  • 2
    7555749 WASHER
    WASHER
  • 3
    5810291 SPACER, RUBBER
    SPACER, RUBBER
  • 4
    5432872 BALL, PIVOT, TOP
    BALL, PIVOT, TOP
  • 5
    5132062 SPACER
    SPACER
  • 6
    5432871 BALL, PIVOT, BOTTOM
    BALL, PIVOT, BOTTOM
  • 7
    5243364 RETAINER, SPRING
    RETAINER, SPRING
  • 8
    7044228-458 SPRING, FRONT, MATTE BLACK
    SPRING, FRONT, MATTE BLACK
  • 9
    5412665 BUMPER
    BUMPER
  • 10
    7044149 STRUT, FRONT
    STRUT, FRONT
  • 11
    5211115 WASHER
    WASHER
  • 12
    7080367 CLAMP, CABLE
    CLAMP, CABLE
  • 13
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 14
    7518558 BOLT (ASSEMBLES BRAKE CALIPER)
    BOLT (ASSEMBLES BRAKE CALIPER)
  • 15
    7061158 JOINT, BALL, GREASELESS
    JOINT, BALL, GREASELESS
  • 16
    7512284 SCREW
    SCREW
  • 18
    7512312 BOLT
    BOLT
  • 19
    7710507 RING, RETAINING
    RING, RETAINING
  • 20
    3514634 BEARING, WHEEL
    BEARING, WHEEL
  • 21
    1824179 ASM., HUBSTRUT, LEFT HAND
    ASM., HUBSTRUT, LEFT HAND
  • 21
    1824180 ASM., HUBSTRUT, RIGHT HAND
    ASM., HUBSTRUT, RIGHT HAND
  • 22
    7558402 WASHER, FLAT
    WASHER, FLAT
  • 23
    5211121 BRACKET, BALL JOINT
    BRACKET, BALL JOINT
  • 24
    7542344 NUT, NYLOK
    NUT, NYLOK
