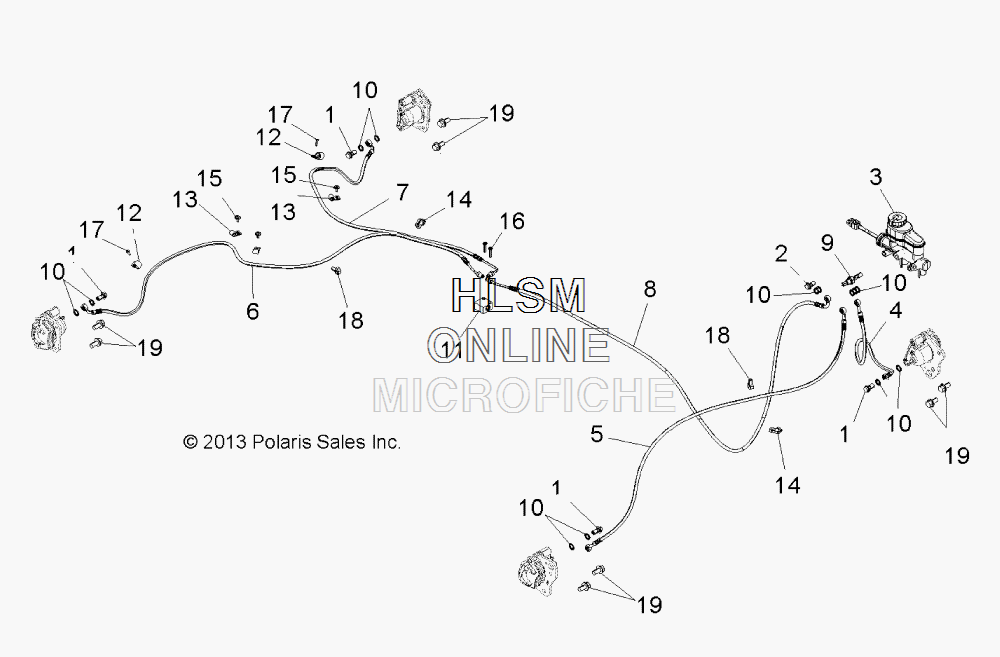

MASTER CYLINDER AND BRAKE LINES для Polaris RANGER CREW 570 FULL-SIZE SAGE GREEN [R15RUA57AA] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    1910499 BOLT, BANJO
    BOLT, BANJO
  • 2
    1910958 BOLT, BANJO
    BOLT, BANJO
  • 3
    1911515 ASM., MASTER CYLINDER
    ASM., MASTER CYLINDER
  • 4
    1911734 LINE, BRAKE, FRONT LEFT
    LINE, BRAKE, FRONT LEFT
  • 5
    1911735 LINE, BRAKE, FRONT, RIGHT
    LINE, BRAKE, FRONT, RIGHT
  • 6
    1911736 LINE, BRAKE, REAR, RIGHT
    LINE, BRAKE, REAR, RIGHT
  • 7
    1911733 LINE, BRAKE, REAR, LEFT
    LINE, BRAKE, REAR, LEFT
  • 8
    1912045 LINE, BRAKE
    LINE, BRAKE
  • 9
    4014225 SWITCH, BRAKE, DOUBLE SEALED
    SWITCH, BRAKE, DOUBLE SEALED
  • 10
    5413212 SEAL
    SEAL
  • 11
    7052293 FITTING, TEE, BRAKE
    FITTING, TEE, BRAKE
  • 12
    7080499 CLAMP, CABLE
    CLAMP, CABLE
  • 13
    7080683 CLAMP, HOSE
    CLAMP, HOSE
  • 14
    7081496 CLIP, ROUTING
    CLIP, ROUTING
  • 15
    7512084 SCREW
    SCREW
  • 16
    7518552 SCREW
    SCREW
  • 17
    7621323 RIVET
    RIVET
  • 18
    7670102 CLIP
    CLIP
  • 19
    7518558 BOLT, FLANGE
    BOLT, FLANGE
