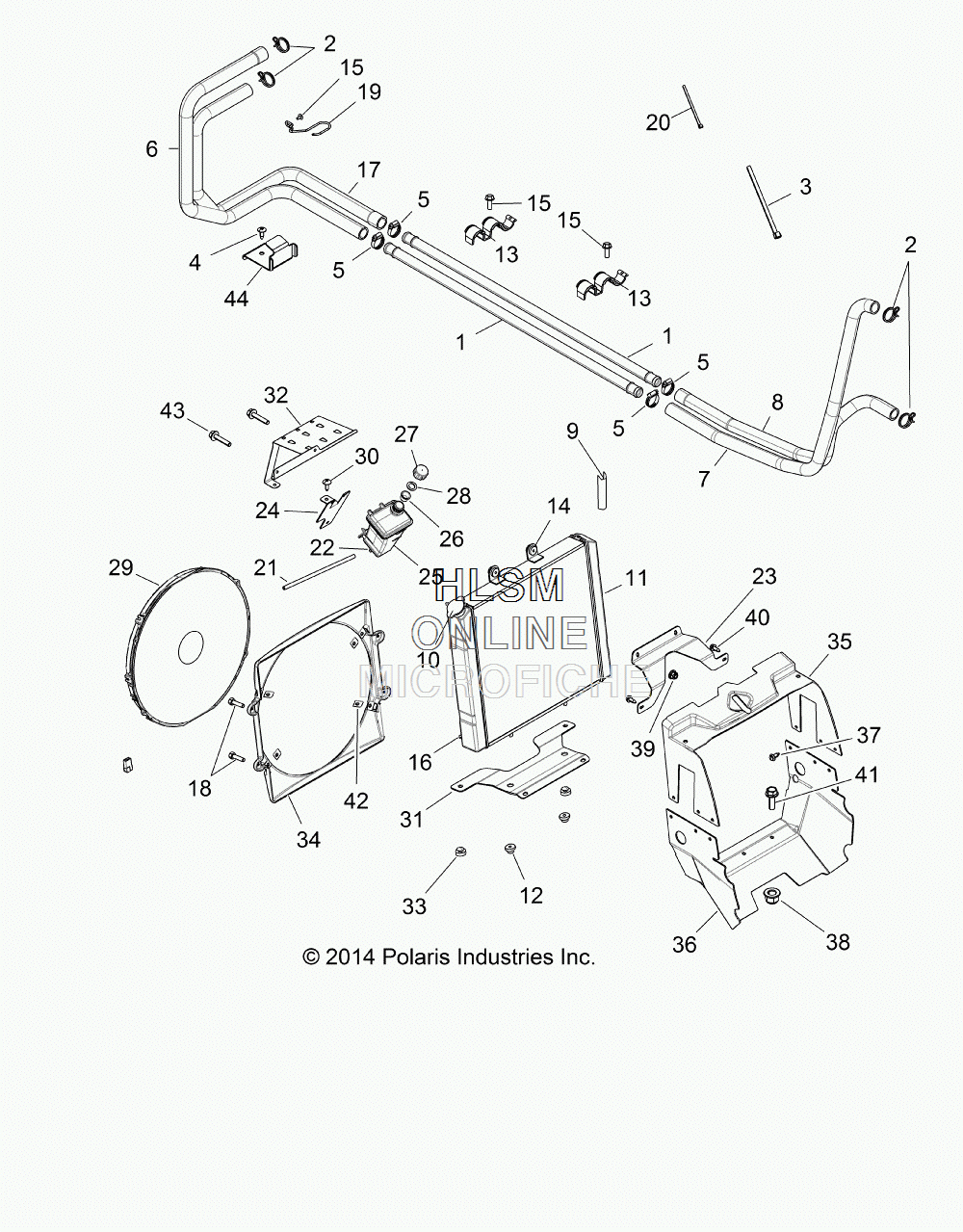

COOLING SYSTEM для Polaris RGR 4X4 900D HIPPO MPS (2014) [R14WH9EMD] - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    5136082 TUBE, COOLANT
    TUBE, COOLANT
  • 2
    7081174 CLAMP, HOSE
    CLAMP, HOSE
  • 3
    7080138 CABLE TIE
    CABLE TIE
  • 4
    7517916 SCREW
    SCREW
  • 5
    7081192 CLAMP, HOSE
    CLAMP, HOSE
  • 6
    5414273 HOSE, ENGINE OUT
    HOSE, ENGINE OUT
  • 7
    5414335 HOSE, RADIATOR, UPPER
    HOSE, RADIATOR, UPPER
  • 8
    5414280 HOSE, RADIATOR, LOWER
    HOSE, RADIATOR, LOWER
  • 9
    8360012-10 EDGE, TRIM
    EDGE, TRIM
  • 11
    1240763 ASM., RADIATOR (INCL. 10,14,16)
    ASM., RADIATOR (INCL. 10,14,16)
  • 12
    5410584 BUSHING, MOUNT, LOWER, RADIATOR
    BUSHING, MOUNT, LOWER, RADIATOR
  • 13
    5438331 CLIP, COOLANT, ROUTING
    CLIP, COOLANT, ROUTING
  • 15
    7517685 SCREW
    SCREW
  • 17
    5414276 HOSE, ENGINE INLET
    HOSE, ENGINE INLET
  • 18
    7516822 SCREW
    SCREW
  • 19
    7043724 HOSE, RETAINER
    HOSE, RETAINER
  • 20
    7080761 CABLE TIE
    CABLE TIE
  • 21
    8450003-1525 LINE, FUEL
    LINE, FUEL
  • 22
    7052065 FITTING
    FITTING
  • 23
    5257520-329 BRACKET, UPPER RADIATOR, BLACK
    BRACKET, UPPER RADIATOR, BLACK
  • 24
    5257696-329 BRACKET, SURGE TANK, BLACK
    BRACKET, SURGE TANK, BLACK
  • 25
    5436936 TANK, SURGE
    TANK, SURGE
  • 26
    5433774 PLUG, CAP
    PLUG, CAP
  • 27
    5430743 CAP, OVERFLOW
    CAP, OVERFLOW
  • 28
    5810279 GASKET
    GASKET
  • 29
    2412509 ASM., FAN
    ASM., FAN
  • 30
    7518280 SCREW
    SCREW
  • 31
    5257563-329 BRACKET, LOWER RADIATOR, BLACK
    BRACKET, LOWER RADIATOR, BLACK
  • 32
    5259689-458 BRACKET, FUSE BOX, MATTE BLACK
    BRACKET, FUSE BOX, MATTE BLACK
  • 33
    5410414 BUMPER, RUBBER
    BUMPER, RUBBER
  • 34
    5437329 SHROUD, FAN
    SHROUD, FAN
  • 35
    5450395-070 SHROUD, RADIATOR, INTAKE, UPPER, BLACK
    SHROUD, RADIATOR, INTAKE, UPPER, BLACK
  • 36
    5450396-070 SHROUD, RADIATOR, INTAKE, LOWER, BLACK
    SHROUD, RADIATOR, INTAKE, LOWER, BLACK
  • 37
    7661855 RIVET, TUFLOK
    RIVET, TUFLOK
  • 38
    7547332 NUT, NYLOCK, M8
    NUT, NYLOCK, M8
  • 39
    7547339 NUT, NYLOCK, M6
    NUT, NYLOCK, M6
  • 40
    7517386 SCREW
    SCREW
  • 41
    7518514 BOLT
    BOLT
  • 42
    7547366 CLIP, U
    CLIP, U
  • 43
    7518993 SCREW
    SCREW
  • 44
    5254962-329 BRACKET, COOLANT HOSE, RETAINER
    BRACKET, COOLANT HOSE, RETAINER
