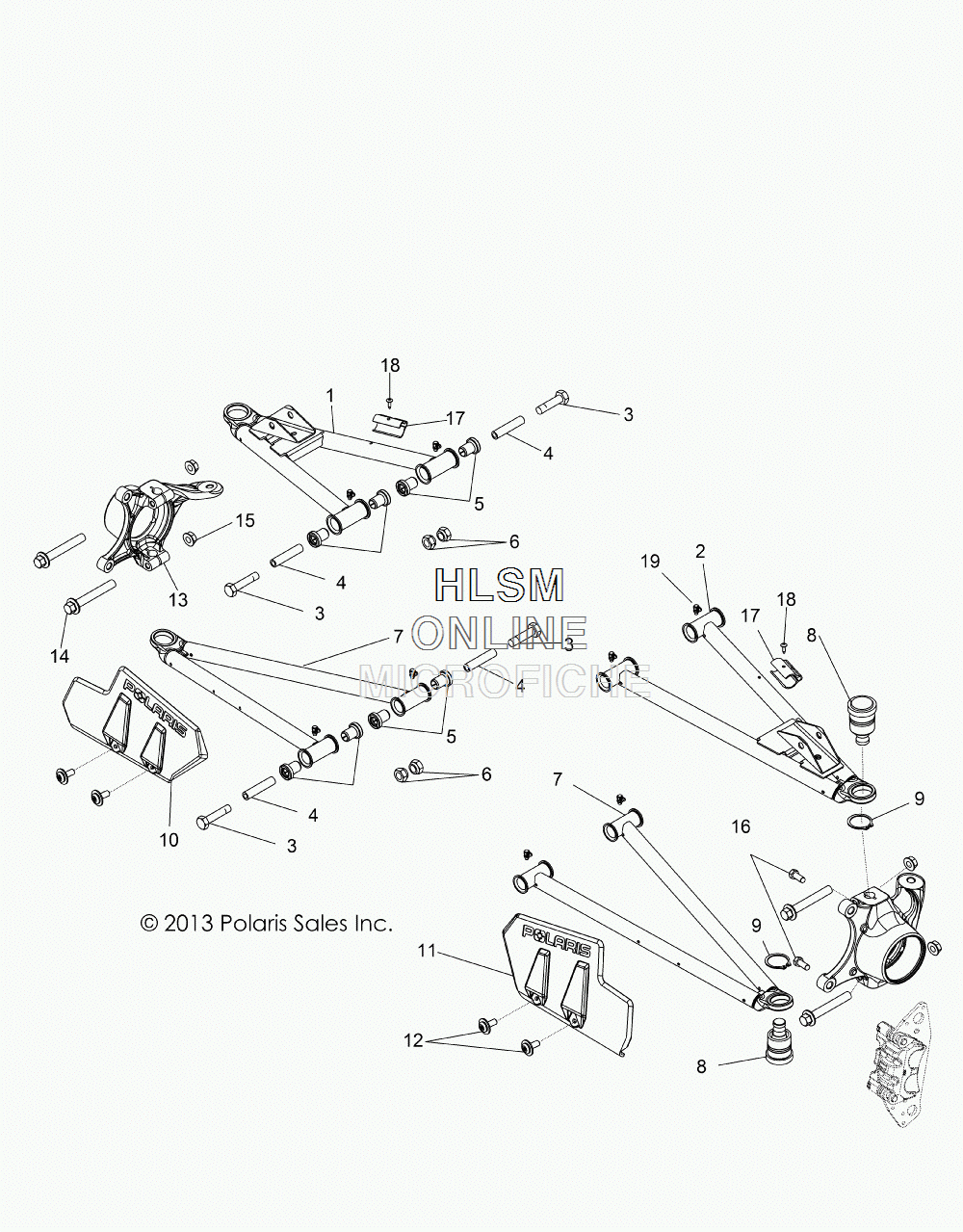

CONTROL ARMS - FRONT для Polaris RANGER DIESEL INTL (2014) [R14TH90FX] - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    1543337-458 ARM, CONTROL, UPPER, FRONT, MATTE BLACK, RIGHT HAND
    ARM, CONTROL, UPPER, FRONT, MATTE BLACK, RIGHT HAND
  • 2
    1543336-458 ARM, CONTROL, UPPER, FRONT, MATTE, BLACK, LEFT HAND
    ARM, CONTROL, UPPER, FRONT, MATTE, BLACK, LEFT HAND
  • 3
    7519043 SCREW
    SCREW
  • 4
    5137591 SHAFT, PIVOT
    SHAFT, PIVOT
  • 5
    1543326 ASM., BUSHING, W/SEAL
    ASM., BUSHING, W/SEAL
  • 6
    7547333 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 7
    1543338-458 ARM, CONTROL, LOWER, FRONT, MATTE BLACK
    ARM, CONTROL, LOWER, FRONT, MATTE BLACK
  • 8
    7061187 JOINT, BALL, LONG STUD
    JOINT, BALL, LONG STUD
  • 9
    7710533 RING, RETAINER, EXTERNAL
    RING, RETAINER, EXTERNAL
  • 10
    5437545-070 SHIELD, CV, FRONT, RIGHT HAND, BLACK
    SHIELD, CV, FRONT, RIGHT HAND, BLACK
  • 11
    5437544-070 SHIELD, CV, FRONT, LEFT HAND, BLACK
    SHIELD, CV, FRONT, LEFT HAND, BLACK
  • 12
    7512084 SCREW
    SCREW
  • 13
    5136948 CARRIER, WHEEL BEARING, LEFT HAND
    CARRIER, WHEEL BEARING, LEFT HAND
  • 13
    5136949 CARRIER, WHEEL BEARING, RIGHT HAND
    CARRIER, WHEEL BEARING, RIGHT HAND
  • 14
    7516733 SCREW
    SCREW
  • 15
    7547405 NUT, NYLOK
    NUT, NYLOK
  • 16
    7518760 BOLT (FRONT CALIPER ATTACH)
    BOLT (FRONT CALIPER ATTACH)
  • 17
    5439192 RETAINER, BRAKE LINE
    RETAINER, BRAKE LINE
  • 18
    7621323 RIVET
    RIVET
  • 19
    7080510 FITTING, ZERK
    FITTING, ZERK
