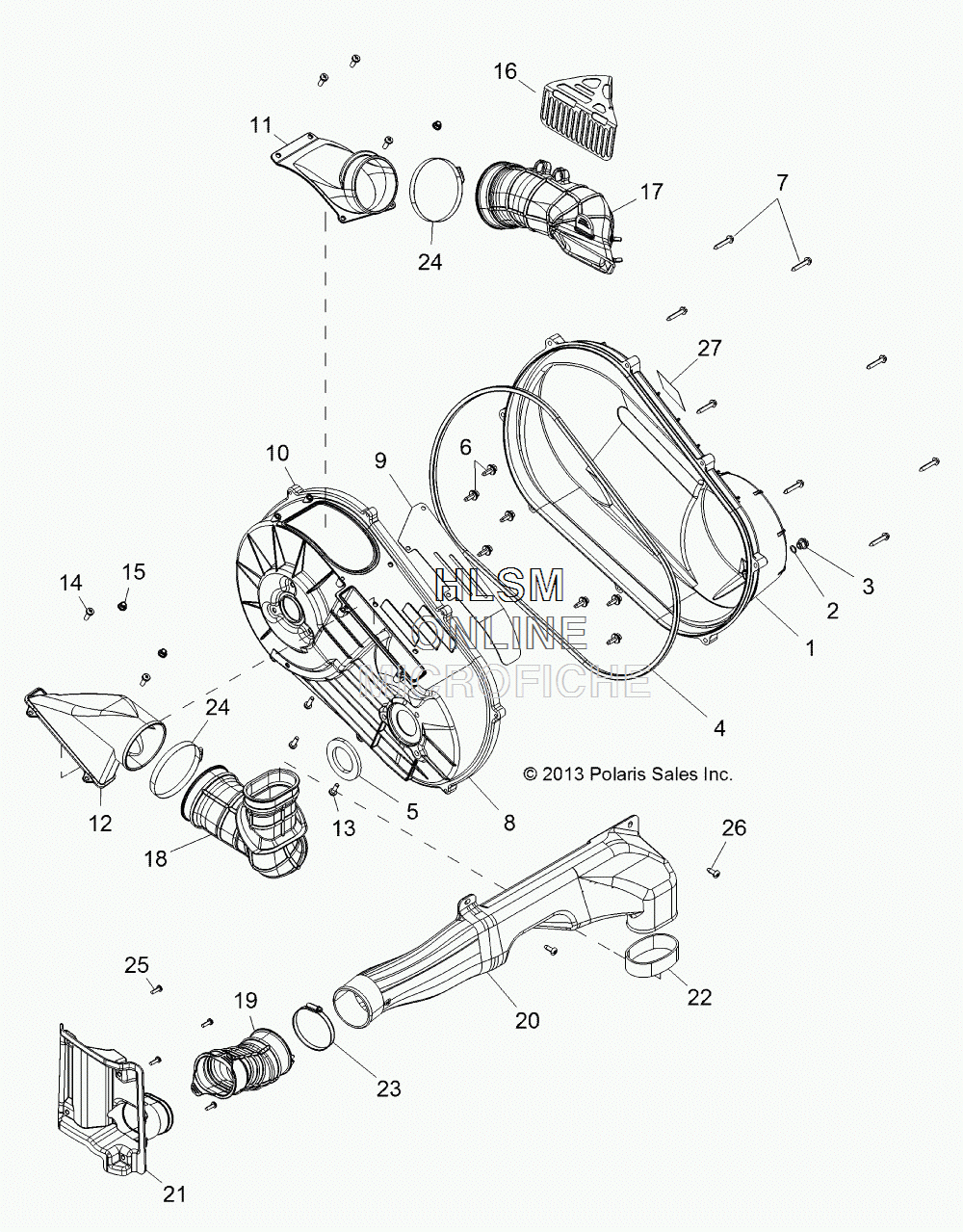

CLUTCH COVER для Polaris RANGER 900 CREW W/ POWERSTEERING [R14WH9EAS] - SUNSET RED - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    2634179 ASM., COVER, CLUTCH, OUTER (INCL. 2,3)
    ASM., COVER, CLUTCH, OUTER (INCL. 2,3)
  • 2
    5410542 O-RING
    O-RING
  • 3
    5434264 PLUG, DRAIN, CLUTCH COVER
    PLUG, DRAIN, CLUTCH COVER
  • 4
    5521831 SEAL, OUTER CLUTCH COVER
    SEAL, OUTER CLUTCH COVER
  • 5
    5813708 SEAL, COVER, PTO
    SEAL, COVER, PTO
  • 6
    7519278 ASM., BOLT/WASHER
    ASM., BOLT/WASHER
  • 7
    7519330 SCREW
    SCREW
  • 8
    2634229 ASM., COVER, CLUTCH, INNER (INCL. 9-15)
    ASM., COVER, CLUTCH, INNER (INCL. 9-15)
  • 9
    5256223 BRACKET, GUARD, CLUTCH COVER
    BRACKET, GUARD, CLUTCH COVER
  • 10
    5439084-070 COVER, CLUTCH, INNER, BLACK
    COVER, CLUTCH, INNER, BLACK
  • 11
    5439085 DUCT, CLUTCH, AIR OUTLET
    DUCT, CLUTCH, AIR OUTLET
  • 12
    5439086 DUCT, CLUTCH, AIR INLET
    DUCT, CLUTCH, AIR INLET
  • 13
    7518546 SCREW
    SCREW
  • 14
    7519205 SCREW
    SCREW
  • 15
    7547453 NUT
    NUT
  • 16
    5256957 BRACKET, SCREEN, BELT
    BRACKET, SCREEN, BELT
  • 17
    5414537 HOSE, CLUTCH, AIR OUTLET
    HOSE, CLUTCH, AIR OUTLET
  • 18
    5414565 HOSE, CLUTCH, AIR INLET
    HOSE, CLUTCH, AIR INLET
  • 19
    5414854 HOSE, INTAKE, CLUTCH
    HOSE, INTAKE, CLUTCH
  • 20
    5450000 DUCT, INTAKE, CLUTCH (BUILT 7/01/13 AND BEFORE)
    DUCT, INTAKE, CLUTCH (BUILT 7/01/13 AND BEFORE)
  • 20
    5451066 DUCT, INTAKE, CLUTCH (BUILT 7/02/13 AND AFTER)
    DUCT, INTAKE, CLUTCH (BUILT 7/02/13 AND AFTER)
  • 21
    5450695 INTAKE, FENDER, REAR
    INTAKE, FENDER, REAR
  • 22
    5813938 PAD, CLUTCH DUCT (BUILT 7/01/13 AND BEFORE)
    PAD, CLUTCH DUCT (BUILT 7/01/13 AND BEFORE)
  • 23
    7080707 CLAMP, BAND,NARROW
    CLAMP, BAND,NARROW
  • 24
    7081626 CLAMP, WORM DRIVE
    CLAMP, WORM DRIVE
  • 25
    7518238 SCREW
    SCREW
  • 26
    7519045 SCREW
    SCREW
  • 27
    7177469 DECAL, BELT, CAUTION/CHECK
    DECAL, BELT, CAUTION/CHECK
