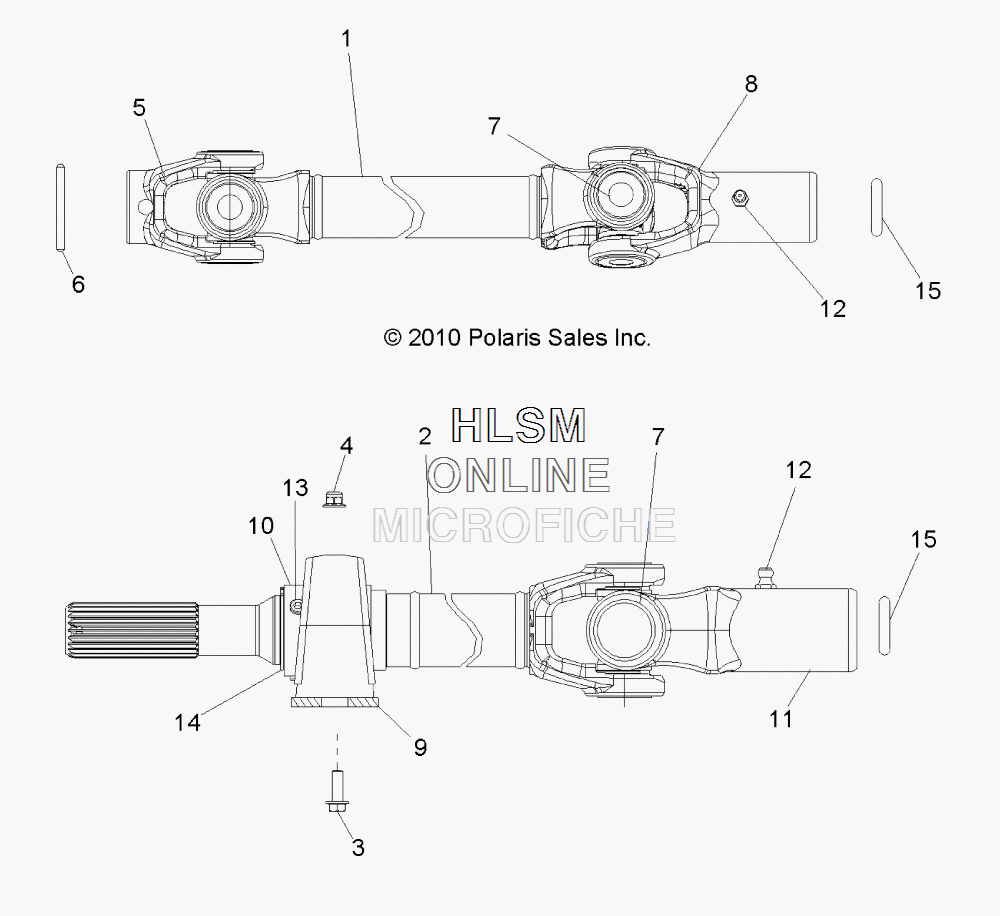

FRONT PROP SHAFT для Polaris RANGER 800 CREW [R14WH76AA] - SAGE BRUSH GREEN - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    1332891 ASM., PROPSHAFT, FRONT, SPLIT (INCL. 5,7,8)
    ASM., PROPSHAFT, FRONT, SPLIT (INCL. 5,7,8)
  • 2
    1332908 ASM., PROPSHAFT, FRONT W/BEARING (INCL. 5,7,9-13)
    ASM., PROPSHAFT, FRONT W/BEARING (INCL. 5,7,9-13)
  • 3
    7519059 SCREW
    SCREW
  • 4
    7547333 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 5
    3260133 YOKE, FRONT, GEARCASE
    YOKE, FRONT, GEARCASE
  • 6
    7661913 PIN, SPRING
    PIN, SPRING
  • 7
    2202015 KIT, CROSS AND BEARING, NONGREASE
    KIT, CROSS AND BEARING, NONGREASE
  • 8
    3235205 YOKE, SKIP TOOTH, LONG
    YOKE, SKIP TOOTH, LONG
  • 9
    2878360 KIT, BRACKET, PROPSHAFT
    KIT, BRACKET, PROPSHAFT
  • 10
    3514703 BEARING, PROP, FRONT
    BEARING, PROP, FRONT
  • 11
    1590483 YOKE, SPLINED W/FITTING
    YOKE, SPLINED W/FITTING
  • 12
    7080424 FITTING, LUBE
    FITTING, LUBE
  • 13
    7519277 SET, SCREW
    SET, SCREW
  • 14
    7710622 RING, RETAINING, EXTERNAL
    RING, RETAINING, EXTERNAL
  • 15
    5411965 O-RING
    O-RING
