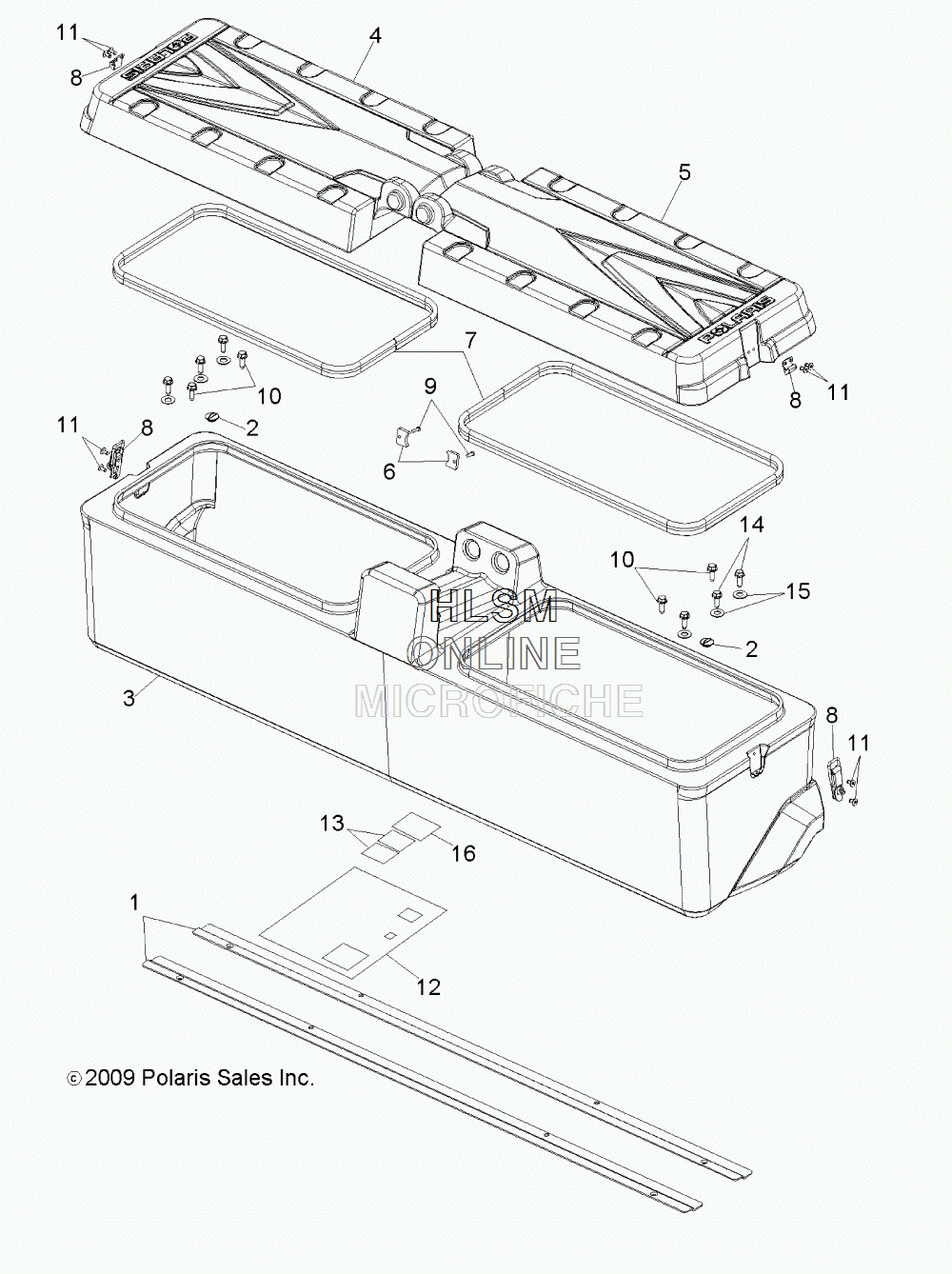

STORAGE BOX- REAR для Polaris RANGER 800 6X6 [R14HR76AA] SAGE BRUSH METALLIC - 2014 года выпуска

  • №
    Артикул
    Название
  • -
    2633930-070 ASM., STORAGE BOX, BLACK (INCL. 1-13,16)
    ASM., STORAGE BOX, BLACK (INCL. 1-13,16)
  • 1
    5253697 BRACKET, MOUNT, STORAGE
    BRACKET, MOUNT, STORAGE
  • 2
    5412981 PLUG, COMPARTMENT
    PLUG, COMPARTMENT
  • 3
    5438250-070 BOX, STORAGE BASE, BLACK
    BOX, STORAGE BASE, BLACK
  • 4
    5438251-070 LID, STORAGE BOX, LEFT HAND, BLACK
    LID, STORAGE BOX, LEFT HAND, BLACK
  • 5
    5438252-070 LID, STORAGE BOX, RIGHT HAND, BLACK
    LID, STORAGE BOX, RIGHT HAND, BLACK
  • 6
    5438253-070 TAB, STORAGE BOX, BLACK
    TAB, STORAGE BOX, BLACK
  • 7
    5521803 SEAL, STORAGE BOX
    SEAL, STORAGE BOX
  • 8
    7081609 LATCH, STORAGE, LOCKING
    LATCH, STORAGE, LOCKING
  • 9
    7512026 SCREW
    SCREW
  • 10
    7519156 SCREW
    SCREW
  • 11
    7519091 SCREW
    SCREW
  • 12
    5813566 FOIL, BOX, STORAGE
    FOIL, BOX, STORAGE
  • 13
    5813567 FOIL, BOX, STORAGE, MOUNT
    FOIL, BOX, STORAGE, MOUNT
  • 14
    7517208 SCREW
    SCREW
  • 15
    7555976 WASHER, FLAT
    WASHER, FLAT
  • 16
    5813574 FOIL, STORAGE BOX, LARGE
    FOIL, STORAGE BOX, LARGE
