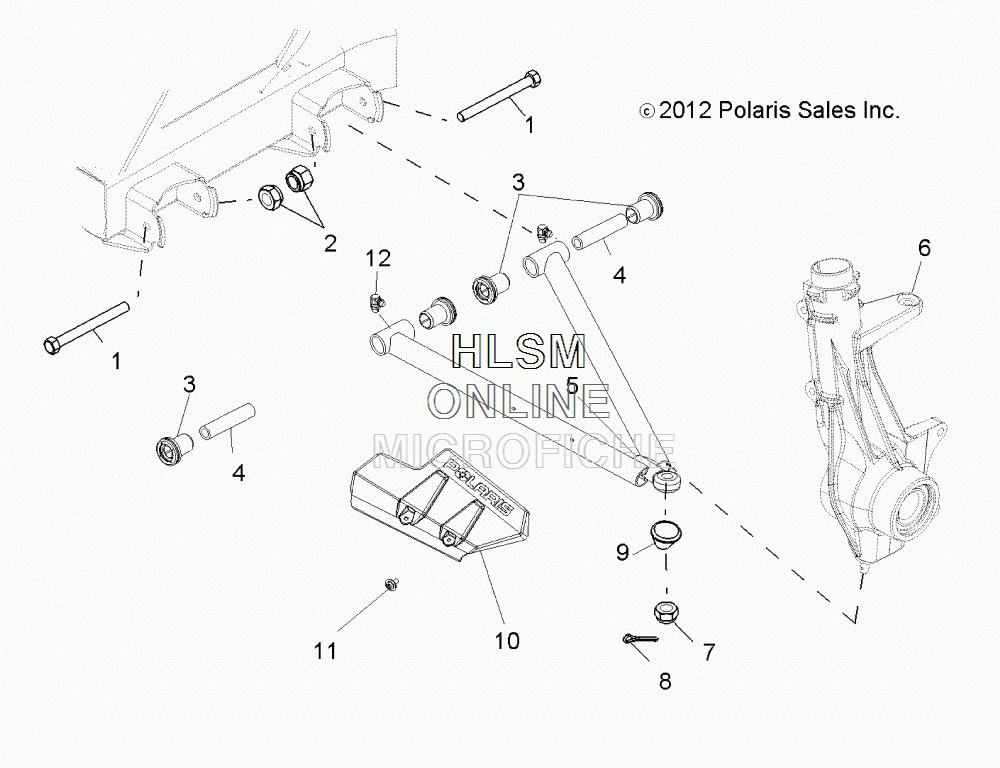

A-ARM AND STRUT MOUNTING для Polaris RANGER 570 INTL (2014) [R14RH57FX] - 2014 года выпуска`
-
№АртикулНазвание
-
17519043 SCREWSCREW
-
27547333 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
31543367 ASM., BUSHING W/SEALASM., BUSHING W/SEAL
-
45138797 SHAFT, PIVOTSHAFT, PIVOT
-
51543141-458 A-FRAME, LEFT HAND, MATTE BLACKA-FRAME, LEFT HAND, MATTE BLACK
-
51543142-458 A-FRAME, RIGHT HAND, MATTE BLACKA-FRAME, RIGHT HAND, MATTE BLACK
-
77542438 NUT, CASTLENUT, CASTLE
-
87661203 PIN, COTTERPIN, COTTER
-
95412658 BOOT, RUBBERBOOT, RUBBER
-
105437544-070 SHIELD, CV, FRONT, LEFT HAND, BLACKSHIELD, CV, FRONT, LEFT HAND, BLACK
-
105437545-070 SHIELD, CV, FRONT, RIGHT HAND, BLACKSHIELD, CV, FRONT, RIGHT HAND, BLACK
-
117512084 SCREWSCREW
-
127080433 FITTING, LUBFITTING, LUB
