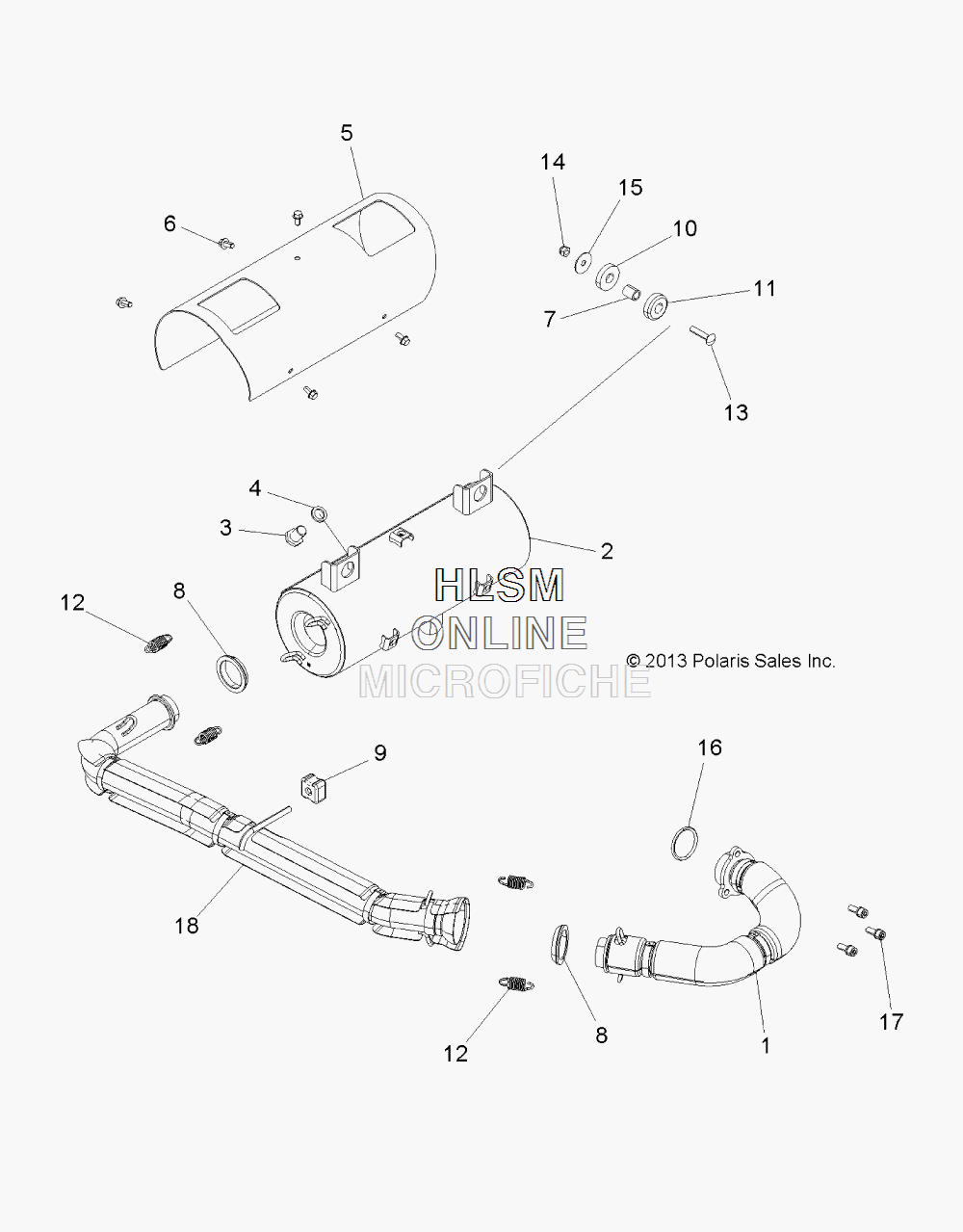

EXHAUST для Polaris RANGER 570 EFI [R14RH57AR] - SOLAR RED - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    1262332 HEADPIPE, FRONT
    HEADPIPE, FRONT
  • 1
    5257664 SHIELD, FRONT, TOP
    SHIELD, FRONT, TOP
  • 1
    5257665 SHIELD, FRONT, BOTTOM
    SHIELD, FRONT, BOTTOM
  • 1
    7081156 CLAMP, HEAT SHIELD
    CLAMP, HEAT SHIELD
  • 2
    1262335-489 SILENCER, BLACK
    SILENCER, BLACK
  • 3
    7512666 BOLT
    BOLT
  • 4
    7556230 WASHER, CLEAN OUT
    WASHER, CLEAN OUT
  • 5
    5257667 SHIELD, SILENCER
    SHIELD, SILENCER
  • 6
    7518490 SCREW
    SCREW
  • 7
    5010192 BUSHING
    BUSHING
  • 8
    5256385 SEAL, EXHAUST
    SEAL, EXHAUST
  • 9
    5413383 GROMMET, SILENCER MOUNT
    GROMMET, SILENCER MOUNT
  • 10
    5414945 WASHER, RUBBER
    WASHER, RUBBER
  • 11
    5414946 DAMPER, VIBRATION
    DAMPER, VIBRATION
  • 12
    7041789 SPRING, EXHAUST
    SPRING, EXHAUST
  • 13
    7515316 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 14
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 15
    7555716 WASHER, FLAT
    WASHER, FLAT
  • 16
    5253989 GASKET, EXHAUST SEALING
    GASKET, EXHAUST SEALING
  • 17
    7518984 SCREW
    SCREW
  • 18
    1262431 ASM., HEADPIPE, MID
    ASM., HEADPIPE, MID
