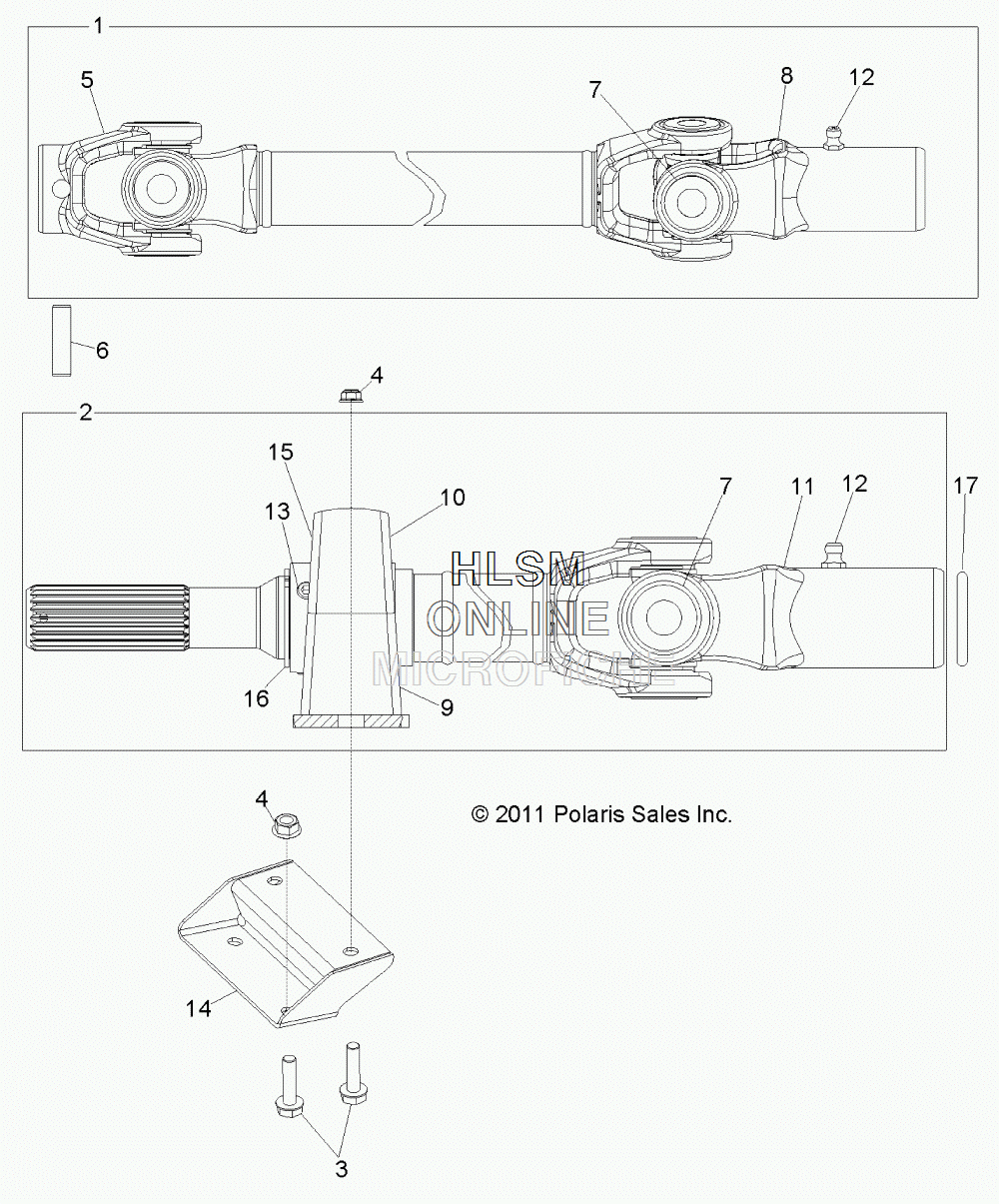

FRONT PROP SHAFT для Polaris RANGER 900 DIESEL SAGE BRUSH METALLIC (R13TH90DG) - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    1332900 ASM., PROPSHAFT, FRONT, SPLIT (INCL. 5,7,8,12)
    ASM., PROPSHAFT, FRONT, SPLIT (INCL. 5,7,8,12)
  • 2
    1332901 ASM., PROPSHAFT, FRONT W/BEARING (INCL. 5,7,9-13,15,16)
    ASM., PROPSHAFT, FRONT W/BEARING (INCL. 5,7,9-13,15,16)
  • 3
    7519059 SCREW
    SCREW
  • 4
    7547333 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 5
    3235205 YOKE, SKIP TOOTH
    YOKE, SKIP TOOTH
  • 6
    7661913 PIN, SPRING
    PIN, SPRING
  • 7
    2202015 KIT, CROSS AND BEARING, NONGREASE
    KIT, CROSS AND BEARING, NONGREASE
  • 8
    3235205 YOKE, SKIP TOOTH
    YOKE, SKIP TOOTH
  • 9
    2878336 KIT, BRACKET, PROPSHAFT
    KIT, BRACKET, PROPSHAFT
  • 10
    3514703 BEARING, PROP, FRONT
    BEARING, PROP, FRONT
  • 11
    1590483 YOKE, SPLINED W/FITTING
    YOKE, SPLINED W/FITTING
  • 12
    7080424 FITTING, LUBE
    FITTING, LUBE
  • 13
    7519277 SCREW, SET
    SCREW, SET
  • 14
    5256670 BRACKET, MOUNT, PROPSHAFT BEARING
    BRACKET, MOUNT, PROPSHAFT BEARING
  • 15
    3235256 RING, RUBBER
    RING, RUBBER
  • 16
    7710662 RING, RETAINING
    RING, RETAINING
  • 17
    5411965 O-RING
    O-RING
