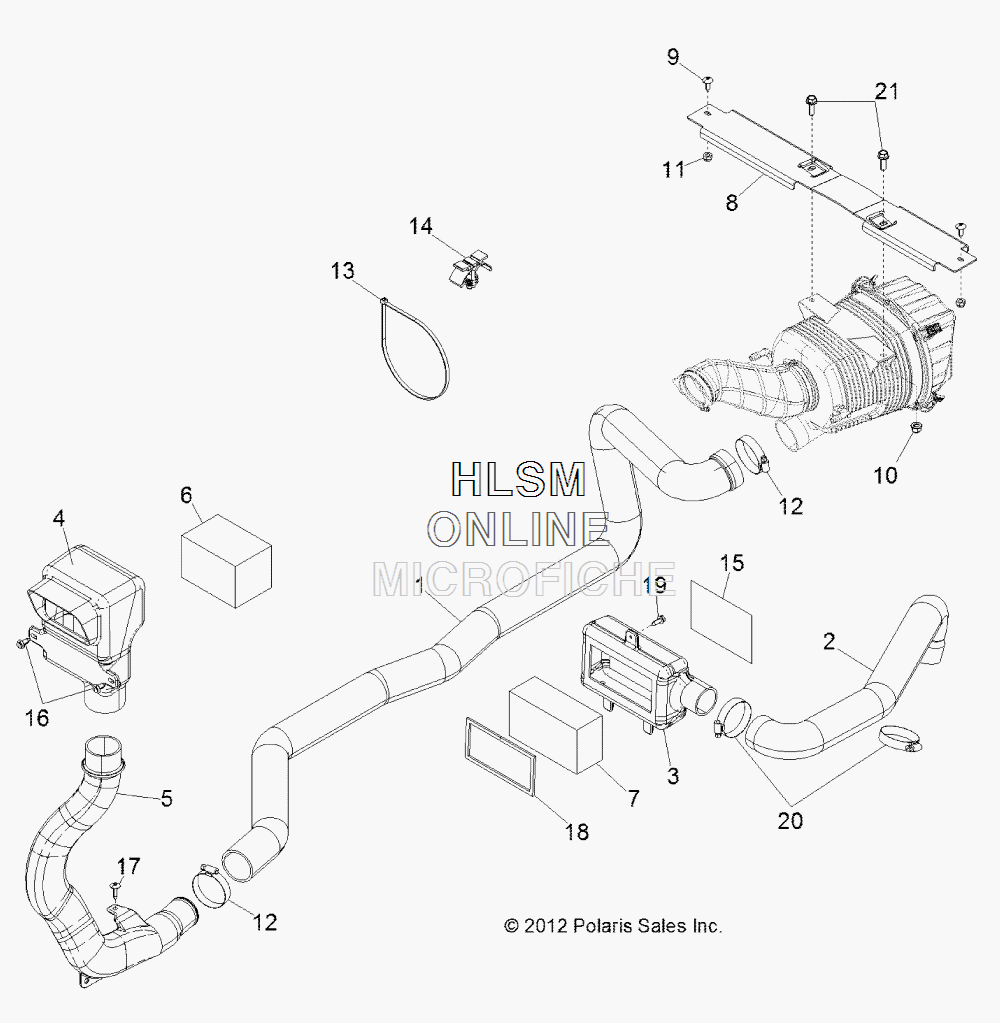

AIR INTAKE для Polaris RANGER 800 EFI MIDSIZE NSO (R13RH76AH) - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    5414492 HOSE, AIR BOX, REAR
    HOSE, AIR BOX, REAR
  • 2
    1911932 HOSE, CLUTCH, INTAKE, FRONT
    HOSE, CLUTCH, INTAKE, FRONT
  • 3
    5437950 BOX, AIR BAFFLING
    BOX, AIR BAFFLING
  • 4
    5438520 DUCT, AIR INTAKE, ENGINE
    DUCT, AIR INTAKE, ENGINE
  • 5
    5438026 DUCT, AIR INTAKE, ENGINE, LOWER
    DUCT, AIR INTAKE, ENGINE, LOWER
  • 6
    5812253 FILTER, INTAKE
    FILTER, INTAKE
  • 7
    7081563 FILTER, CLUTCH, INTAKE
    FILTER, CLUTCH, INTAKE
  • 8
    5254060-329 BRACKET, MOUNT, BLACK
    BRACKET, MOUNT, BLACK
  • 9
    7518280 SCREW
    SCREW
  • 10
    7547332 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 11
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 12
    7080451 CLAMP, HOSE
    CLAMP, HOSE
  • 13
    7080761 CABLE TIE
    CABLE TIE
  • 14
    7080965 MOUNT, CABLE TIE
    MOUNT, CABLE TIE
  • 15
    5812295 FOIL, SEAT
    FOIL, SEAT
  • 16
    7661855 RIVET
    RIVET
  • 17
    7517685 SCREW
    SCREW
  • 18
    5521801 SEAL, CLUTCH INTAKE
    SEAL, CLUTCH INTAKE
  • 19
    7512095 SCREW
    SCREW
  • 20
    7080511 CLAMP, NARROW BANC
    CLAMP, NARROW BANC
  • 21
    7518514 BOLT
    BOLT
