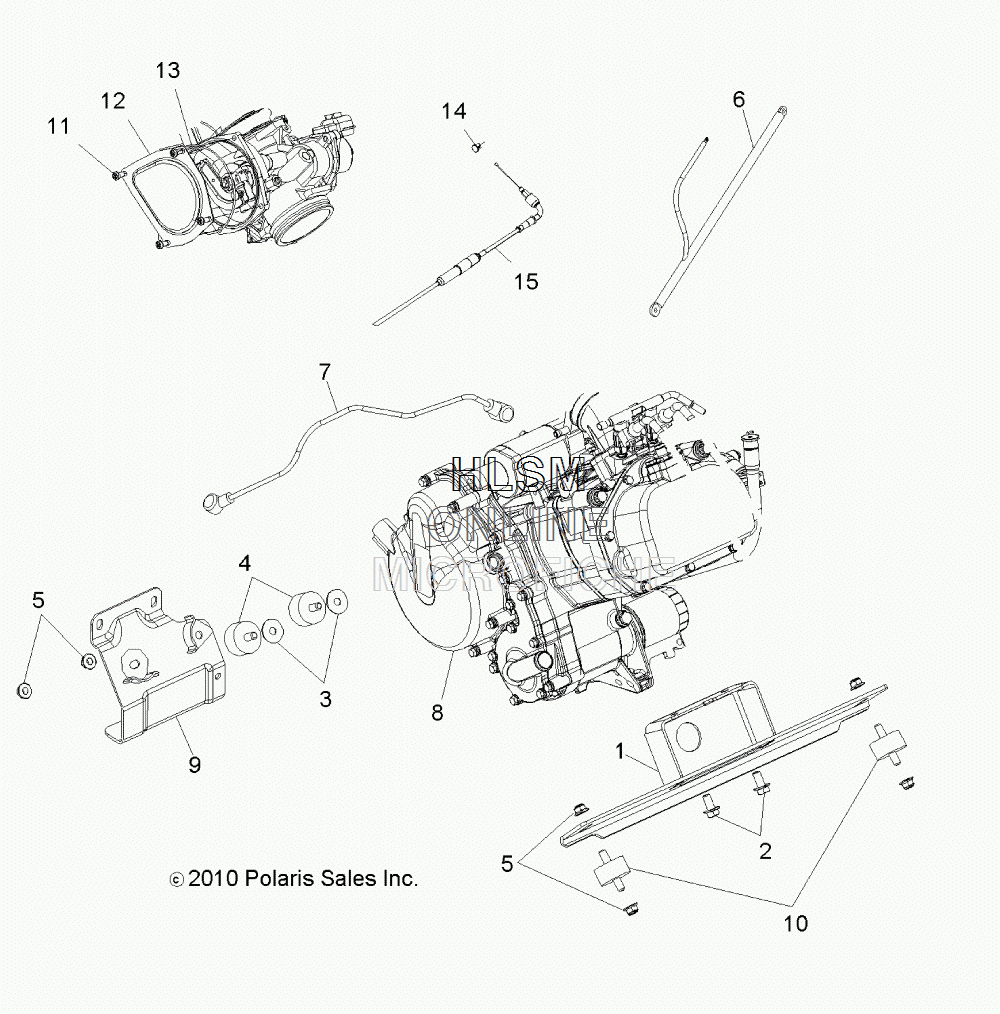

ENGINE MOUNTING W/ SHORT BLOCK для Polaris RANGER 800 6X6 SAGE GREEN (R13HR76AG) - 2013 года выпуска
-
№АртикулНазвание
-
11016420-329 MOUNT, ENGINE, BLACKMOUNT, ENGINE, BLACK
-
27518460 BOLTBOLT
-
37555823 WASHER, FLATWASHER, FLAT
-
43022071 ISOLATORISOLATOR
-
57547263 NUTNUT
-
64012620 CABLE, GROUNDCABLE, GROUND
-
74012621 CABLE, SOLENOID/STARTERCABLE, SOLENOID/STARTER
-
82204394 KIT, SHORT BLOCK (SEE NOTE)KIT, SHORT BLOCK (SEE NOTE)
-
91015065-329 MOUNT, ENGINE, TRANSMISSION, BLACKMOUNT, ENGINE, TRANSMISSION, BLACK
-
103022076 ISOLATORISOLATOR
-
117519292 SCREWSCREW
-
125253974 COVER, THROTTLE, CAMCOVER, THROTTLE, CAM
-
135413898 O-RING, THROTTLE CAM COVERO-RING, THROTTLE CAM COVER
-
143130543 GUIDE, CABLEGUIDE, CABLE
-
157081669 CABLE, THROTTLECABLE, THROTTLE
