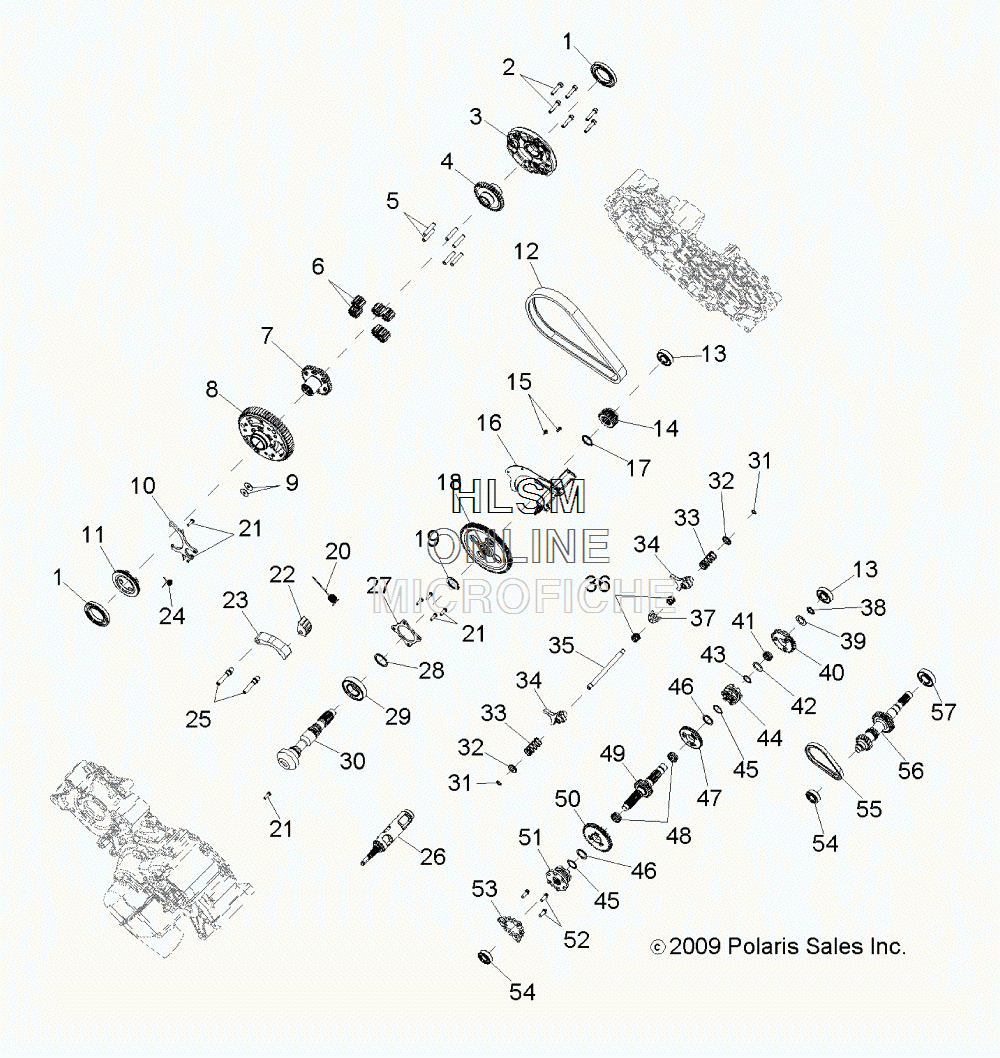

MAIN GEARCASE INTERNAL для Polaris RANGER 500 MIDSIZE SOLAR RED (R13RH50AR) - 2013 года выпуска
-
№АртикулНазвание
-
-1332982 ASM., MAIN GEARCASEASM., MAIN GEARCASE
-
13234275 BEARING, BALLBEARING, BALL
-
23234267 SCREWSCREW
-
33234471 SUBASM., COVERSUBASM., COVER
-
43234363 SUBASM., SIDE, GEAR, 36TSUBASM., SIDE, GEAR, 36T
-
53234238 PIN, DOWELPIN, DOWEL
-
63234469 SUBASM., GEARSUBASM., GEAR
-
73234362 SUBASM., SIDE, GEAR, 36T, DISCONNECTSUBASM., SIDE, GEAR, 36T, DISCONNECT
-
83234470 SUBASM., CARRIERSUBASM., CARRIER
-
93234268 WASHER, FENDERWASHER, FENDER
-
103234285 FORK, SHIFTFORK, SHIFT
-
113234928 DOG, ENGAGEMENTDOG, ENGAGEMENT
-
123234057 CHAINCHAIN
-
133233018 BEARING, BALLBEARING, BALL
-
143234060 SPROCKET, 19TSPROCKET, 19T
-
153233749 SCREWSCREW
-
163234915 DEFLECTOR, OILDEFLECTOR, OIL
-
173233699 RING, RETAININGRING, RETAINING
-
183234062 GEAR, OUTPUT, 91TGEAR, OUTPUT, 91T
-
193233364 RING, RETAININGRING, RETAINING
-
203233431 SPRING, TORSIONSPRING, TORSION
-
213234086 SCREWSCREW
-
223233434 CAM, CHAIN TENSIONERCAM, CHAIN TENSIONER
-
233233433 SHOE, CHAIN TENSIONERSHOE, CHAIN TENSIONER
-
243234276 SPRING, TORSION RETURNSPRING, TORSION RETURN
-
253233432 PIN DOWELPIN DOWEL
-
263234360 DRUM, SHIFTDRUM, SHIFT
-
273234063 COVER, CENTER DRIVE BEARINGCOVER, CENTER DRIVE BEARING
-
283234271 SHIMSHIM
-
293234065 BEARING, BALLBEARING, BALL
-
303234263 PINION, 13T, CENTER DRIVEPINION, 13T, CENTER DRIVE
-
313234090 RING, RETAININGRING, RETAINING
-
323234091 WASHER, CUPWASHER, CUP
-
333234078 SPRING, COMPLESSIONSPRING, COMPLESSION
-
343234077 FORK, SHIFTFORK, SHIFT
-
353234079 RAIL SHIFT SHAFTRAIL SHIFT SHAFT
-
363234089 SPRING, COMPRESSIONSPRING, COMPRESSION
-
373234073 COLLAR, SHIFTCOLLAR, SHIFT
-
383234067 RING, RETAININGRING, RETAINING
-
393233176 WASHER, THRUSTWASHER, THRUST
-
403234917 GEAR, 40T, HELICALGEAR, 40T, HELICAL
-
413233009 BEARING, NEEDLEBEARING, NEEDLE
-
423233855 WASHERWASHER
-
433234336 RING, RETAININGRING, RETAINING
-
443234258 ENGAGEMENT DOGENGAGEMENT DOG
-
453233306 RING, RETAININGRING, RETAINING
-
463234248 WASHER, THRUSTWASHER, THRUST
-
473234290 SPROCKET, 38TSPROCKET, 38T
-
483233103 BEARING, NEEDLEBEARING, NEEDLE
-
493234280 SHAFT, REVERSE, 26TSHAFT, REVERSE, 26T
-
503234291 GEAR, 33TGEAR, 33T
-
513234944 DOGDOG
-
523234247 SCREWSCREW
-
533234943 PLATE, PARKPLATE, PARK
-
543234274 BEARING, BALLBEARING, BALL
-
553234264 CHAINCHAIN
-
563234916 SHAFT, INPUT 34T, HELICALSHAFT, INPUT 34T, HELICAL
-
573233019 BEARINGBEARING
