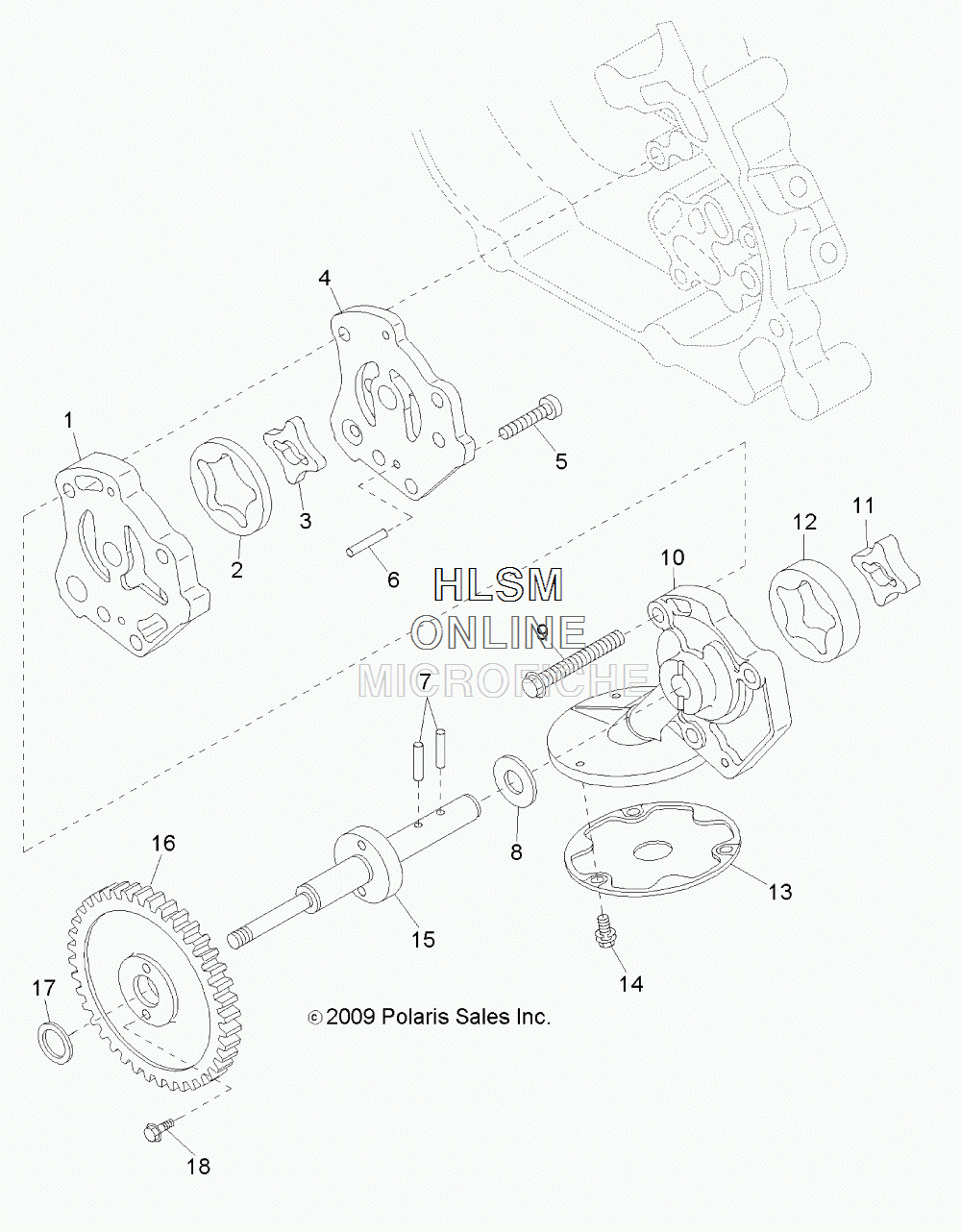

OIL PUMP для Polaris RANGER 500 MIDSIZE SAGE GREEN (R13RH50AG) - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    3084946 PUMP, OIL, CASE 2
    PUMP, OIL, CASE 2
  • 2
    3084949 ROTOR, OUTER, FEED
    ROTOR, OUTER, FEED
  • 3
    3084948 ROTOR, INNER, FEED
    ROTOR, INNER, FEED
  • 4
    3090032 ASM., OIL PUMP (INCL. 1-8,10-15)
    ASM., OIL PUMP (INCL. 1-8,10-15)
  • 4
    3090000 PUMP, OIL, CASE 1
    PUMP, OIL, CASE 1
  • 5
    3085535 SCREW
    SCREW
  • 6
    3084955 PIN, DOWEL
    PIN, DOWEL
  • 7
    3084954 PIN, DOWEL
    PIN, DOWEL
  • 8
    3084953 WASHER
    WASHER
  • 9
    3084962 ASM., BOLT AND WASHER
    ASM., BOLT AND WASHER
  • 10
    3087265 PUMP, OIL, CASE 3
    PUMP, OIL, CASE 3
  • 11
    3084950 ROTOR, INNER
    ROTOR, INNER
  • 12
    3090307 ROTOR, OUTER
    ROTOR, OUTER
  • 13
    3084956 UNIT, OIL STRAINER
    UNIT, OIL STRAINER
  • 14
    3084205 ASM., SCREW AND WASHER
    ASM., SCREW AND WASHER
  • 15
    3085858 SHAFT, PUMP
    SHAFT, PUMP
  • 16
    3090033 GEAR, PUMP, 2
    GEAR, PUMP, 2
  • 17
    3084959 SPACER, 0.8
    SPACER, 0.8
  • 17
    3084960 SPACER, 1.0
    SPACER, 1.0
  • 17
    3084961 SPACER, 1.2
    SPACER, 1.2
  • 18
    3089505 BOLT, FLANGE
    BOLT, FLANGE
