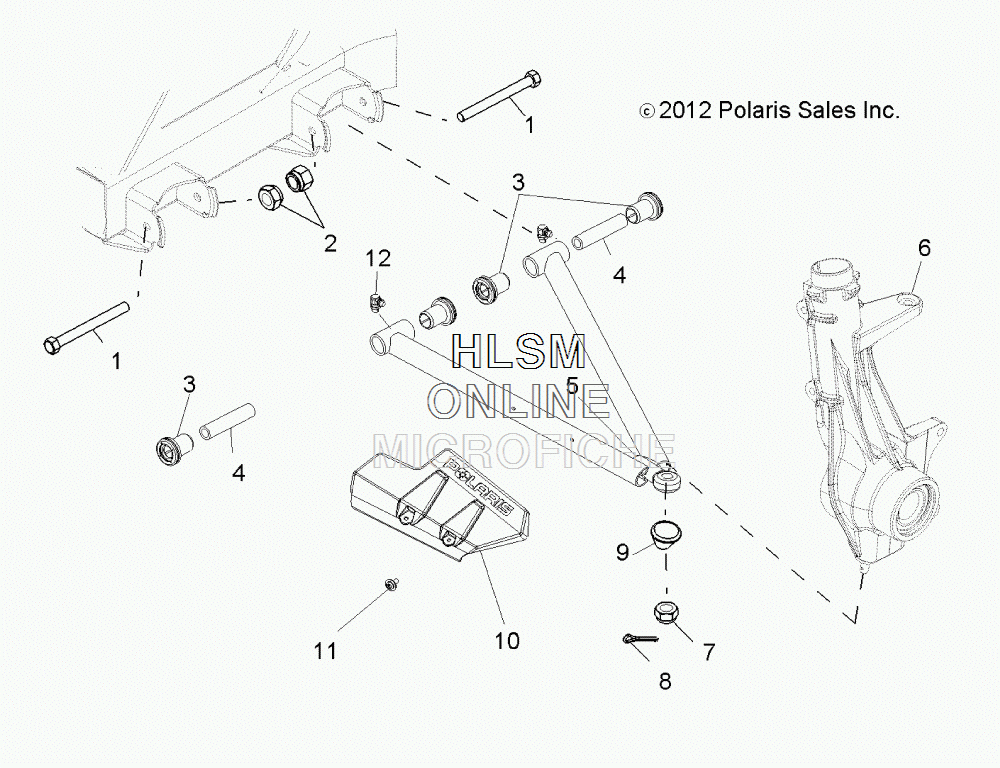

A-ARM AND STRUT MOUNTING для Polaris RANGER 500 CREW CAMO (R13WH50AH) - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    7519043 SCREW
    SCREW
  • 2
    7547333 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 3
    5439270 BUSHING, A-ARM, SHORT, BLACK
    BUSHING, A-ARM, SHORT, BLACK
  • 4
    5137591 SHAFT, PIVOT
    SHAFT, PIVOT
  • 5
    1543141-458 A-FRAME, LEFT HAND, MATTE BLACK
    A-FRAME, LEFT HAND, MATTE BLACK
  • 5
    1543142-458 A-FRAME, RIGHT HAND, MATTE BLACK
    A-FRAME, RIGHT HAND, MATTE BLACK
  • 7
    7542438 NUT, CASTLE
    NUT, CASTLE
  • 8
    7661203 PIN, COTTER
    PIN, COTTER
  • 9
    5412658 BOOT, RUBBER
    BOOT, RUBBER
  • 10
    5437544-070 SHIELD, CV, FRONT, LEFT HAND, BLACK
    SHIELD, CV, FRONT, LEFT HAND, BLACK
  • 10
    5437545-070 SHIELD, CV, FRONT, RIGHT HAND, BLACK
    SHIELD, CV, FRONT, RIGHT HAND, BLACK
  • 11
    7512084 SCREW
    SCREW
  • 12
    7080433 FITTING, LUBRICATION
    FITTING, LUBRICATION
