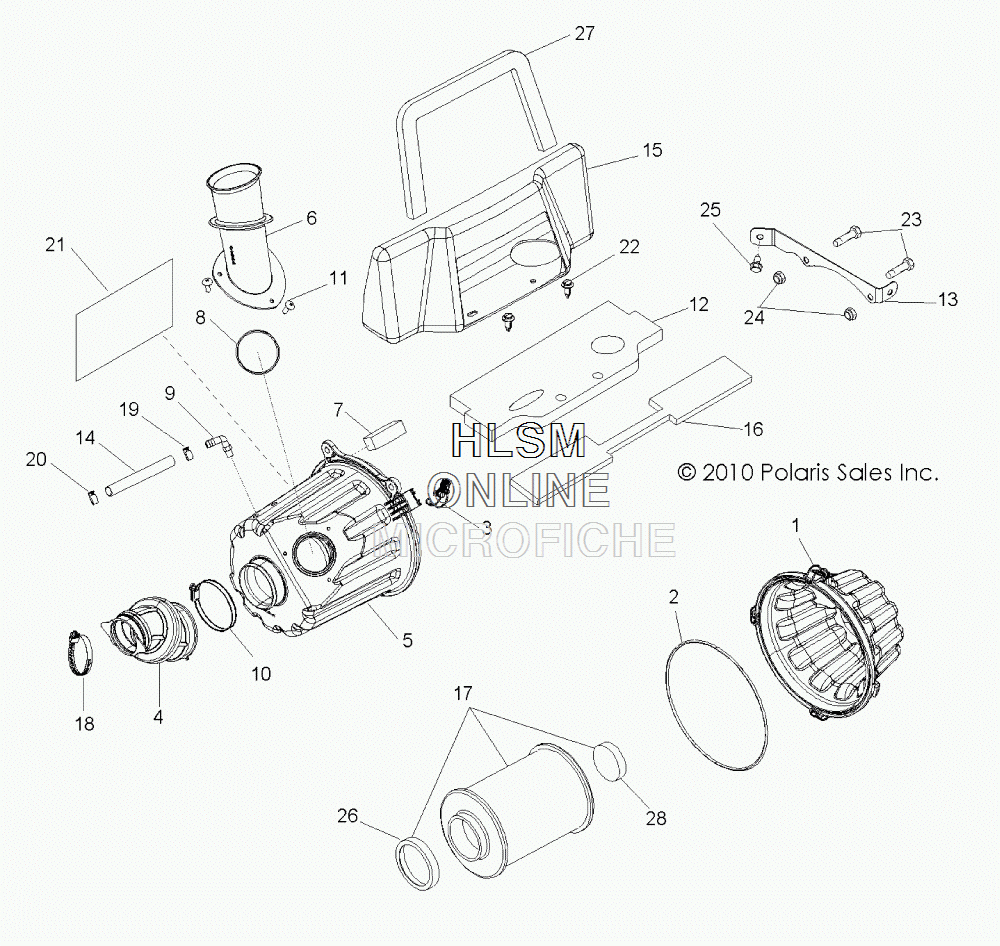

AIR INTAKE SYSTEM для Polaris RANGER RZR 800 EFI/EPS [VH76AF] - 2012 года выпуска`
-
№АртикулНазвание
-
11240432 ASM., AIR INTAKE, LID (INCL. 2,3)ASM., AIR INTAKE, LID (INCL. 2,3)
-
25813078 SEAL, AIRBOXSEAL, AIRBOX
-
37710621 CLIP, COVERCLIP, COVER
-
45413974 BOOT, THROTTLE BODYBOOT, THROTTLE BODY
-
55436733 CAN, AIRBOXCAN, AIRBOX
-
65437674 DUCT, INTAKE, ENGINEDUCT, INTAKE, ENGINE
-
75812910 FILTER, CRANKCASEFILTER, CRANKCASE
-
85813099 SEAL, DUCT, INTAKESEAL, DUCT, INTAKE
-
97052164 FITTING, 90 DEGREEFITTING, 90 DEGREE
-
107081279 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
117517317 SCREWSCREW
-
125813617 FOAM, SEAL, PRIMARYFOAM, SEAL, PRIMARY
-
135250302 BRACKET, MOUNTBRACKET, MOUNT
-
145414039 HOSE, BREATHERHOSE, BREATHER
-
155438306-070 BOX, INTAKE BLACKBOX, INTAKE BLACK
-
165813302 SEAL, INTAKESEAL, INTAKE
-
171240482 ASM., FILTER, INTAKE (INCL. FILTER,26,28)ASM., FILTER, INTAKE (INCL. FILTER,26,28)
-
187080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
197080699 CLAMP, HOSE, SPRING, .69 INCHCLAMP, HOSE, SPRING, .69 INCH
-
207080694 CLAMP, HOSE, SPRING, .75 INCHCLAMP, HOSE, SPRING, .75 INCH
-
215813106 FOILFOIL
-
227661855 RIVETRIVET
-
237515317 BOLTBOLT
-
247542324 NUT, NYLOKNUT, NYLOK
-
257512399 SCREWSCREW
-
265437936 RING, FILTERRING, FILTER
-
275813649 FOAM, SEAL, FRONTFOAM, SEAL, FRONT
-
285813299 FOAM, FILTER, ENDFOAM, FILTER, END
