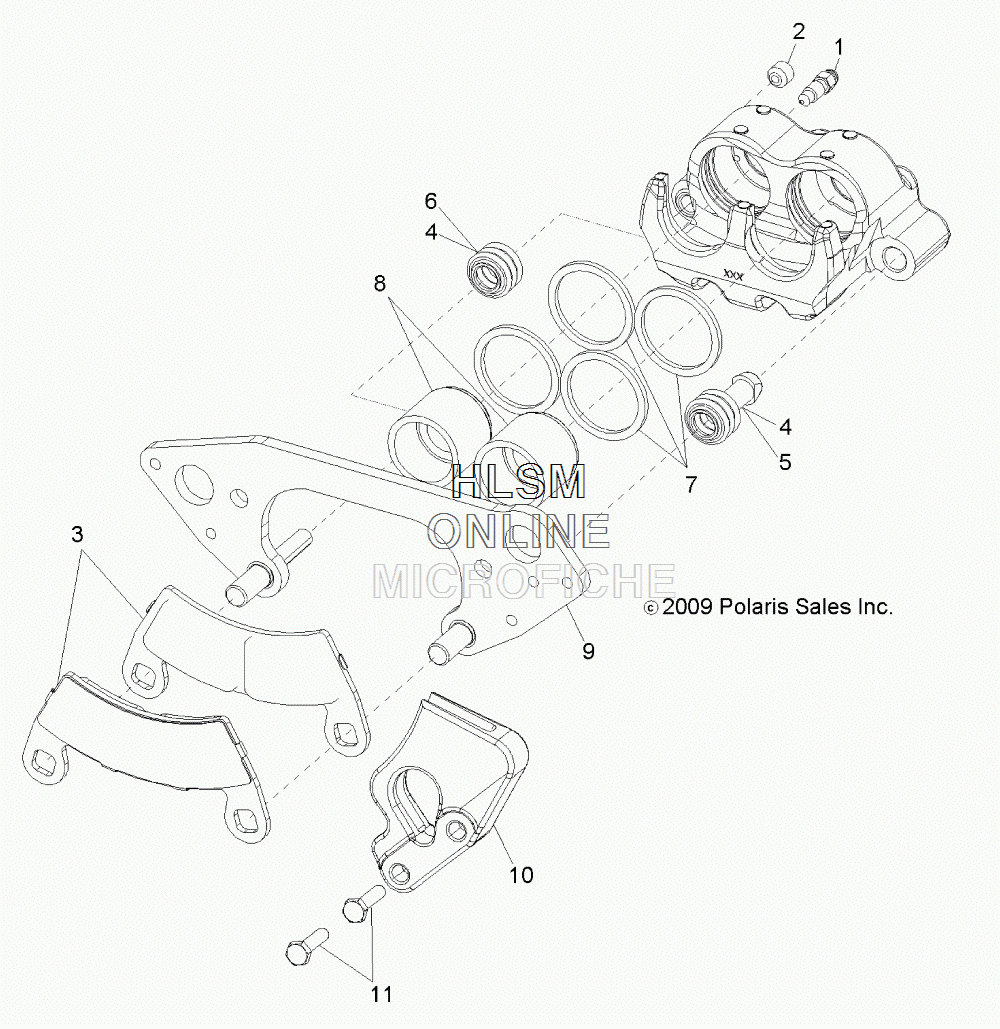

FRONT CALIPER для Polaris RANGER 6X6 800 - SOLAR RED [R12HR76AR] - 2012 года выпуска

  • №
    Артикул
    Название
  • 11
    1911283 ASM., CALIPER, BRAKE, DOUBLE BORE, LEFT HAND (INCL. 1-9)
    ASM., CALIPER, BRAKE, DOUBLE BORE, LEFT HAND (INCL. 1-9)
  • 7
    1911284 ASM., CALIPER, DOUBLE BORE, BRAKE, RIGHT HAND (INCL. 1-9)
    ASM., CALIPER, DOUBLE BORE, BRAKE, RIGHT HAND (INCL. 1-9)
  • 1
    7081343 SCREW, BLEEDER
    SCREW, BLEEDER
  • 2
    7518863 SCREW, SOCKET SET
    SCREW, SOCKET SET
  • 3
    2203747 KIT, BRAKE PAD ASM.
    KIT, BRAKE PAD ASM.
  • 4
    1930642 KIT, FRONT BRAKE BOOT (INCL. 4,5)
    KIT, FRONT BRAKE BOOT (INCL. 4,5)
  • 5
    5412505 BOOT, BUSHING
    BOOT, BUSHING
  • 6
    5412506 BOOT, PIN SEAL
    BOOT, PIN SEAL
  • 7
    5412907 SEAL, CALIPER, INNER
    SEAL, CALIPER, INNER
  • 8
    5135134 PISTON, CALIPER
    PISTON, CALIPER
  • 9
    1911282 ASM., CALIPER, MOUNT, DOUBLE BORE
    ASM., CALIPER, MOUNT, DOUBLE BORE
  • 10
    5438948 SCRAPER, BRAKE, FRONT
    SCRAPER, BRAKE, FRONT
  • 11
    7516823 SCREW
    SCREW
