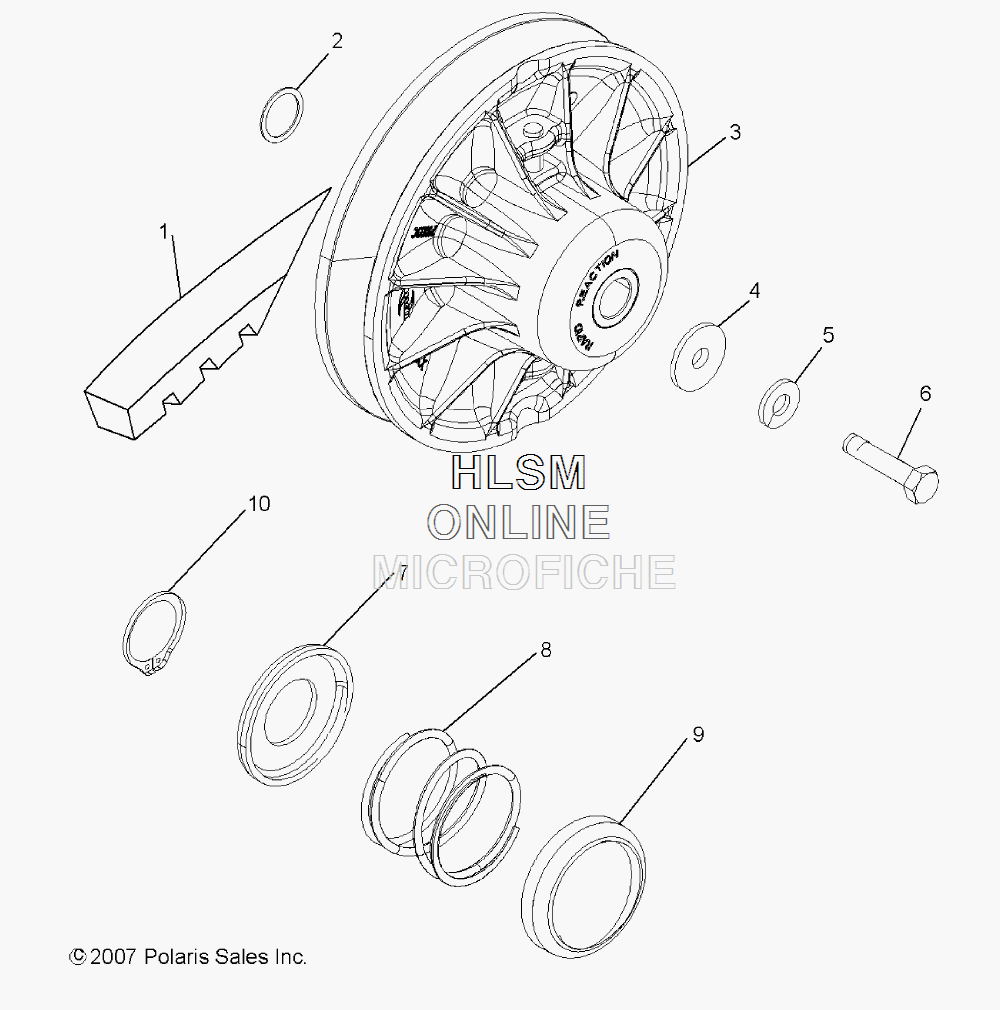

CLUTCH- SECONDARY для Polaris RANGER 6X6 800 - SAGEBRUSH GREEN METALLIC [R12HR76AG] - 2012 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    3211133 BELT, DRIVE
    BELT, DRIVE
  • 2
    7556120 BUSHING (.03 INCH)
    BUSHING (.03 INCH)
  • 2
    7556454 WASHER (.06 INCH)
    WASHER (.06 INCH)
  • 3
    1322848 ASM., DRIVEN CLUTCH (INCL. 7-10)
    ASM., DRIVEN CLUTCH (INCL. 7-10)
  • 4
    5220646 WASHER, DOMED
    WASHER, DOMED
  • 5
    7552901 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 6
    7515382 BOLT
    BOLT
  • 7
    7710563 RETAINER, SPRING, OUTER
    RETAINER, SPRING, OUTER
  • 8
    7043167 SPRING, COMPRESSION, BLACK/ALMOND
    SPRING, COMPRESSION, BLACK/ALMOND
  • 9
    3234616 RETAINER, SPRING, INNER
    RETAINER, SPRING, INNER
  • 10
    7710522 RING, RETAINING
    RING, RETAINING
