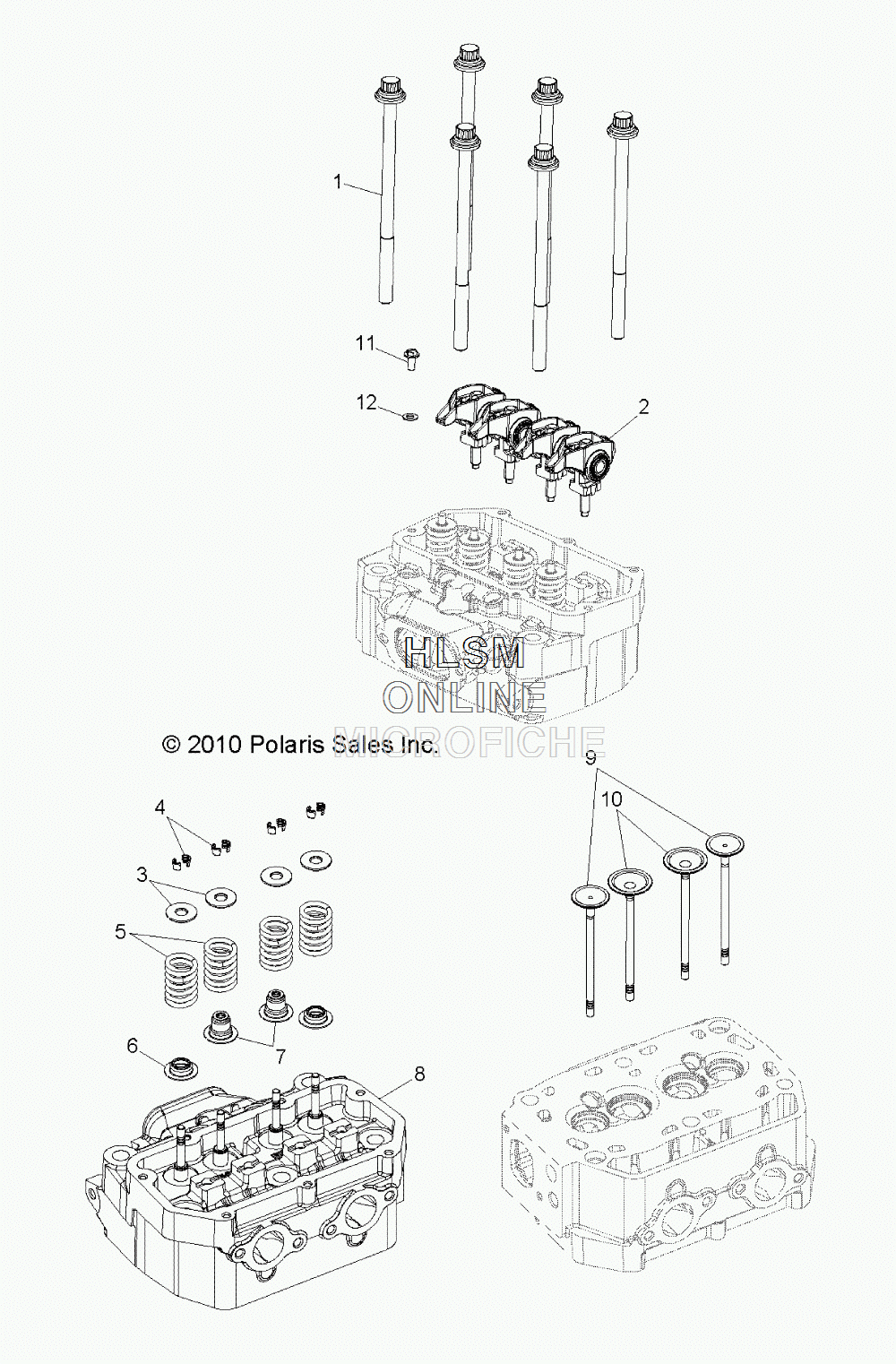

CYLINDER HEAD W/ VALVES для Polaris RANGER RZR 4/EPS RGE - BLACK [R11XH76AZ] - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    7519219 BOLT-HEAD, M11X1.25, SEMS
    BOLT-HEAD, M11X1.25, SEMS
  • 2
    1202169 ASM., ARM, ROCKER
    ASM., ARM, ROCKER
  • 3
    5136932 RETAINER, SPRING
    RETAINER, SPRING
  • 4
    5910042 RETAINER, LOCK
    RETAINER, LOCK
  • 5
    7043318 SPRING, VALVE
    SPRING, VALVE
  • 6
    5910329 SEAT, VALVE SPRING
    SEAT, VALVE SPRING
  • 7
    5413747 SEAL, VALVE
    SEAL, VALVE
  • 8
    3022208 HEAD, CYLINDER
    HEAD, CYLINDER
  • 9
    5137264 VALVE-EXHAUST HIGH TEMP 30MM
    VALVE-EXHAUST HIGH TEMP 30MM
  • 10
    5137265 VALVE-INTAKE 35MM
    VALVE-INTAKE 35MM
  • 11
    7517679 SCREW, M6X1.0 X 13, SL/HX/FL-Z
    SCREW, M6X1.0 X 13, SL/HX/FL-Z
  • 12
    7555998 WASHER, FLAT
    WASHER, FLAT
