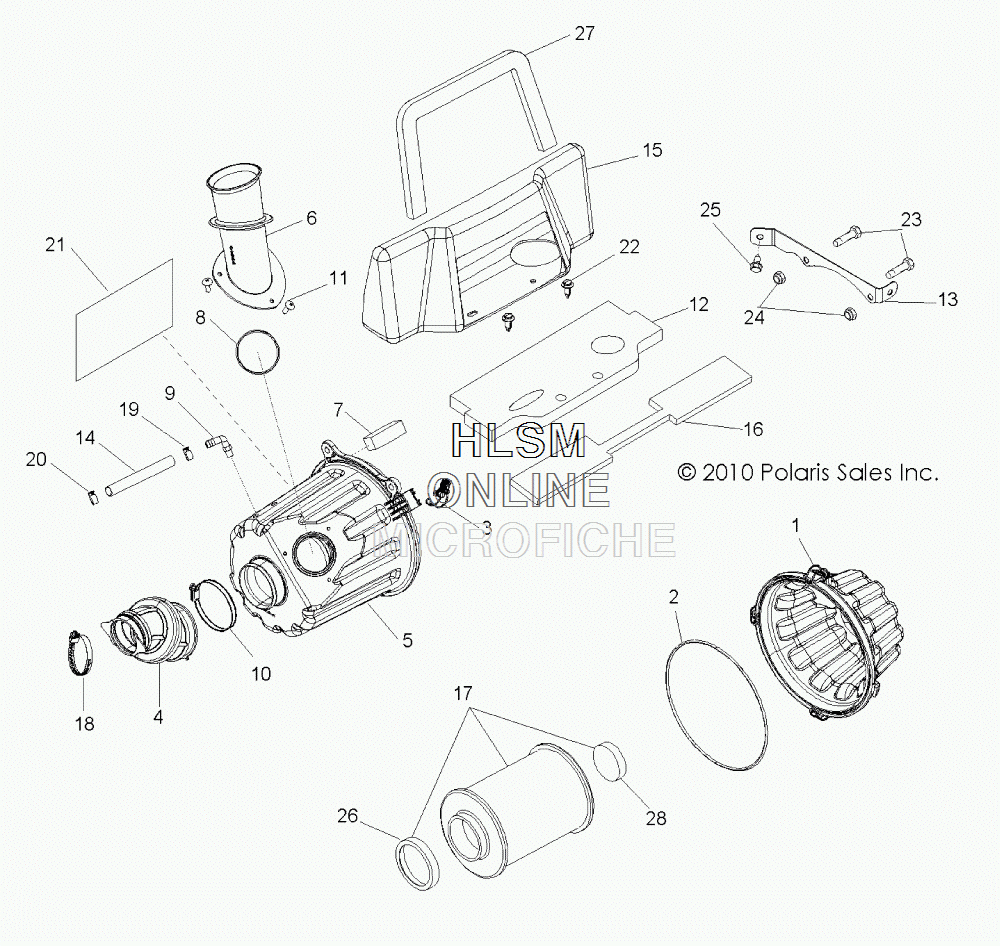

AIR INTAKE SYSTEM W/CLUTCH для Polaris RANGER RZR 4/EPS RGE - BLACK [R11XH76AA] - 2011 года выпуска`
-
№АртикулНазвание
-
11240432 ASM., AIR INTAKE, LID (INCL. 2, 3)ASM., AIR INTAKE, LID (INCL. 2, 3)
-
25813078 SEAL, AIRBOXSEAL, AIRBOX
-
37710621 CLIP, COVERCLIP, COVER
-
45413974 BOOT, THROTTLE BODYBOOT, THROTTLE BODY
-
55436733 CAN, AIRBOXCAN, AIRBOX
-
65437674 DUCT, INTAKE, ENGINEDUCT, INTAKE, ENGINE
-
75812910 FILTER, CRANKCASEFILTER, CRANKCASE
-
85813099 SEAL, DUCT, INTAKESEAL, DUCT, INTAKE
-
97052164 FITTING, 90 DEGREEFITTING, 90 DEGREE
-
107081279 CLAMP, NARROW BAND 70-90MMCLAMP, NARROW BAND 70-90MM
-
117517317 SCREWSCREW
-
125813617 FOAM, SEAL, PRIMARYFOAM, SEAL, PRIMARY
-
135250302 BRACKET, MOUNTBRACKET, MOUNT
-
145414039 HOSE-BREATHER, SLIT, 19.5 CMHOSE-BREATHER, SLIT, 19.5 CM
-
155438306-070 BOX, INTAKE BLACKBOX, INTAKE BLACK
-
165813302 SEAL, INTAKE 20"SEAL, INTAKE 20"
-
171240482 ASM., FILTER, INTAKE (INCL. FILTER, 26, 28)ASM., FILTER, INTAKE (INCL. FILTER, 26, 28)
-
187080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
197080699 CLAMP, HOSE, SPRING, .69 INCHCLAMP, HOSE, SPRING, .69 INCH
-
207080694 CLAMP, HOSE, SPRING, .75 INCHCLAMP, HOSE, SPRING, .75 INCH
-
215813106 FOILFOIL
-
227661855 RIVET-TUFLOK, .315-.325X.787RIVET-TUFLOK, .315-.325X.787
-
237515317 BOLTBOLT
-
247542324 NUT, NYLOKNUT, NYLOK
-
257512399 SCREWSCREW
-
265437936 RING, FILTERRING, FILTER
-
275813649 FOAM, SEAL, FRONTFOAM, SEAL, FRONT
-
285813299 FOAM, FILTER, ENDFOAM, FILTER, END
