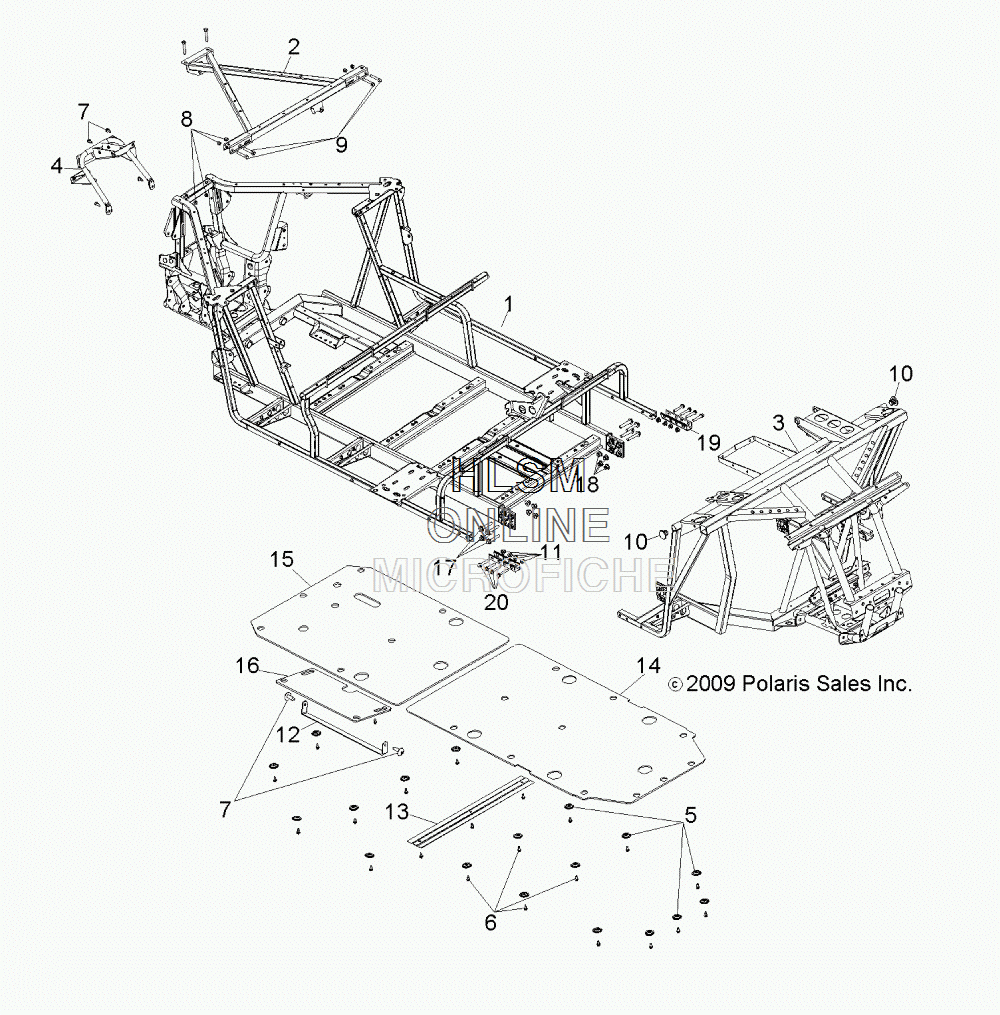

FRAME-MAIN W/ SKID PLATE для Polaris RANGER RZR 4 INTL. - BOARDWALK BLUE [R11XY76FX] - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    1017839-458 FRAME, MAIN (MATTE BLACK)
    FRAME, MAIN (MATTE BLACK)
  • 2
    1015723-458 BRACE, BOLT IN (MATTE BLACK)
    BRACE, BOLT IN (MATTE BLACK)
  • 3
    1017802-458 FRAME, FRONT (MATTE BLACK)
    FRAME, FRONT (MATTE BLACK)
  • 4
    1015937-329 SUPPORT, BUMPER, REAR
    SUPPORT, BUMPER, REAR
  • 5
    7556065 WASHER, SKID PLATE
    WASHER, SKID PLATE
  • 6
    7517386 SCREW
    SCREW
  • 7
    7515399 SCREW
    SCREW
  • 8
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 9
    7515319 BOLT
    BOLT
  • 10
    5437721 CAPLUG
    CAPLUG
  • 11
    7547317 NUT
    NUT
  • 12
    5253889-458 BRACKET, SKID, FUEL TANK (MATTE BLACK)
    BRACKET, SKID, FUEL TANK (MATTE BLACK)
  • 13
    5253941-458 BRACKET, SKID, COUPLER (MATTE BLACK)
    BRACKET, SKID, COUPLER (MATTE BLACK)
  • 14
    5438148-070 PLATE, SKID, FRONT (BLACK)
    PLATE, SKID, FRONT (BLACK)
  • 15
    5438355-070 PLATE, SKID, REAR (BLACK)
    PLATE, SKID, REAR (BLACK)
  • 16
    5438377-070 PLATE, SKID, FUEL TANK (BLACK)
    PLATE, SKID, FUEL TANK (BLACK)
  • 17
    7518474 BOLT
    BOLT
  • 18
    7547313 NUT
    NUT
  • 19
    5253873-458 BRACKET, COUPLER FRAME, EXT, SIDE (MATTE BLACK)
    BRACKET, COUPLER FRAME, EXT, SIDE (MATTE BLACK)
  • 20
    7516732 SCREW
    SCREW
