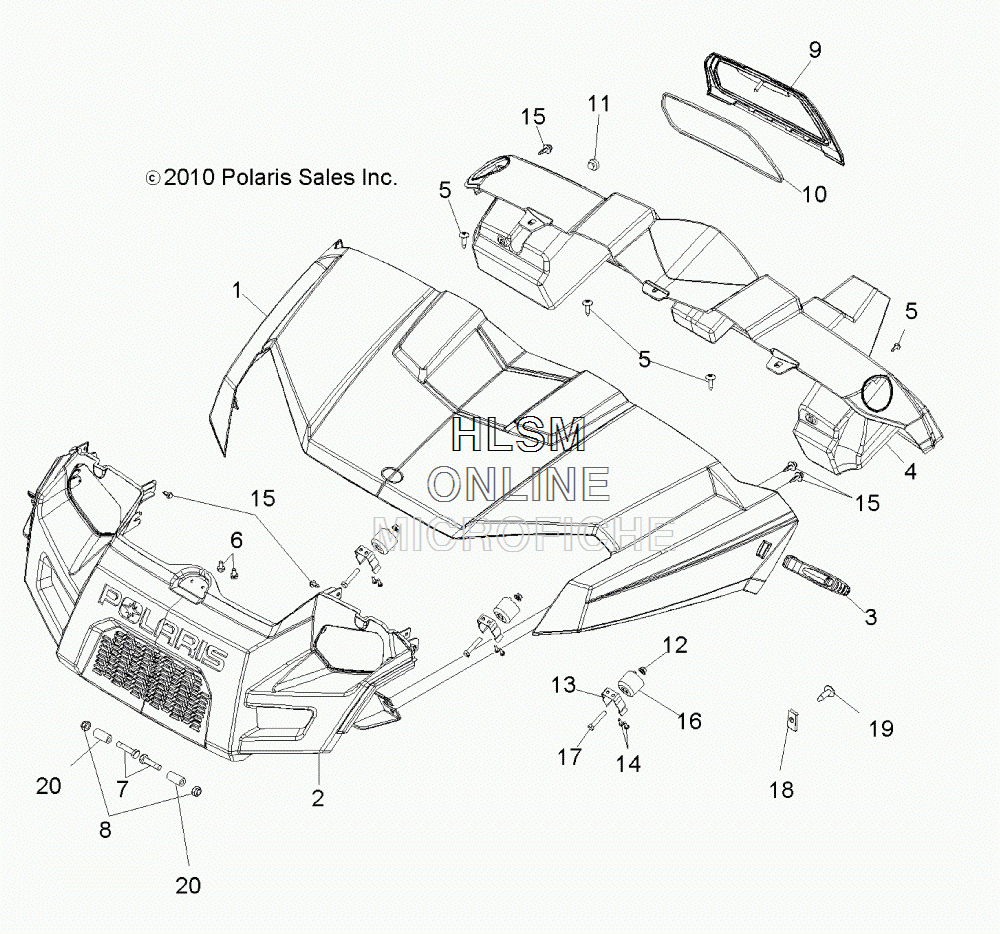

HOOD W/ DASH AND GRILL для Polaris RANGER EV 4X4 INTL - CAMO [R11RC08FH] - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    5438258-587 HOOD (CAMO) (GH) (FH)
    HOOD (CAMO) (GH) (FH)
  • 2
    5437818-070 GRILLE, HOOD (BLACK)
    GRILLE, HOOD (BLACK)
  • 3
    5412606 STRAP, HOOD RETAINER
    STRAP, HOOD RETAINER
  • 4
    5438696-070 DASH (BLACK)
    DASH (BLACK)
  • 5
    7517685 SCREW
    SCREW
  • 6
    7512095 SCREW
    SCREW
  • 7
    7518533 BOLT, FLANGE (BLACK)
    BOLT, FLANGE (BLACK)
  • 8
    7547453 NUT-HXFL-M6X1.0 8 ZB3 NYL
    NUT-HXFL-M6X1.0 8 ZB3 NYL
  • 9
    5438046-070 COVER, GLOVE BOX (BLACK)
    COVER, GLOVE BOX (BLACK)
  • 10
    5521789 SEAL, GLOVE BOX
    SEAL, GLOVE BOX
  • 11
    5412504 GROMMET-RUBBER, MOUNT, 25"
    GROMMET-RUBBER, MOUNT, 25"
  • 12
    7547440 NUT-HXFL M8X1.25 ZOD
    NUT-HXFL M8X1.25 ZOD
  • 13
    7661976 CLIP, HOOD MOUNT
    CLIP, HOOD MOUNT
  • 14
    7512026 SCREW
    SCREW
  • 15
    7661855 RIVET-TUFLOK, .315-.325X.787 (50)
    RIVET-TUFLOK, .315-.325X.787 (50)
  • 16
    5438280 SPACER, HOOD, CLAMP
    SPACER, HOOD, CLAMP
  • 17
    7519097 SCREW-HH M8X1.25X45 8.8 ZOD
    SCREW-HH M8X1.25X45 8.8 ZOD
  • 18
    7670057 NUT, U-TYPE SPEED
    NUT, U-TYPE SPEED
  • 19
    7518280 SCREW-1/4-20X.75, TR/TX-M
    SCREW-1/4-20X.75, TR/TX-M
  • 20
    5253563 SPACER
    SPACER
