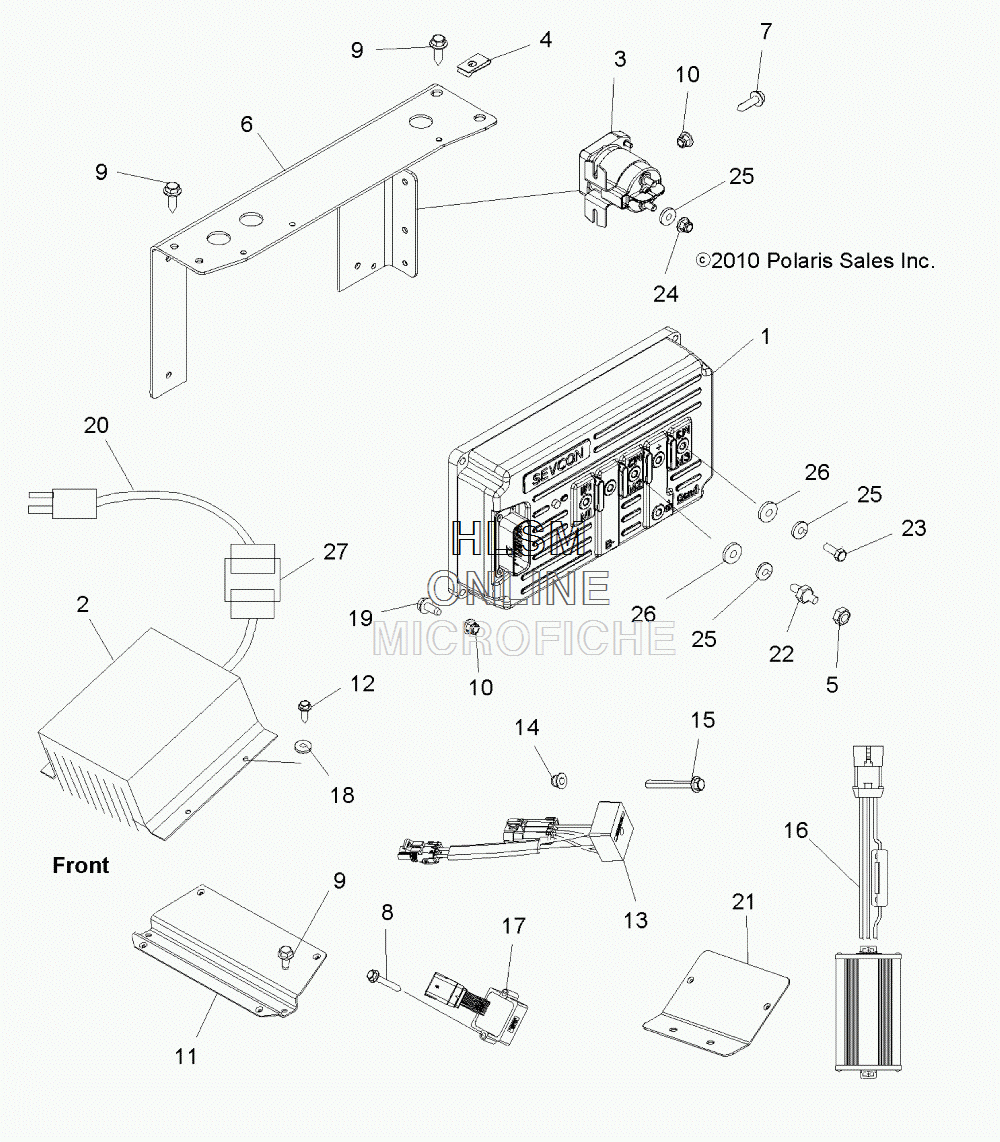

MODULES AND CONTROLLERS для Polaris POLARIS LSV 4X4 - SAGEBRUSH GREEN METALLIC [R11RC08LG] - 2011 года выпуска
-
№АртикулНазвание
-
14013025 ASM., CONTROLLER, PROGRAMMED (INCL. 23,25,26)ASM., CONTROLLER, PROGRAMMED (INCL. 23,25,26)
-
24013021 CHARGER, ONBOARD, 48VCHARGER, ONBOARD, 48V
-
34012818 ASM., CONTACTOR, 48VASM., CONTACTOR, 48V
-
47547476 NUT-U CLIP, CHIMNEY,M8X1.25NUT-U CLIP, CHIMNEY,M8X1.25
-
57547317 NUT-M8X1.25, HXFLG,NYLON INSNUT-M8X1.25, HXFLG,NYLON INS
-
65253457 BRACKET, MOUNTING, CONTROLLERBRACKET, MOUNTING, CONTROLLER
-
77518535 BOLT-M6X1.0X25, TORX,PNHD,BLKBOLT-M6X1.0X25, TORX,PNHD,BLK
-
87519090 SCREW-HXFL-M6X1.0X50 TDFM ZPBSCREW-HXFL-M6X1.0X50 TDFM ZPB
-
97518555 BOLT-M8X1.25X20, HXFLG,TAP/R-ODBOLT-M8X1.25X20, HXFLG,TAP/R-OD
-
107547339 NUT-M6X1.0, FLG-NYLOC-OLIVE DNUT-M6X1.0, FLG-NYLOC-OLIVE D
-
115253458-458 BRACKET, MOUNTING, CHARGER (MATTE BLACK)BRACKET, MOUNTING, CHARGER (MATTE BLACK)
-
127518529 SCREW-M6X1.0X20, HXHD,FLG,TDFM,BLSCREW-M6X1.0X20, HXHD,FLG,TDFM,BL
-
134012829 RELAY, SOLID STATERELAY, SOLID STATE
-
147547274 NUT, FLANGE, NYLOK M6NUT, FLANGE, NYLOK M6
-
157518612 BOLT-M6X1.0X35, HXFLG/SH-OLV DBOLT-M6X1.0X35, HXFLG/SH-OLV D
-
164013023 CONVERTOR, 48V DC/12V DCCONVERTOR, 48V DC/12V DC
-
174012812 MODULEMODULE
-
187556560 WASHER, INT/EXT. LOCKWASHER, INT/EXT. LOCK
-
197518612 BOLT-M6X1.0X35, HXFLG/SH-OLV DBOLT-M6X1.0X35, HXFLG/SH-OLV D
-
204012836 CABLE, CHARGINGCABLE, CHARGING
-
215254634-458 BRACKET, DC/DC CONVERTER (MATTE BLACK)BRACKET, DC/DC CONVERTER (MATTE BLACK)
-
227519183 STUD-M8X1.25X14X14STUD-M8X1.25X14X14
-
237518695 BOLT-M8X1.25X16, HXHDFLG,W/PTCHBOLT-M8X1.25X16, HXHDFLG,W/PTCH
-
247547469 NUT-HEX JAM 5/16-24 GR2 STL ZCNUT-HEX JAM 5/16-24 GR2 STL ZC
-
257556528 WASHER-8.5X14.8X1.9 ZPCWASHER-8.5X14.8X1.9 ZPC
-
267558402 WASHER, FLATWASHER, FLAT
-
275521655 TUBE, HEAT SHRINK-1"IDX2.5",4:1TUBE, HEAT SHRINK-1"IDX2.5",4:1
