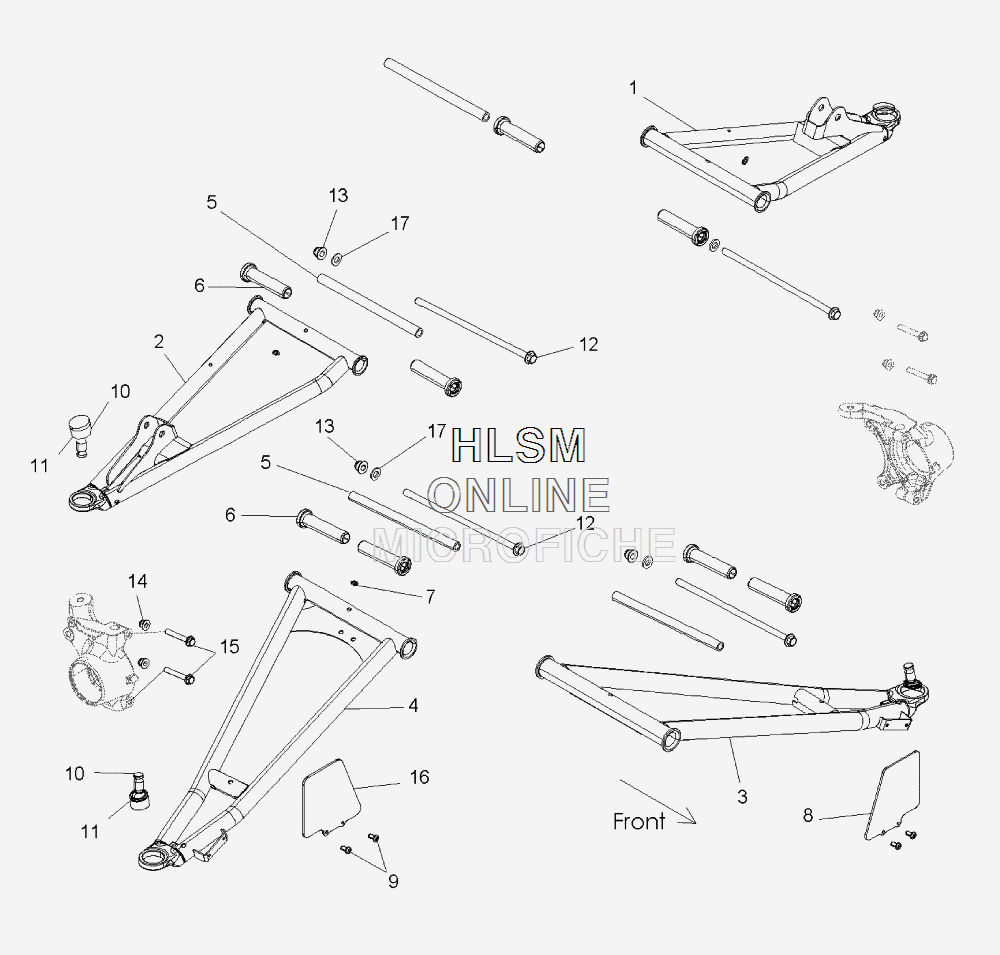

SUSPENSION- FRONT CONTROL ARMS для Polaris RANGER RZR (S) 800 EFI INTL BLACK [R10VH76FX] - 2010 года выпуска
-
№АртикулНазвание
-
11016477-458 ARM, CONTROL, UPPER, FRONT (MATTE' BLACK), LEFT HANDARM, CONTROL, UPPER, FRONT (MATTE' BLACK), LEFT HAND
-
21016478-458 ARM, CONTROL, UPPER, FRONT (MATTE' BLACK), RIGHT HANDARM, CONTROL, UPPER, FRONT (MATTE' BLACK), RIGHT HAND
-
31016479-458 ARM, CONTROL, LOWER, FRONT (MATTE' BLACK), LEFT HANDARM, CONTROL, LOWER, FRONT (MATTE' BLACK), LEFT HAND
-
41016480-458 ARM, CONTROL, LOWER, FRONT (MATTE' BLACK), RIGHT HANDARM, CONTROL, LOWER, FRONT (MATTE' BLACK), RIGHT HAND
-
55137104 TUBE, PIVOTTUBE, PIVOT
-
65436973 BUSHING, A-ARM, LONGBUSHING, A-ARM, LONG
-
77080510 FITTING, ZERKFITTING, ZERK
-
85436620-070 SHIELD, CV, FRONT (BLACK), LEFT HANDSHIELD, CV, FRONT (BLACK), LEFT HAND
-
97512084 SCREWSCREW
-
107081580 JOINT, BALLJOINT, BALL
-
117710533 RING, RETAININGRING, RETAINING
-
127519087 SCREW, FLANGEDSCREW, FLANGED
-
137547333 NUT, FLANGEDNUT, FLANGED
-
147547405 NUT, NYLOKNUT, NYLOK
-
157516733 SCREW, FLANGESCREW, FLANGE
-
165437246-070 SHIELD, CV, FRONT (BLACK), RIGHT HANDSHIELD, CV, FRONT (BLACK), RIGHT HAND
-
177556153 WASHERWASHER
