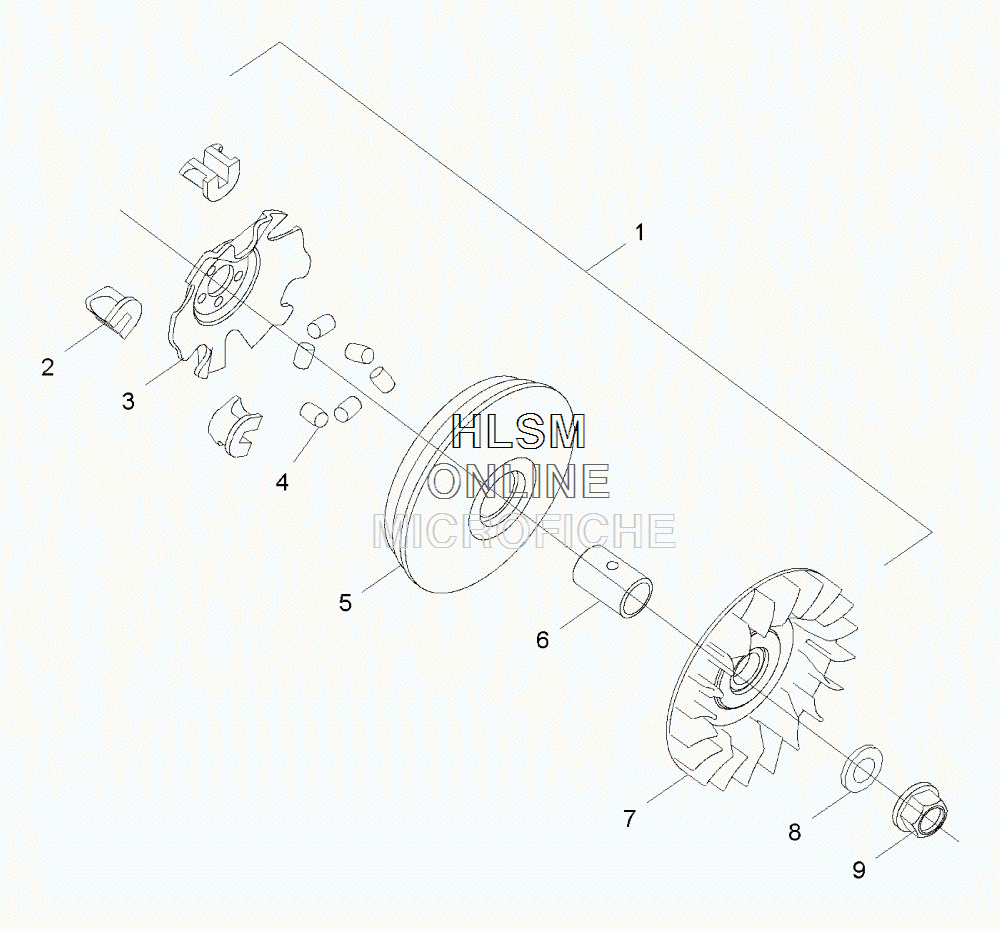

DRIVE TRAIN- CLUTCH- PRIMARY для Polaris RANGER RZR 170 PINK [R10VA17AD] - 2010 года выпуска`
-
№АртикулНазвание
-
10454463 ASM., DRIVE CLUTCH (INCL. 2-7)ASM., DRIVE CLUTCH (INCL. 2-7)
-
20454462 BUSHING, SLIDE, CLUTCHBUSHING, SLIDE, CLUTCH
-
30454464 PLATE, SHEAVEPLATE, SHEAVE
-
40454465 ROLLER, CLUTCH, 17G (STD)ROLLER, CLUTCH, 17G (STD)
-
40454619 ROLLER, CLUTCH, 15G (OPT)ROLLER, CLUTCH, 15G (OPT)
-
50454466 SHEAVE, DRIVE CLUTCHSHEAVE, DRIVE CLUTCH
-
60454467 SLEEVE, DRIVE CLUTCHSLEEVE, DRIVE CLUTCH
-
70454468 SHEAVE, MOVEABLESHEAVE, MOVEABLE
-
80452792 WASHER, FLATWASHER, FLAT
-
90450529 NUT, FLANGENUT, FLANGE
