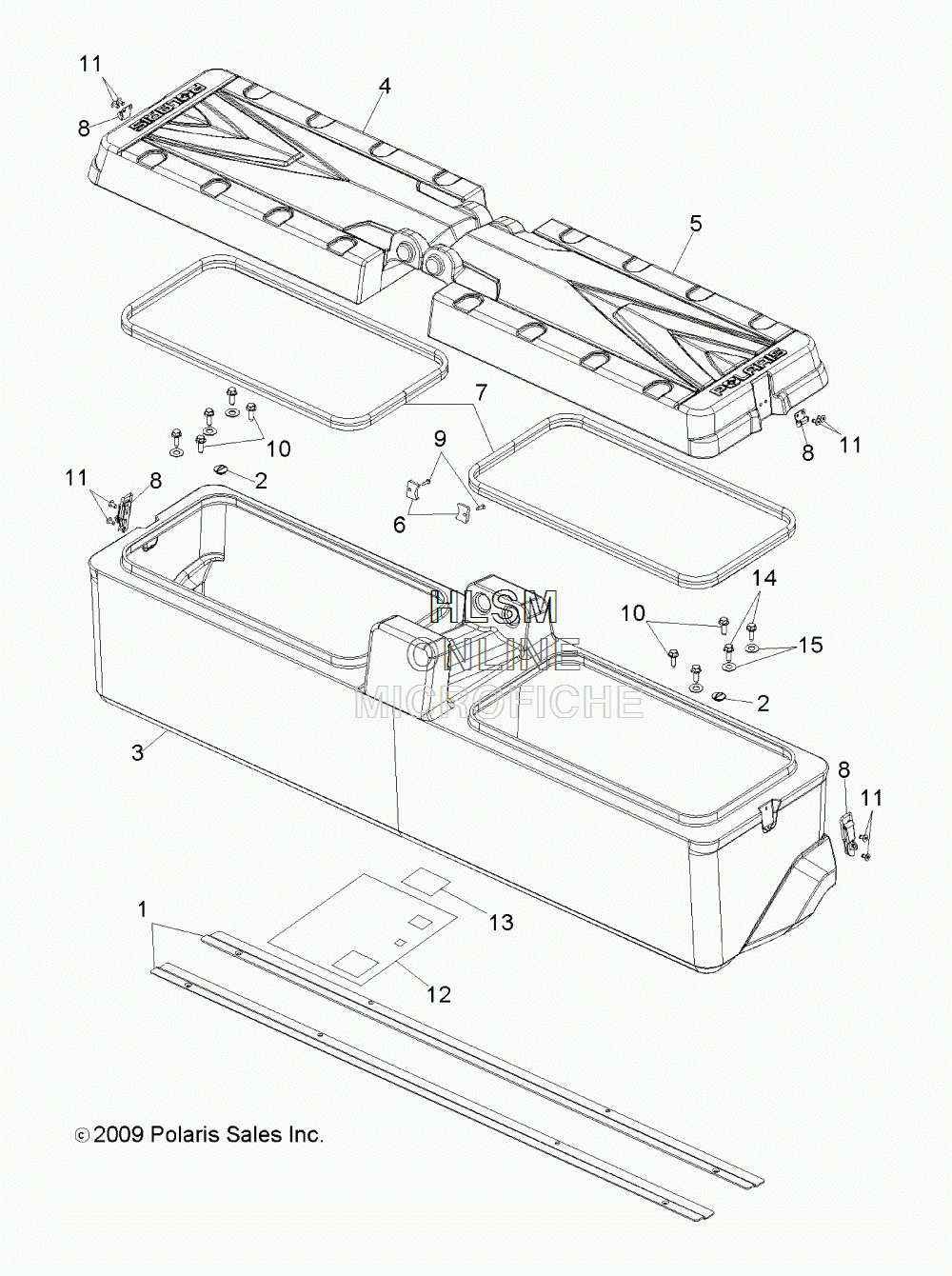

BODY- STORAGE BOX- REAR для Polaris RANGER 6X6 800 EFI SOLAR RED [R10HR76AR] - 2010 года выпуска

  • №
    Артикул
    Название
  • 2
    2633930-070 ASM., STORAGE BOX (BLACK) (INCL. 1-13)
    ASM., STORAGE BOX (BLACK) (INCL. 1-13)
  • 1
    5253697 BRACKET, MOUNT, STORAGE
    BRACKET, MOUNT, STORAGE
  • 2
    5412981 PLUG, COMPARTMENT
    PLUG, COMPARTMENT
  • 3
    5438250-070 BOX, STORAGE BASE (BLACK)
    BOX, STORAGE BASE (BLACK)
  • 4
    5438251-070 LID, STORAGE BOX, LEFT HAND (BLACK)
    LID, STORAGE BOX, LEFT HAND (BLACK)
  • 5
    5438252-070 LID, STORAGE BOX, RIGHT HAND (BLACK)
    LID, STORAGE BOX, RIGHT HAND (BLACK)
  • 6
    5438253-070 TAB, STORAGE BOX (BLACK)
    TAB, STORAGE BOX (BLACK)
  • 7
    5521803 SEAL, STORAGE BOX
    SEAL, STORAGE BOX
  • 8
    7081609 LATCH, STORAGE, LOCKING
    LATCH, STORAGE, LOCKING
  • 9
    7512026 SCREW
    SCREW
  • 10
    7519156 SCREW
    SCREW
  • 11
    7519091 SCREW
    SCREW
  • 12
    5813566 FOIL, BOX, STORAGE
    FOIL, BOX, STORAGE
  • 13
    5813567 FOIL, BOX, STORAGE, MOUNT
    FOIL, BOX, STORAGE, MOUNT
  • 14
    7518555 BOLT
    BOLT
  • 15
    7555976 WASHER, FLAT
    WASHER, FLAT
