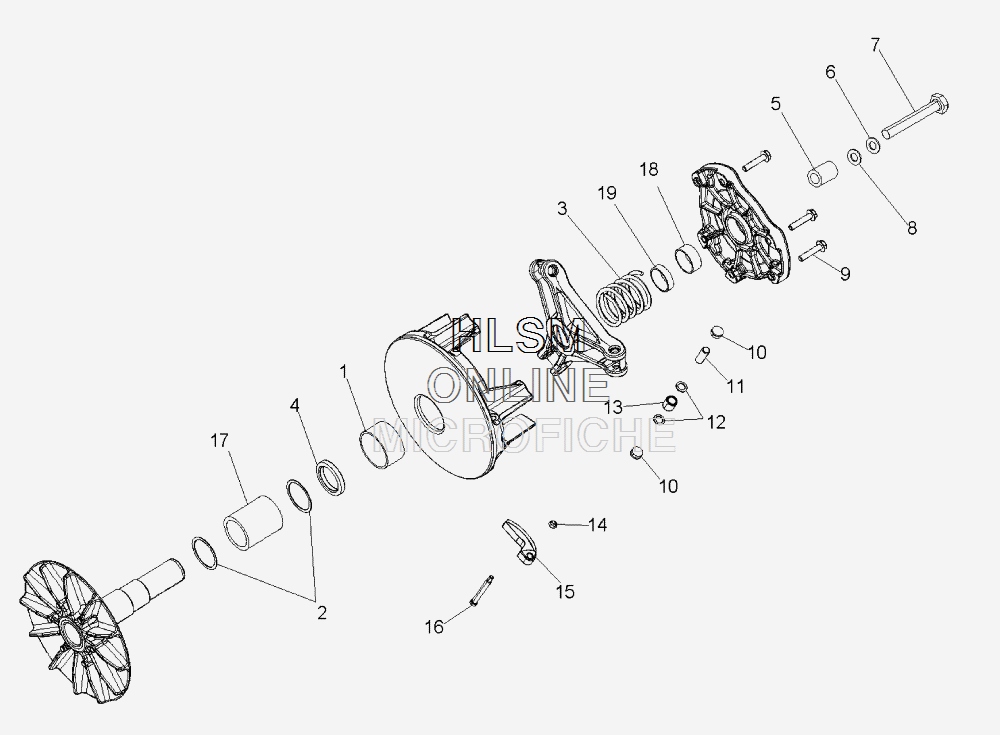

DRIVE TRAIN- PRIMARY CLUTCH для Polaris RANGER 4X4 800 EFI SUNSET RED [R10TH76AZ] - 2010 года выпуска
-
№АртикулНазвание
-
91322896 ASM., DRIVE CLUTCH (INCL. ALL LESS 3,5-8,15)ASM., DRIVE CLUTCH (INCL. ALL LESS 3,5-8,15)
-
13514492 BEARINGBEARING
-
27556335 WASHER, CLUTCHWASHER, CLUTCH
-
37043594 SPRING, CLUTCH, 29-129SPRING, CLUTCH, 29-129
-
45632060 SPACER, CLUTCHSPACER, CLUTCH
-
55430261 BUSHINGBUSHING
-
67575202 WASHER, INTERLOCKWASHER, INTERLOCK
-
77518197 BOLTBOLT
-
85210748 WASHER, FLATWASHER, FLAT
-
97518062 SCREWSCREW
-
105431936 BUTTON, CLUTCHBUTTON, CLUTCH
-
115020422 PIN, ROLLERPIN, ROLLER
-
125438247 WASHER, CLUTCH, SPIDER ROLLERWASHER, CLUTCH, SPIDER ROLLER
-
131321622 ASM., ROLLER AND BUSHINGASM., ROLLER AND BUSHING
-
147541906 NUT, FLEXLOCNUT, FLEXLOC
-
155632337 WEIGHT, SHIFT, 23-62G, PMWEIGHT, SHIFT, 23-62G, PM
-
167512266 BOLT, SHOULDERBOLT, SHOULDER
-
171521185 ASM., BEARINGASM., BEARING
-
183576510 COVER, BEARINGCOVER, BEARING
-
195438403 SPACER, CLUTCH LIMITERSPACER, CLUTCH LIMITER
