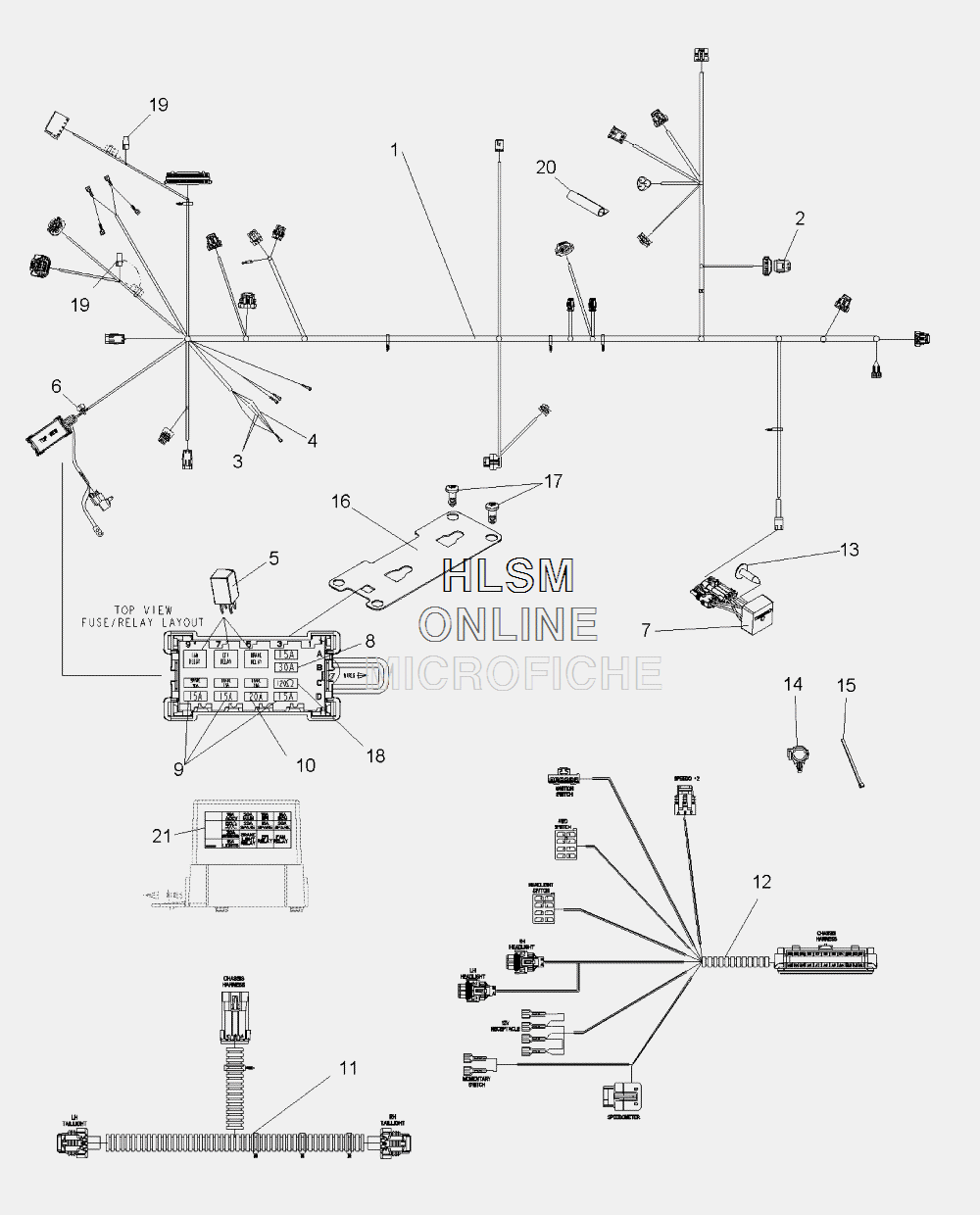

WIRE HARNESSES 2 для Polaris RANGER 4X4 800 EFI NBU [R10TH76AH] - 2010 года выпуска`
-
№АртикулНазвание
-
12411394 HARNESS, CHASSISHARNESS, CHASSIS
-
12875542 KIT, HARNESS, T-BAPKIT, HARNESS, T-BAP
-
12875543 KIT, HARNESS, ENGINE TEMPKIT, HARNESS, ENGINE TEMP
-
12203801 KIT, HARNESS, TPSKIT, HARNESS, TPS
-
24010924 RESISTOR, MODULERESISTOR, MODULE
-
32202607 KIT, FUSIBLE LINK, .8MMKIT, FUSIBLE LINK, .8MM
-
42202670 KIT, FUSIBLE LINK, 1MMKIT, FUSIBLE LINK, 1MM
-
54011283 RELAY, SEALEDRELAY, SEALED
-
62411086 BREAKER, CIRCUIT, 15 AMPBREAKER, CIRCUIT, 15 AMP
-
74012193 RELAY, SOLID STATE, 9 AMPRELAY, SOLID STATE, 9 AMP
-
82434015 FUSE, 30 AMP, MAINFUSE, 30 AMP, MAIN
-
94010859 FUSE, 15 AMPFUSE, 15 AMP
-
102434017 FUSE, 20 AMP, PARKFUSE, 20 AMP, PARK
-
112411387 HARNESS, BOXHARNESS, BOX
-
122411386 HARNESS, DASHHARNESS, DASH
-
137518375 SCREWSCREW
-
144020149 CLIP, ROSEBUDCLIP, ROSEBUD
-
157080138 CABLE TIECABLE TIE
-
165251956 PLATE, FUSE MOUNTPLATE, FUSE MOUNT
-
177512026 SCREWSCREW
-
184012440 RESISTOR, 120 OHMRESISTOR, 120 OHM
-
194011998 RELAY, MICRO, SPDT, SEALEDRELAY, MICRO, SPDT, SEALED
-
205813570 FOIL, HARNESSFOIL, HARNESS
-
217175785 DECAL, FUSE/RELAY BLOCKDECAL, FUSE/RELAY BLOCK
