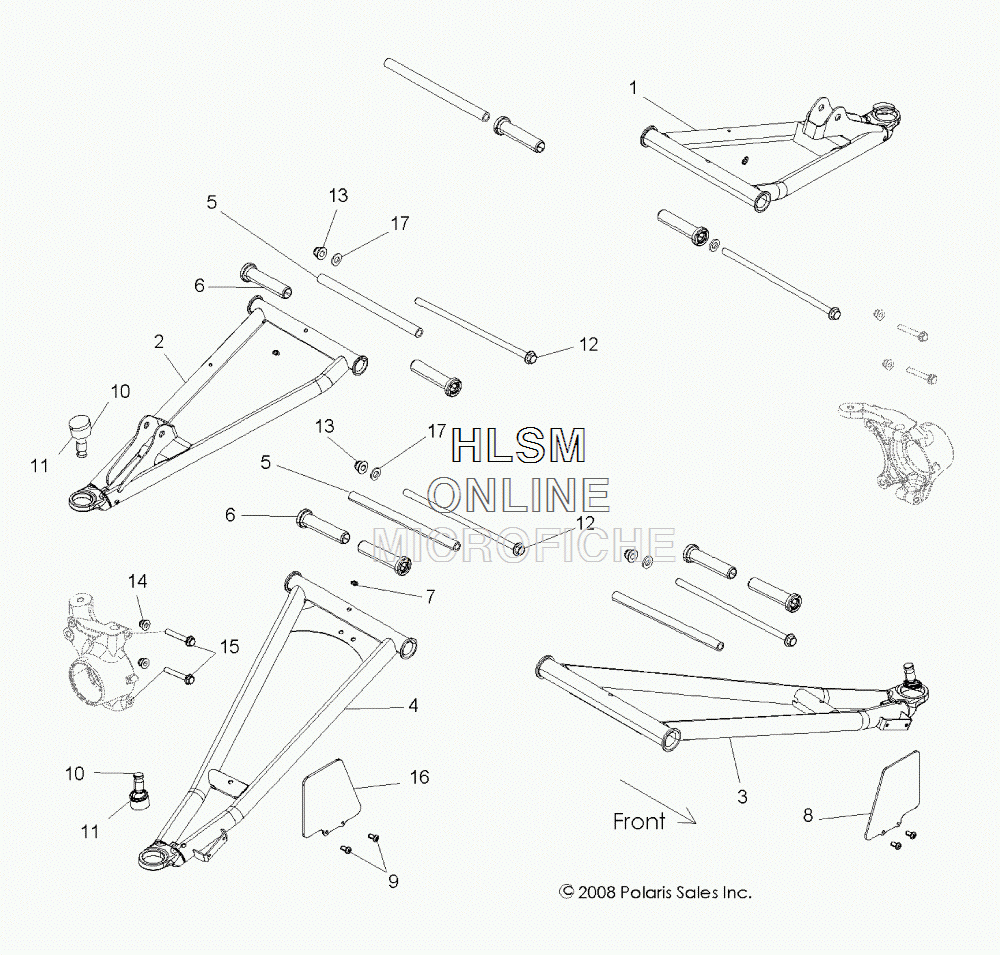

CONTROL ARMS - FRONT для Polaris RANGER RZR (S) 800 EFI INTL [R09VH76FX] - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    1016477-458 ARM, CONTROL, UPPER, FRONT, LEFT HAND (MATTE BLACK)
    ARM, CONTROL, UPPER, FRONT, LEFT HAND (MATTE BLACK)
  • 2
    1016478-458 ARM, CONTROL, UPPER, FRONT, RIGHT HAND (MATTE BLACK)
    ARM, CONTROL, UPPER, FRONT, RIGHT HAND (MATTE BLACK)
  • 3
    1016479-458 ARM, CONTROL, LOWER, FRONT, LEFT HAND (MATTE BLACK)
    ARM, CONTROL, LOWER, FRONT, LEFT HAND (MATTE BLACK)
  • 4
    1016480-458 ARM, CONTROL, LOWER, FRONT, RIGHT HAND (MATTE BLACK)
    ARM, CONTROL, LOWER, FRONT, RIGHT HAND (MATTE BLACK)
  • 5
    5136324 TUBE, PIVOT
    TUBE, PIVOT
  • 6
    5436973 BUSHING, A-ARM, LONG
    BUSHING, A-ARM, LONG
  • 7
    7080433 FITTING, LUBRICATION
    FITTING, LUBRICATION
  • 8
    5436620-070 SHIELD, CV, FRONT, LEFT HAND (BLACK)
    SHIELD, CV, FRONT, LEFT HAND (BLACK)
  • 9
    7512084 SCREW
    SCREW
  • 10
    7081505 JOINT, BALL (BUILT 4/10/09 AND BEFORE)
    JOINT, BALL (BUILT 4/10/09 AND BEFORE)
  • 10
    7081580 JOINT, BALL (BUILT 4/11/09 AND AFTER)
    JOINT, BALL (BUILT 4/11/09 AND AFTER)
  • 11
    7710533 RING, RETAINING
    RING, RETAINING
  • 12
    7519087 SCREW, FLANGED
    SCREW, FLANGED
  • 13
    7547333 NUT, FLANGED
    NUT, FLANGED
  • 14
    7547405 NUT, NYLOK
    NUT, NYLOK
  • 15
    7516733 SCREW, FLANGE
    SCREW, FLANGE
  • 16
    5437246-070 SHIELD, CV, FRONT, RIGHT HAND (BLACK)
    SHIELD, CV, FRONT, RIGHT HAND (BLACK)
  • 17
    7556153 WASHER
    WASHER
