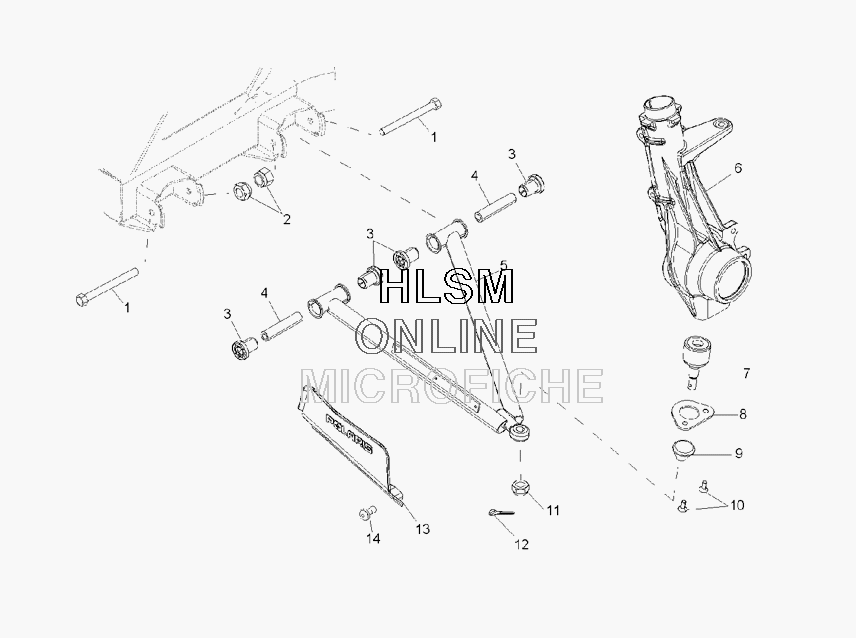

A-ARMS- STRUT MOUNTING для Polaris RANGER 6X6 700 EFI E.GREEN [R09RF68AF] - 2009 года выпуска`
-
№АртикулНазвание
-
17518560 BOLT-M10X1.25X95,HXFLG-OLIVE DBOLT-M10X1.25X95,HXFLG-OLIVE D
-
27547333 NUT-M10X1.25,FLG,NYLOC-OLIVE DNUT-M10X1.25,FLG,NYLOC-OLIVE D
-
35434548 BUSHING-A-ARM-SHORT, BLACKBUSHING-A-ARM-SHORT, BLACK
-
45335448 TUBE-PIVOT,73.96MMTUBE-PIVOT,73.96MM
-
51542125-067 A-FRAME, LEFT HAND, BLACKA-FRAME, LEFT HAND, BLACK
-
51542126-067 A-FRAME, RIGHT HAND, BLACKA-FRAME, RIGHT HAND, BLACK
-
77061153 BALLJOINT-GREASELESS,STRUTBALLJOINT-GREASELESS,STRUT
-
85211121 BRKT, BALL JOINT-BRKT, BALL JOINT-
-
95412658 BOOT-BALLJOINT,GREASELESS,STRTBOOT-BALLJOINT,GREASELESS,STRT
-
107512284 BOLT, SOCKETBOLT, SOCKET
-
117542438 NUT, CASTLENUT, CASTLE
-
127661203 PIN,COTTERPIN,COTTER
-
135435028-070 SHIELD-CV,FRONT,BASIC, LEFT HAND, BLACK-SHIELD-CV,FRONT,BASIC, LEFT HAND, BLACK-
-
135435029-070 SHIELD-CV,FRONT,BASIC, RIGHT HAND, BLACK-SHIELD-CV,FRONT,BASIC, RIGHT HAND, BLACK-
-
147512084 SCREWSCREW
