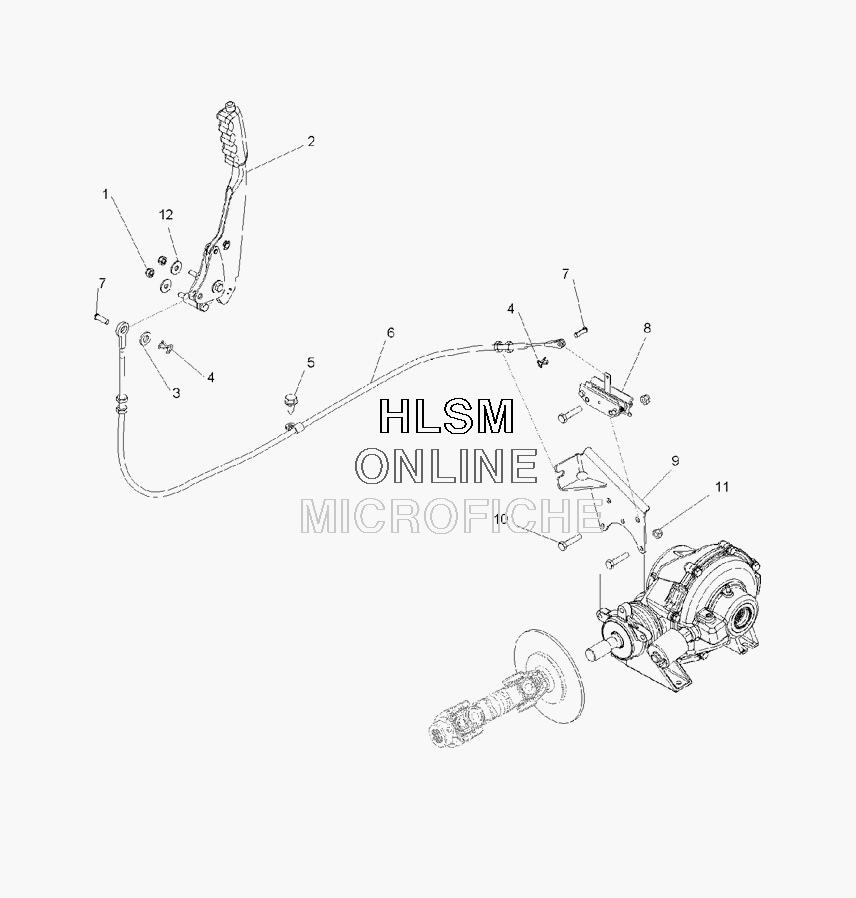

PARK BRAKE ASM. для Polaris RANGER 4X4 700 EFI CREW C.CANDY [R09WH68AC] - 2009 года выпуска`
-
№АртикулНазвание
-
17547144 NUT, NYLOK M8X1.25NUT, NYLOK M8X1.25
-
21911260 ASM-LEVER, PARK BRAKEASM-LEVER, PARK BRAKE
-
37558302 WASHER, WROUGHTWASHER, WROUGHT
-
47661140 PIN-CLIP, 14MMPIN-CLIP, 14MM
-
57517386 SCREWSCREW
-
67081463 CABLE-BRAKE, PARKINGCABLE-BRAKE, PARKING
-
77661830 PIN, CLEVISPIN, CLEVIS
-
81911382 ASM-CALIPER, PARK BRAKE (MECH)ASM-CALIPER, PARK BRAKE (MECH)
-
82203147 KIT-BRAKE PAD F/M, P/BKIT-BRAKE PAD F/M, P/B
-
82203148 KIT-BRAKE PAD AND SHIMS, P/BKIT-BRAKE PAD AND SHIMS, P/B
-
82203254 KIT MOUNT, RANGER P/BKIT MOUNT, RANGER P/B
-
82203255 KIT, P/B HARDWAREKIT, P/B HARDWARE
-
95250390 BRKT-PARK BRAKE, CAL, MNTBRKT-PARK BRAKE, CAL, MNT
-
107518342 BOLT-5/16-18X1-1/2 HXFLNG GR5BOLT-5/16-18X1-1/2 HXFLNG GR5
-
117542343 NUT, FLANGENUT, FLANGE
-
127556459 WASHER-M8 FW STL 2Y DIN 9021BWASHER-M8 FW STL 2Y DIN 9021B
