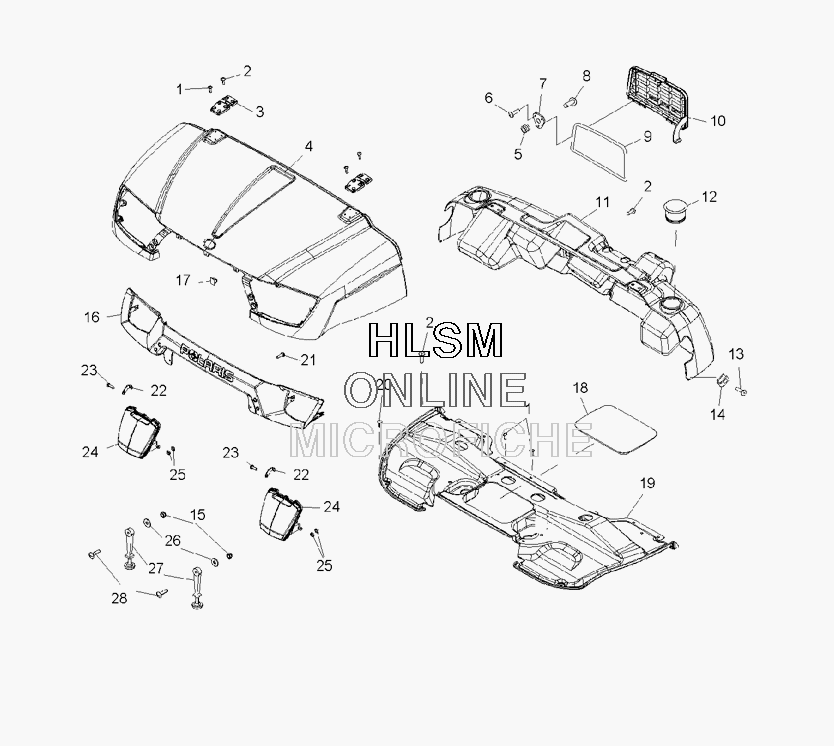

HOOD AND DASHBOARD для Polaris RANGER 700 EFI CREW SILVER [R08WH68AK] - 2008 года выпуска
-
№АртикулНазвание
-
17518158 SCR-#14X1 HI/LO-PH-PN TRX-MSCR-#14X1 HI/LO-PH-PN TRX-M
-
27517685 SCREWSCREW
-
35434057 HINGE, ASM.HINGE, ASM.
-
45436264-402 HOOD-PAINTED, T.SILVERHOOD-PAINTED, T.SILVER
-
45437456-455 HOOD-RANGER, DIP, NBUHOOD-RANGER, DIP, NBU
-
55412504 GROMMET-RUBBER, MOUNT, 25''GROMMET-RUBBER, MOUNT, 25''
-
67512026 SCREWSCREW
-
75910119 PLATE-CATCHPLATE-CATCH
-
85246693 PIN-CATCHPIN-CATCH
-
95521667 SEAL-GLOVEBOXSEAL-GLOVEBOX
-
105435613-402 COVER-GLVBX, RANGER, PNTD.T.SLVRCOVER-GLVBX, RANGER, PNTD.T.SLVR
-
115437143-402 DASH-PAINTED, T.SILVERDASH-PAINTED, T.SILVER
-
125434763 HOLDER-CUPHOLDER-CUP
-
137517561 SCREWSCREW
-
147670157 NUT-#10, U-TYPE, AB (.025.150)NUT-#10, U-TYPE, AB (.025.150)
-
157542122 NUT-NYLOKNUT-NYLOK
-
165435728-070 GRILLE-HOOD, BLACKGRILLE-HOOD, BLACK
-
177670134 CLIP-WIRE, ADHESIVE BACK, 1/2''CLIP-WIRE, ADHESIVE BACK, 1/2''
-
185413002 PLUG-DRAIN, BOXPLUG-DRAIN, BOX
-
195437106 LINER-HOODLINER-HOOD
-
207670090 CLIP, PLASTIC DART, NYLONCLIP, PLASTIC DART, NYLON
-
217518238 SCR-10X5/8-HI/LO, PN-T25, TRX-MSCR-10X5/8-HI/LO, PN-T25, TRX-M
-
225248655 BRKT-HEADLIGHTBRKT-HEADLIGHT
-
237512084 SCREWSCREW
-
242411010 ASM-HEADLIGHT, UTILITY, 50 WATTASM-HEADLIGHT, UTILITY, 50 WATT
-
244010253 BULB-HEADLIGHT, 50 WATTBULB-HEADLIGHT, 50 WATT
-
255410163 O RINGO RING
-
267555859 WASHER, FLATWASHER, FLAT
-
275410370 STRAP, HOOD LATCHSTRAP, HOOD LATCH
-
287517230 SCREWSCREW
