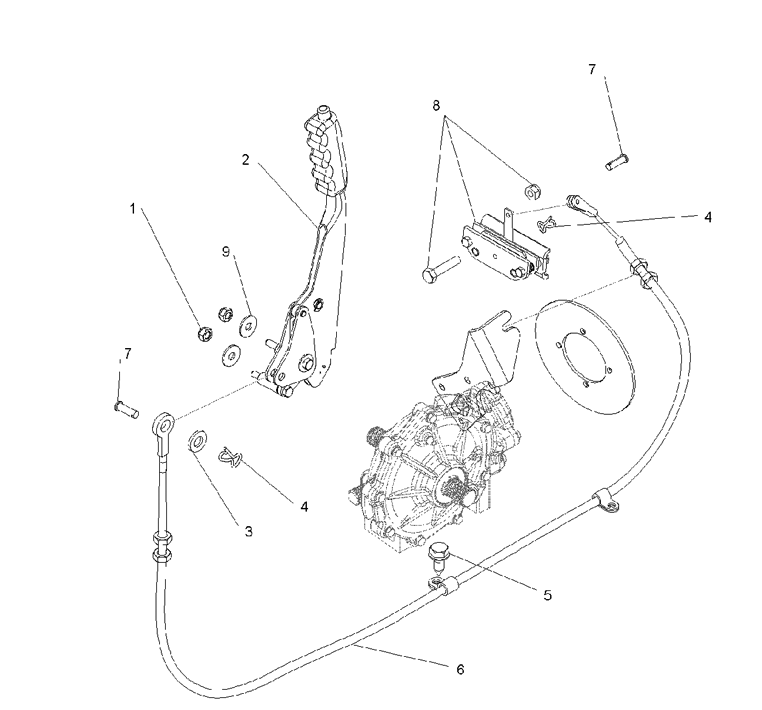

PARK BRAKE ASM для Polaris RANGER 700 EFI 6X6 EB GREEN [R08RF68AF] - 2008 года выпуска
-
№АртикулНазвание
-
17547144 NUT,NYLOK M8X1.25NUT,NYLOK M8X1.25
-
21911260 ASM-LEVER,PARK BRAKEASM-LEVER,PARK BRAKE
-
37558302 WASHER,WROUGHTWASHER,WROUGHT
-
47661140 PIN-CLIP,14MMPIN-CLIP,14MM
-
57517386 SCREWSCREW
-
67081292 CABLE-BRAKE,PARKING,6X6,700CABLE-BRAKE,PARKING,6X6,700
-
77661830 PIN, CLEVISPIN, CLEVIS
-
81910833 ASM-CALIPER,PARK BRAKEASM-CALIPER,PARK BRAKE
-
82203147 KIT-BRAKE PAD F/M, P/BKIT-BRAKE PAD F/M, P/B
-
82203148 KIT-BRAKE PAD AND SHIMS, P/BKIT-BRAKE PAD AND SHIMS, P/B
-
82203254 KIT MOUNT,RANGER P/BKIT MOUNT,RANGER P/B
-
82203255 KIT, P/B HARDWAREKIT, P/B HARDWARE
-
82203710 KIT-SPRING,P/B,MECH,CLPRKIT-SPRING,P/B,MECH,CLPR
-
97556459 WASHER-M8 FW STL 2Y DIN 9021BWASHER-M8 FW STL 2Y DIN 9021B
