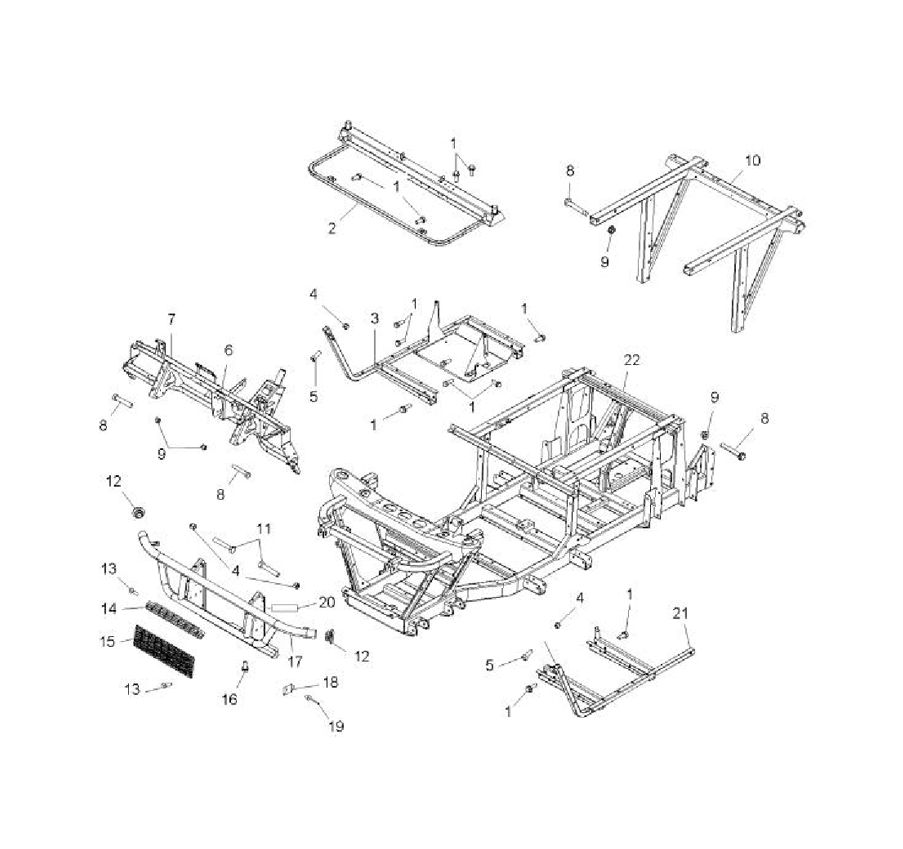

CHASSIS AND BODY для Polaris RANGER 700 EFI 6X6 EB GREEN [R07RF68AF] - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    7515399 SCREW
    SCREW
  • 3
    1015378-067 WELD-FLOOR SUPT, RIGHT HAND, BLACK
    WELD-FLOOR SUPT, RIGHT HAND, BLACK
  • 4
    7547180 NUT-FLANGED,3/8-16 NYLON-Z
    NUT-FLANGED,3/8-16 NYLON-Z
  • 5
    7515522 BOLT
    BOLT
  • 6
    5521131 TRIM,EDGE,6FT, BLACK
    TRIM,EDGE,6FT, BLACK
  • 7
    1015828-067 WELD-CAB SUPPORT,FRT,BLK
    WELD-CAB SUPPORT,FRT,BLK
  • 8
    7515415 SCREW
    SCREW
  • 9
    7542439 NUT,NYLOK
    NUT,NYLOK
  • 10
    1014982-067 FRAME,EXT, BLACK
    FRAME,EXT, BLACK
  • 11
    7518278 SCR-3/8-16X2 FLG HX GR5 Z
    SCR-3/8-16X2 FLG HX GR5 Z
  • 12
    5434191 CAP-BUMPER
    CAP-BUMPER
  • 13
    7517916 SCR-1/4-20X3/4-TR/TX/TAP-M
    SCR-1/4-20X3/4-TR/TX/TAP-M
  • 14
    5248846-067 PLATE-GRILLE,BUMPER,TOP, BLACK
    PLATE-GRILLE,BUMPER,TOP, BLACK
  • 15
    5248845-067 PLATE-GRILLE,BUMPER,UPPER, BLACK
    PLATE-GRILLE,BUMPER,UPPER, BLACK
  • 16
    7517854 SCR-3/8-16X1-P30-SPEC-Y
    SCR-3/8-16X1-P30-SPEC-Y
  • 17
    1014991-067 WELD-BUMPER,BLK (IF BUILT BEFORE 10/01/06)
    WELD-BUMPER,BLK (IF BUILT BEFORE 10/01/06)
  • 17
    1015909-067 WELD-BUMPER, BLACK (IF BUILT AFTER 10/01/06)
    WELD-BUMPER, BLACK (IF BUILT AFTER 10/01/06)
  • 18
    5430733 CUP, HOOD LATCH
    CUP, HOOD LATCH
  • 19
    7621334 RIVET
    RIVET
  • 20
    7079924 DECAL-REFLECT.2.88,AMBER
    DECAL-REFLECT.2.88,AMBER
  • 21
    1015068-067 FLOOR SUPPORT, LEFT HAND, BLACK
    FLOOR SUPPORT, LEFT HAND, BLACK
  • 22
    1015722-067 WELD-MAIN FRAME, 6X6, BLACK
    WELD-MAIN FRAME, 6X6, BLACK
