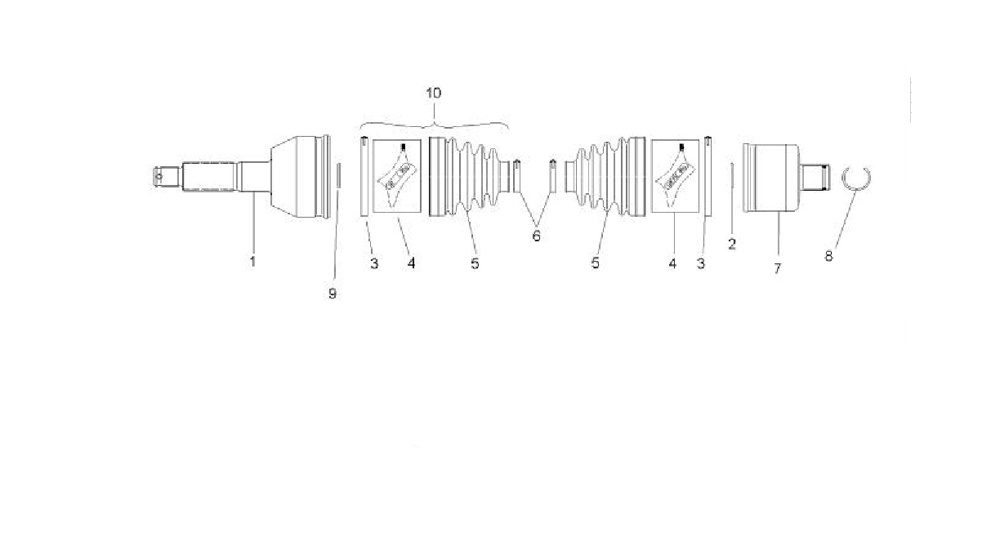

SHAFT DRIVE - REAR (LEFT/RIGHT) для Polaris RANGER 500 EFI 4X4 RED [R07RH50AR] - 2007 года выпуска
-
№АртикулНазвание
-
-1332284 DRIVESHAFT ASM,REAR, LEFT HAND (INCL. 1-8) (IF BUILT BEFORE 8/28/06)DRIVESHAFT ASM,REAR, LEFT HAND (INCL. 1-8) (IF BUILT BEFORE 8/28/06)
-
-1332285 DRIVESHAFT ASM,REAR, RIGHT HAND (INCL. 1-8) (IF BUILT BEFORE 8/28/06)DRIVESHAFT ASM,REAR, RIGHT HAND (INCL. 1-8) (IF BUILT BEFORE 8/28/06)
-
-1332502 ASM-DRIVESHAFT,REAR, LEFT HAND(INCL. 1-8) (IF BUILT AFTER 8/28/06)ASM-DRIVESHAFT,REAR, LEFT HAND(INCL. 1-8) (IF BUILT AFTER 8/28/06)
-
-1332503 ASM-DRIVESHAFT,REAR, RIGHT HAND (INCL. 1-8) (IF BUILT AFTER 8/28/06)ASM-DRIVESHAFT,REAR, RIGHT HAND (INCL. 1-8) (IF BUILT AFTER 8/28/06)
-
11590415 CV-JOINT, REARCV-JOINT, REAR
-
27710505 RING,RETAININGRING,RETAINING
-
31350044 CLAMP-LARGE,BTBCLAMP-LARGE,BTB
-
41350047 GREASE-50G BTBGREASE-50G BTB
-
51332433 KIT-BOOT, REARKIT-BOOT, REAR
-
61350043 CLAMP-SMALL,BTBCLAMP-SMALL,BTB
-
71590407 JOINT-PLUNGING, LHJOINT-PLUNGING, LH
-
71590408 JOINT-PLUNGING, RHJOINT-PLUNGING, RH
-
87710578 SPRING-RINGSPRING-RING
-
97710576 RING-RETAINING, SHAFTRING-RETAINING, SHAFT
-
102203108 KIT-BOOT, REAR (INCL. 3-6)KIT-BOOT, REAR (INCL. 3-6)
