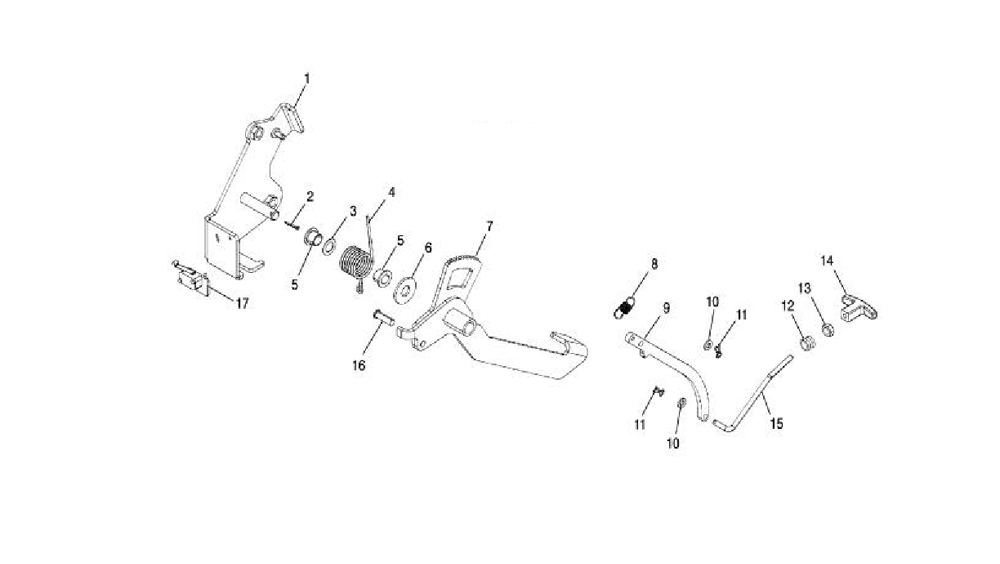

BRAKE - PARK PEDAL для Polaris RANGER 500 EFI 4X4 EB GREEN [R07RH50AF] - 2007 года выпуска

  • №
    Артикул
    Название
  • -
    1910816 PARK BRAKE ASM (INCL. 1-17)
    PARK BRAKE ASM (INCL. 1-17)
  • 1
    1014724-067 PARK BRAKE ASM
    PARK BRAKE ASM
  • 2
    7661203 PIN,COTTER
    PIN,COTTER
  • 3
    7555919 WASHER
    WASHER
  • 4
    7043073 SPRING-LEVER RETURN
    SPRING-LEVER RETURN
  • 5
    5431107 BUSHING, PEDAL PIVOT
    BUSHING, PEDAL PIVOT
  • 6
    7555804 WASHER
    WASHER
  • 7
    1014723-067 COULD NOT FIND
    COULD NOT FIND
  • 8
    7042057 SPRING-CATCH,PARKING BRAKE
    SPRING-CATCH,PARKING BRAKE
  • 9
    5248150 PARK BRAKE ASM
    PARK BRAKE ASM
  • 10
    7555827 WASHER
    WASHER
  • 11
    7661140 PIN-CLIP,14MM
    PIN-CLIP,14MM
  • 12
    5410437 GROMMET
    GROMMET
  • 13
    7546701 NUT
    NUT
  • 14
    7081013 HANDLE-PARKING BRAKE
    HANDLE-PARKING BRAKE
  • 15
    5248157 ROD-HANDLE,PARK RELEASE
    ROD-HANDLE,PARK RELEASE
  • 16
    7661106 PIN-5/16X1 CLEVIS
    PIN-5/16X1 CLEVIS
  • 17
    4011093 SWITCH-PARK BRAKE SENSOR
    SWITCH-PARK BRAKE SENSOR
