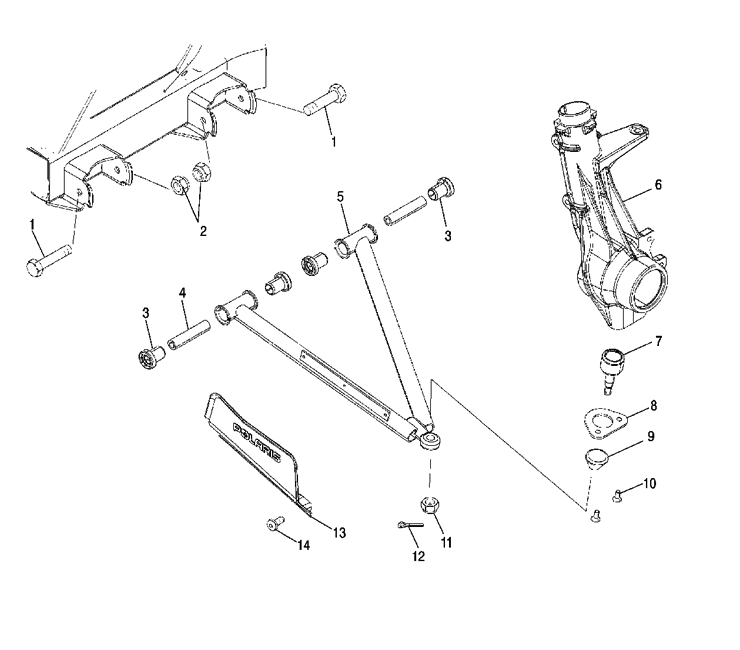

SUSPENSION - FRONT A - ARM W/ TIE RODS для Polaris RANGER XP 4X4 700 XP BROWNING [R06RD68AF] - 2006 года выпуска
-
№АртикулНазвание
-
17518403 SCREW, HEX FLANGE (IF BUILT BEFORE 1/1/06)SCREW, HEX FLANGE (IF BUILT BEFORE 1/1/06)
-
17515472 BOLT (IF BUILT AFTER 1/1/06)BOLT (IF BUILT AFTER 1/1/06)
-
27542451 NUT, NYLOK (IF BUILT BEFORE 1/1/06)NUT, NYLOK (IF BUILT BEFORE 1/1/06)
-
27542439 NUT, NYLOK (IF BUILT AFTER 1/1/06)NUT, NYLOK (IF BUILT AFTER 1/1/06)
-
35434548 BUSHING-A-ARM-SHORT, BLACKBUSHING-A-ARM-SHORT, BLACK
-
45020826 SHAFT, A-ARM,SHORTSHAFT, A-ARM,SHORT
-
51542125-067 A-FRAME, LEFT HAND, BLACKA-FRAME, LEFT HAND, BLACK
-
51542126-067 A-FRAME, RIGHT HAND, BLACKA-FRAME, RIGHT HAND, BLACK
-
61820899 ASM., HUBSTRUT, LEFT HANDASM., HUBSTRUT, LEFT HAND
-
61820901 ASM., HUBSTRUT, RIGHT HANDASM., HUBSTRUT, RIGHT HAND
-
77080927 BALL-JOINT, 52 DEGBALL-JOINT, 52 DEG
-
85211121 BRKT, BALL JOINTBRKT, BALL JOINT
-
95410548 BOOT, RUBBERBOOT, RUBBER
-
107512284 BOLT, SOCKETBOLT, SOCKET
-
117542438 NUT, CASTLENUT, CASTLE
-
127661203 PIN, COTTERPIN, COTTER
-
135435028-070 SHIELD-CV, FRONT,BASIC, LEFT HAND, BLACKSHIELD-CV, FRONT,BASIC, LEFT HAND, BLACK
-
135435029-070 SHIELD-CV, FRONT,BASIC, RIGHT HAND, BLACKSHIELD-CV, FRONT,BASIC, RIGHT HAND, BLACK
-
147512084 SCREWSCREW
