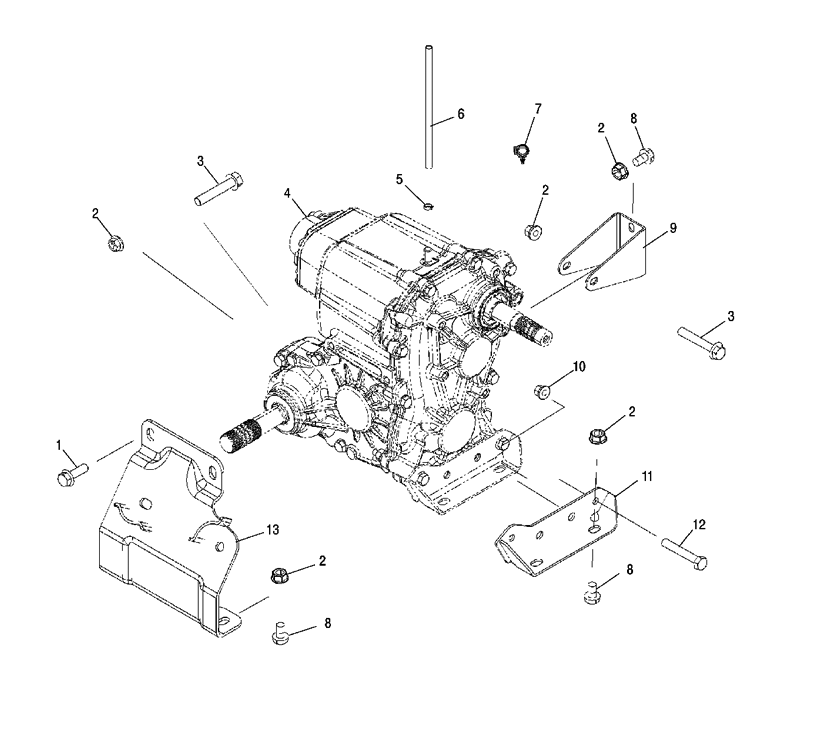

MOUNTING - TRANSMISSION для Polaris RANGER 500 4X4 EFI RED [R06RD50AC] - 2006 года выпуска
-
№АртикулНазвание
-
17517632 SCREWSCREW
-
27547263 NUT-3/8-24 NYLOKNUT-3/8-24 NYLOK
-
37518415 BOLT-3/8-24X23/4, HEX FLANGE, 65BOLT-3/8-24X23/4, HEX FLANGE, 65
-
57080307 CLAMP, HOSECLAMP, HOSE
-
68450003-1525 LINE, FUEL, 1/4 ID(1525 CM.)LINE, FUEL, 1/4 ID(1525 CM.)
-
74020139 CLIP, ROSEBUDCLIP, ROSEBUD
-
87517289 SCREWSCREW
-
95248198 BRKT-TRANNY MNT, REARBRKT-TRANNY MNT, REAR
-
103234043 NUTNUT
-
113234044 BRACKETBRACKET
-
123234042 SCREWSCREW
-
131015065-067 ENG/TRANS MNT, BLACKENG/TRANS MNT, BLACK
